- SWE TRAIL SUPERTRAK - S910161
CHASSIS AND SEAT SuperTrak (4919291929001A)

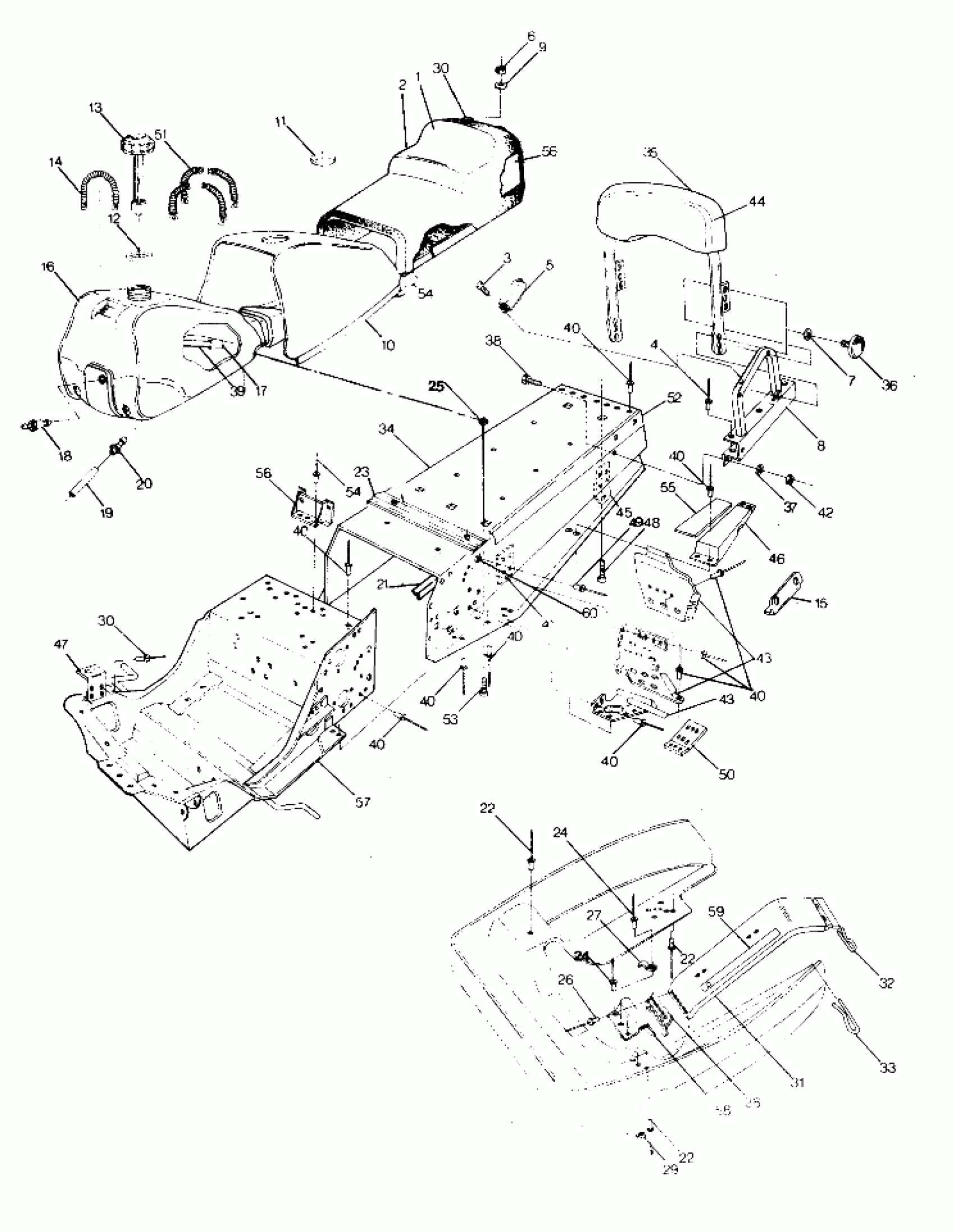

Polaris SWE TRAIL SUPERTRAK - S910161 CHASSIS AND SEAT SuperTrak (4919291929001A) Diagram
#
1
SEAT,(SUPERTRAK) Substituted by 2200743 (Incl. 2)
2681448
Unavailable
2
COVER, SEAT Substituted by 2200743
2681444
Unavailable
3
SCREW(10)
7510504
$6.76
4
RIVET(50)
7621429
$1.49
5
GRIP, HAND Substituted by 5433383
5431015
$19.68
6
NUT-LOCK(10)
7542122
$1.49
7
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
8
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
8
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
9
WASHER(10)
7558221
$2.39
10
COVER,TANK
2681442
Unavailable
11
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
CAP,GAS(HI.CAP.)
2511184
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
WEAR STRIP
5430786
Unavailable
16
TANK, GAS Substituted by 2511199
5431130
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
BRACE,TUNNEL REINF.
5222412
Unavailable
22
RIVET, BLIND(50)
7621467
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
23
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
24
RIVET(50)
7621452
$1.49
24
RIVET(50)
7621452
$1.49
25
SPEED NUT(10)
7670021
$6.99
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
BUCKLE&STRAP
2681291
Unavailable
30
BUCKLE&STRAP
2681291
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL(SUPERTRAK)'90
1011775
Unavailable
35
BACKREST ASM. (Incl. 62)
2681449
Unavailable
36
KNOB, ADJUSTMENT Substituted by 2670130
7030007-067
Unavailable
37
WASHER,WROUGHT(10)
7558302
$1.59
38
BOLT(10)
7512325
$2.39
39
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
41
BRKT. Substituted by 5220542-067
5220542
Unavailable
42
NUT-5/16-18 NYLOK-Y
7542324
$1.49
43
FOOTREST ASM,LH
2200250
Unavailable
43
FOOTREST ASM,RH
2200254
Unavailable
43
FOOTREST ASM,LH
2200250
Unavailable
43
FOOTREST ASM,RH
2200254
Unavailable
44
COVER, BACKREST
2681450
Unavailable
45
PAD,LH,R.SUSP.MTG. Substituted by 1011727-067
1011727
Unavailable
45
PAD,RH,R.SUSP.MTG.01 Substituted by 1011728-067
1011728
Unavailable
46
FOOTREST,LH REAR
5220893
Unavailable
46
FOOTREST,RH REAR
5220894
$32.15
47
SUPPORT,MUFFLER,FRONT [No Longer Available]
5222575
Unavailable
48
SCREW(10)
7512116
Unavailable
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
SPRING, TANK
7042033
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
BOLT(10)
7512193
$2.39
54
HARNESS-TAILLIGHT
2460237
Unavailable
54
HARNESS-TAILLIGHT
2460237
Unavailable
55
PAD,LH FOOT SAFETY
5830007
$7.89
55
PAD,RH FOOT SAFETY
5830008
$4.92
56
BOX,TOOL,(2-UP SEAT) Substituted by 5431345
5430925
Unavailable
56
BOX,TOOL,(2-UP SEAT) Substituted by 5431345
5430925
Unavailable
57
BULKHEAD, (S'TRAK) Substituted by 1011813-067
1011813
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
60
HOSE,EXH.INLET [No Longer Available]
5411039
Unavailable
