CARBURETOR SuperTrak (4919291929032A)

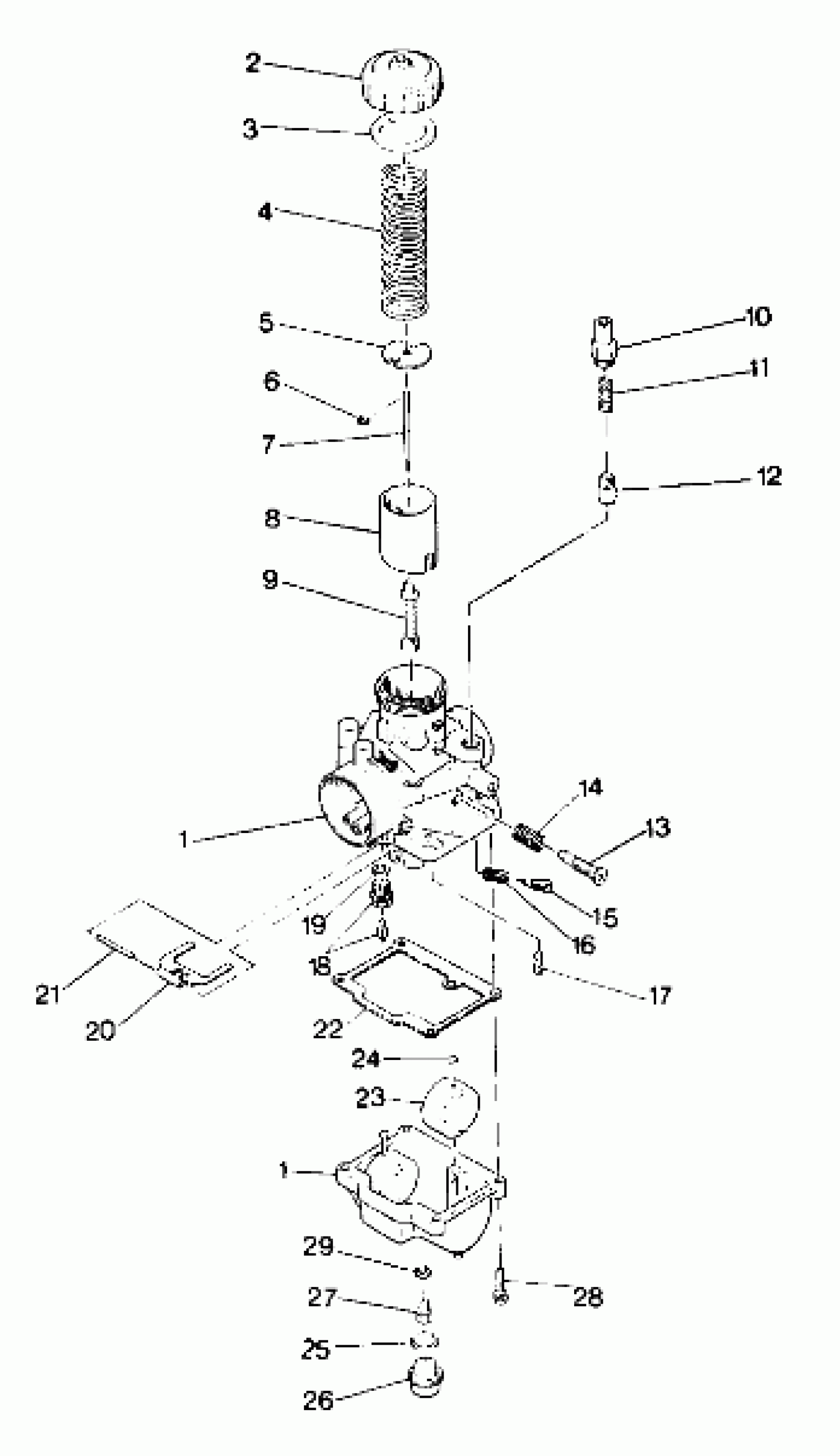

Polaris SWE TRAIL SUPERTRAK - S910161 CARBURETOR SuperTrak (4919291929032A) Diagram
#
Description
Price
1
CARB. ASM. (Incl. 2-29)
3130410
Unavailable
1
CARB. ASM. (Incl. 2-29)
3130410
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE
3130027
$9.70
6
E RING,(10) Substituted by 3130508
3130230
Unavailable
7
JET NEEDLE
3130329
Unavailable
8
VALVE,THROTTLE,(3.0)
3130372
$52.60
9
JET NEEDLE
3130160
$36.41
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#40(10)
3130067
$10.99
18
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
19
PACKING(10)
3130017
$4.03
20
ARM,FLOAT
3130018
$24.27
21
PIN, FLOAT Substituted by 3130361
3130235
$8.89
22
PACKING,FLOAT CHAMBER
3130020
$16.17
23
FLOAT ASM. Substituted by 3130430
3130032
Unavailable
24
CAP,(10) Substituted by 3130237
3130022
Unavailable
25
O RING
3130239
Unavailable
26
BOLT,BANJO Substituted by 3130321
3082471
Unavailable
27
JET #200 MAIN Substituted by 3130123
3082848
Unavailable
28
SCREW & WASHER(10)
3130025
$3.19
29
WASHER (10)
3130014
$1.59
