- SWE TRAIL SUPERTRAK - S910161
BRAKE AND CHAINCASE SuperTrak (4919291929011A)

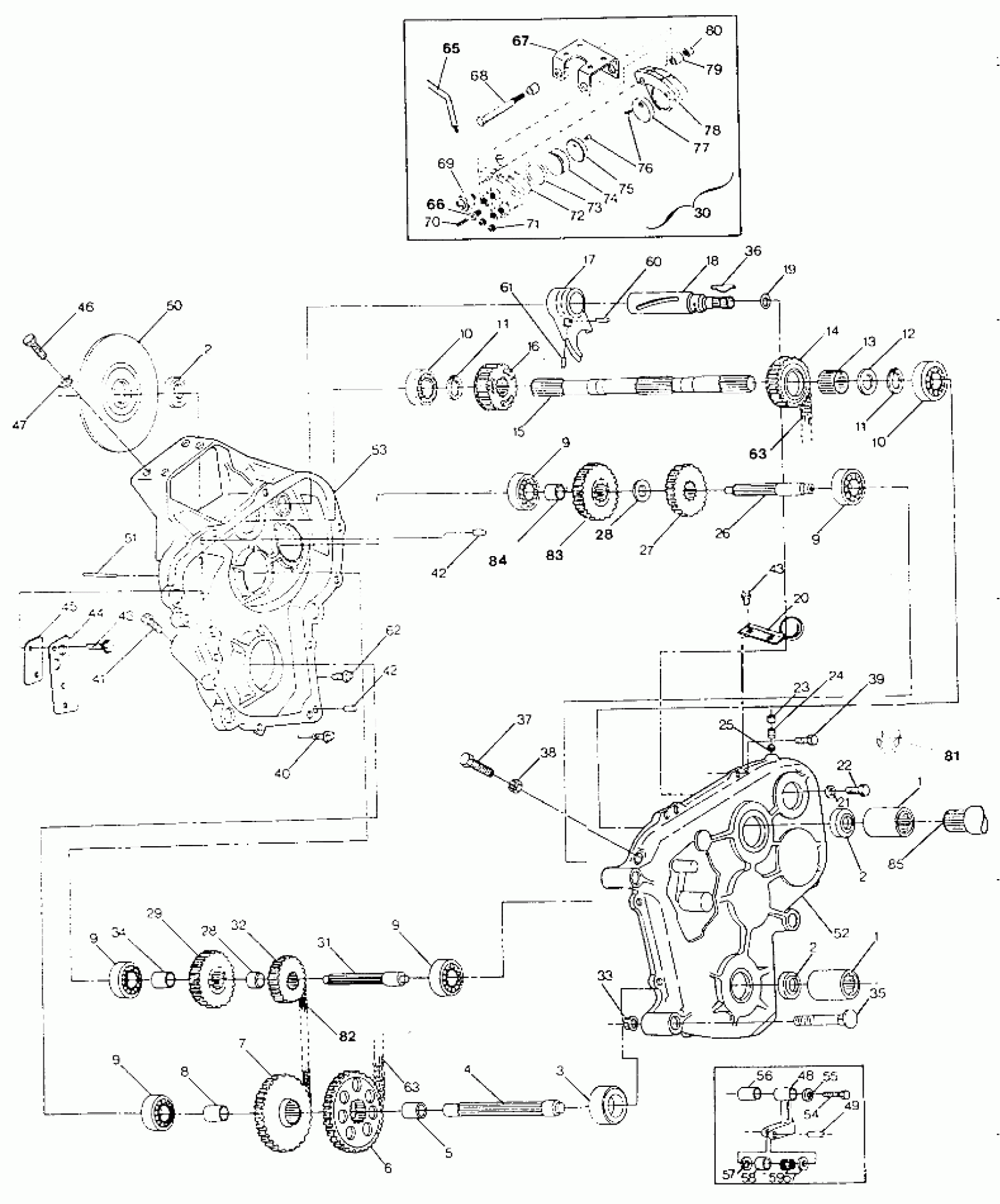

Polaris SWE TRAIL SUPERTRAK - S910161 BRAKE AND CHAINCASE SuperTrak (4919291929011A) Diagram
#
1
COUPLER,SHAFT (O/P)
5020449
Unavailable
1
COUPLER,SHAFT (O/P)
5020449
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
3
BEARING,CHAINCASE
3514305
$19.99
4
SHAFT, OUTPUT Substituted by 6230065
5020450
Unavailable
5
SPACER,OUTPUT SHAFT
5010227
Unavailable
6
SPROCKET 39 T
3222034
Unavailable
7
SPROCKET-41T
3222037
Unavailable
8
SPACER,OUTPUT
5020480
Unavailable
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
10
BEARING,205,W/O SEAL
3514304
$15.99
10
BEARING,205,W/O SEAL
3514304
$15.99
11
RING, RET.(10)
7710411
Unavailable
11
RING, RET.(10)
7710411
Unavailable
12
WASHER(10)
7555751
Unavailable
13
BEARING, NEEDLE
3554503
Unavailable
14
GEAR,FORWARD,21T (21T)
5130661
Unavailable
15
SHAFT, INPUT
5020508
Unavailable
16
PINION, REVERSE
5130667
Unavailable
17
FORK, SHIFT (Mach.)
5130662
$134.99
18
SHAFT, SHIFT
5130802
Unavailable
19
O RING(10)
5410440
$4.84
20
RETAINER, RECOIL Substituted by 1011820-067
1011820
Unavailable
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
SCREW(10)
7512116
Unavailable
23
SCREW, SET(10)
7515473
Unavailable
24
SPRING,SHIFTER DETENT Substituted by 7041483
7041187
Unavailable
25
BALL, DETENT
7080310
$5.99
26
SHAFT,LOW RANGE
5020481
Unavailable
27
GEAR, 24T
5130607
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
29
GEAR,30T,REVERSE
5130757
Unavailable
30
BRAKE ASM. (Incl. 68-82)
1930544
Unavailable
31
SHAFT, REVERSE
5020446
Unavailable
32
SPKT, 18T
3221042
$68.48
33
NUT(10)
7542423
$3.99
34
SPACER
5010261
Unavailable
35
BOLT(10)
7515474
$3.33
36
WEIGHT, KEY(10)
7721112
Unavailable
37
SCREW(10)
7512470
Unavailable
38
NUT(10)
7542404
$1.59
39
SCREW(10)
7512225
$3.99
40
SPRING,TENSION [No Longer Available]
7042045
Unavailable
41
PLUG, PIPE(10)
7051511
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
43
SCREW(10)
7512252
Unavailable
43
SCREW(10)
7512252
Unavailable
44
PLATE, VENT
5211036
Unavailable
45
GASKET, VENT
5810305
Unavailable
46
BOLT(10)
7512240
$3.99
47
LOCK WASHER(10)
7552801
$1.59
48
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
49
PIN,CHAIN TIGHTENER
7662210
Unavailable
50
DISC BRAKE WELD.
1910027
Unavailable
51
PIN-SPIRAL(10)
7661504
$1.27
52
GEARCASE,LH MACH.
5130628
Unavailable
53
GEARCASE,RH,MACH.
5130755
Unavailable
54
BOLT(10)
7512329
$3.99
55
WASHER,5/16SHAKEPROOF(10)
7577909
Unavailable
56
BUSHING
5010217
Unavailable
57
WASHER THRUST(10)
7558702
$1.59
57
WASHER THRUST(10)
7558702
$1.59
58
WHEEL,C/C IDLER
5630123
Unavailable
59
BEARING
3553002
$11.99
60
PIN, DOWEL(10)
7661819
Unavailable
61
PIN, SPRING(10)
7661206
Unavailable
62
PLUG,PIPE,MAGNETIC
7051512
Unavailable
63
CHAIN 66 PITCH
3224024
Unavailable
63
CHAIN 66 PITCH
3224024
Unavailable
65
LINE, BRAKE Substituted by 2200393
1930667
Unavailable
66
Adapter
-------
Unavailable
67
BRACKET
1930560
Unavailable
68
BOLT
1930678
Unavailable
69
SWITCH, STOPLIGHT
4110089
Unavailable
70
ADAPTOR/BLEEDER ASM. (Incl. 82)
1930671
Unavailable
71
PLUG(10)
7051517
Unavailable
72
CASTING,PISTONSIDE Substituted by 1930544
1930675
Unavailable
73
O-RING
1930676
Unavailable
74
PISTON
1930677
Unavailable
75
PUCK BRAKE
1930535
Unavailable
76
SCREW BRASS,(10)
1930536
Unavailable
77
PUCK BRAKE
1930534
Unavailable
78
CASTING,CARRIERSIDE
1930679
Unavailable
79
BUSHING Substituted by 1930559
1930680
Unavailable
80
NUT
1930558
Unavailable
81
SW,REV./NEUT.INDIC.
4110062
$32.37
82
CHAIN, SILENT
3224037
Unavailable
83
GEAR,30T,LOW RANGE
5130758
Unavailable
84
SPACER *Red seal of bearing to be positioned away from the cover side of the case.
5010260
Unavailable
