PISTON AND CRANKSHAFT Trail (4919281928027A)

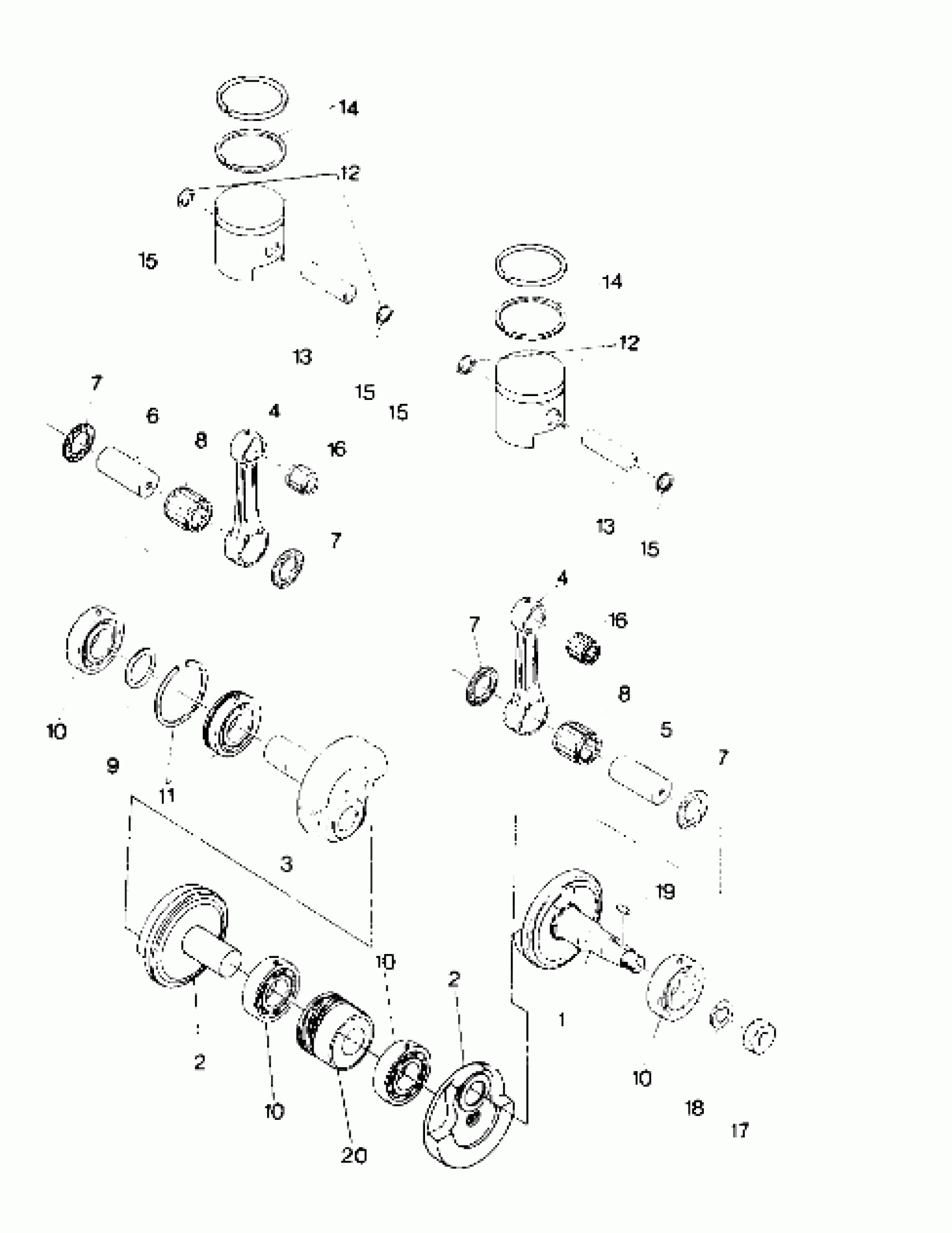

Polaris SWE TRAIL - S910761 PISTON AND CRANKSHAFT Trail (4919281928027A) Diagram
#
-
CRANKSHAFT (Incl 1-11, 20)
3083705
Unavailable
1
CRANKSHAFT #1
3083362
Unavailable
2
CRANKSHAFT 2 (Incl. 5-6)
3083706
Unavailable
2
CRANKSHAFT 2 (Incl. 5-6)
3083706
Unavailable
3
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
4
ROD-CONNECTING
3083252
$164.99
4
ROD-CONNECTING
3083252
$164.99
5
PIN,CRANK
3083233
$36.41
6
Pin, Crank, 2
3083456
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
9
SPACER,CRANKSHAFT
3080447
$1.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BALL BEARING, C-4 Substituted by 3084599
3083708
Unavailable
12
PISTON ASM. (Standard) (Incl. 15)
3083841
Unavailable
12
PISTON ASM, (.020) (.010 Oversize) (Incl. 15)
3083842
Unavailable
12
SET,PISTON,.040"/1.00MM O/S* (1.00mm/.040" O/S)
3083972
Unavailable
12
PISTON ASM. (Standard) (Incl. 15)
3083841
Unavailable
12
PISTON ASM, (.020) (.010 Oversize) (Incl. 15)
3083842
Unavailable
12
SET,PISTON,.040"/1.00MM O/S* (1.00mm/.040" O/S)
3083972
Unavailable
13
Pin, Piston
3083838
$27.99
13
Pin, Piston
3083838
$27.99
14
RING, PISTON (Standard)
3083546
Unavailable
14
RING,.020 O/S (.020 Oversize)
3083717
$28.56
14
RING,PISTON(O/S,1.0MM) (.010 Oversize)
3083974
$31.99
14
RING, PISTON (Standard)
3083546
Unavailable
14
RING,.020 O/S (.020 Oversize)
3083717
$28.56
14
RING,PISTON(O/S,1.0MM) (.010 Oversize)
3083974
$31.99
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
NUT
3083093
$19.99
18
WASHER-SPRING(10)
3083094
$3.17
19
KEY
3081447
Unavailable
20
GEAR,DRIVE,OIL PUMP
3083782
$102.13
