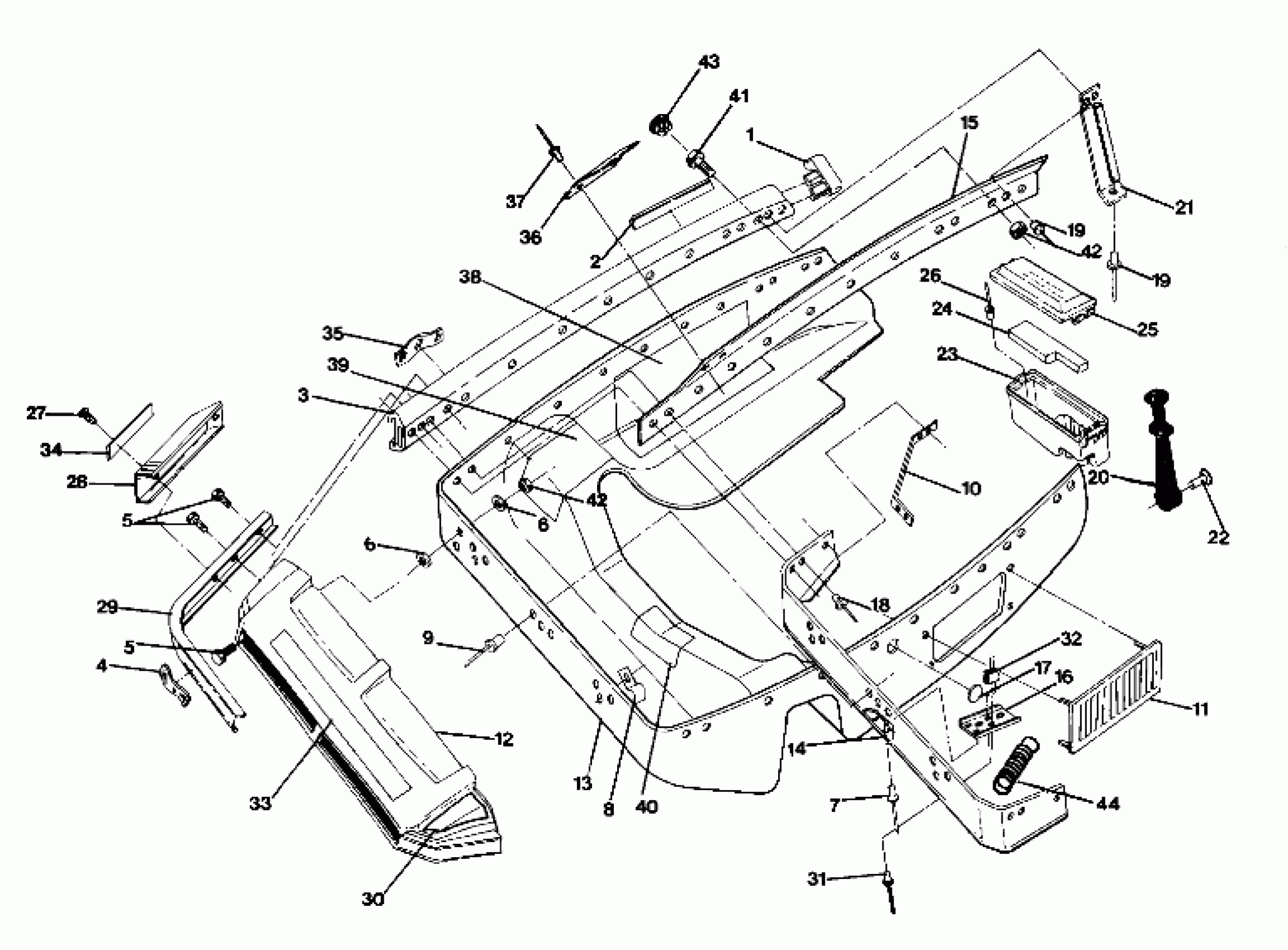

Polaris SWE TRAIL - S910761 NOSEPAN Trail (4919281928007A) Diagram
#
1
CAP,BUMPER,LH
5431083
Unavailable
1
CAP,BUMPER,RH
5431084
$1.67
2
REFLECTOR AMBER
2670071
Unavailable
3
BUMPER,LH EXT. Substituted by 2670151-067
2670114
Unavailable
3
BUMPER,RH EXT. Substituted by 2670152-067
2670115
Unavailable
4
DECAL,STRIPE,BUMPER [No Longer Available]
7072542
Unavailable
5
BOLT(10)
7512240
$3.99
5
BOLT(10)
7512240
$3.99
6
LOCK WASHER(10)
7552801
$1.59
6
LOCK WASHER(10)
7552801
$1.59
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
9
BLIND RIVET(50)
7621403
$1.49
10
BRACE,PAN, CORNER
5222254
$9.91
11
GRILL, DK.GRAY
5430958-153
Unavailable
12
CONE,NOSE, (GREY)
5430931-1002
Unavailable
13
NOSEPAN Substituted by 5410729-153
5410530-153
Unavailable
14
BRACE, HINGE
5220951
$56.99
15
GUIDE-HOOD LH
5510133
$19.83
15
GUIDE,HOOD RH
5510134
$20.63
16
BRACE, PAN
5223996
Unavailable
17
PLUG
5410344
$5.65
18
POP RIVET(50)
7621402
$1.49
19
RIVET,3/16X.402(50)
7621432
$1.49
19
RIVET,3/16X.402(50)
7621432
$1.49
20
STRAP, HOOD LATCH
5410370
$24.27
21
BRACE,PAN, LH Substituted by 5220522-067
5220522
Unavailable
21
BRACE, PAN,RH Substituted by 5220523-067
5220523
Unavailable
22
RIVET,(50)
7621601
Unavailable
23
BOX-TOOL
5430716
$11.99
24
FOAM - TOOL BOX
5810266
Unavailable
25
COVER,TOOL BOX
5430719
$28.32
26
RIVET(50)
7621332
$1.49
27
SCREW(10)
7511863
$1.99
28
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
29
BUMPER,FRONT Substituted by 5224333-067
5224333
$154.99
30
DECAL,LH,N'CONE(TRAIL) [No Longer Available]
7072971
Unavailable
31
RIVET(50)
7621429
$1.49
32
CLIP, BELT Substituted by 5222769
5220817
Unavailable
33
DECAL,NOSECONE,SILVER [No Longer Available]
7072548
Unavailable
34
EMBLEM'POLARIS'SILVER
5430979-092
Unavailable
35
DECAL,BUMPER EXT.SILVER [No Longer Available]
7072541
Unavailable
36
GUIDE, HOOD
5220984
Unavailable
37
RIVET, POP(50)
7621330
$1.49
38
FOIL-TAPE
5810108
$24.27
39
FOIL TAPE
5810128
$7.27
40
FOIL TAPE,(4X6)
5810129
$2.79
41
BOLT(10)
7512296
Unavailable
42
NUT-LOCK(10)
7542122
$1.49
42
NUT-LOCK(10)
7542122
$1.49
43
PLUG, HOLE(10)
7080416
$5.65
44
SPRING,HOOD CABLE
7041202
Unavailable
