CHASSIS AND SEAT Trail Deluxe (4919281928003A)

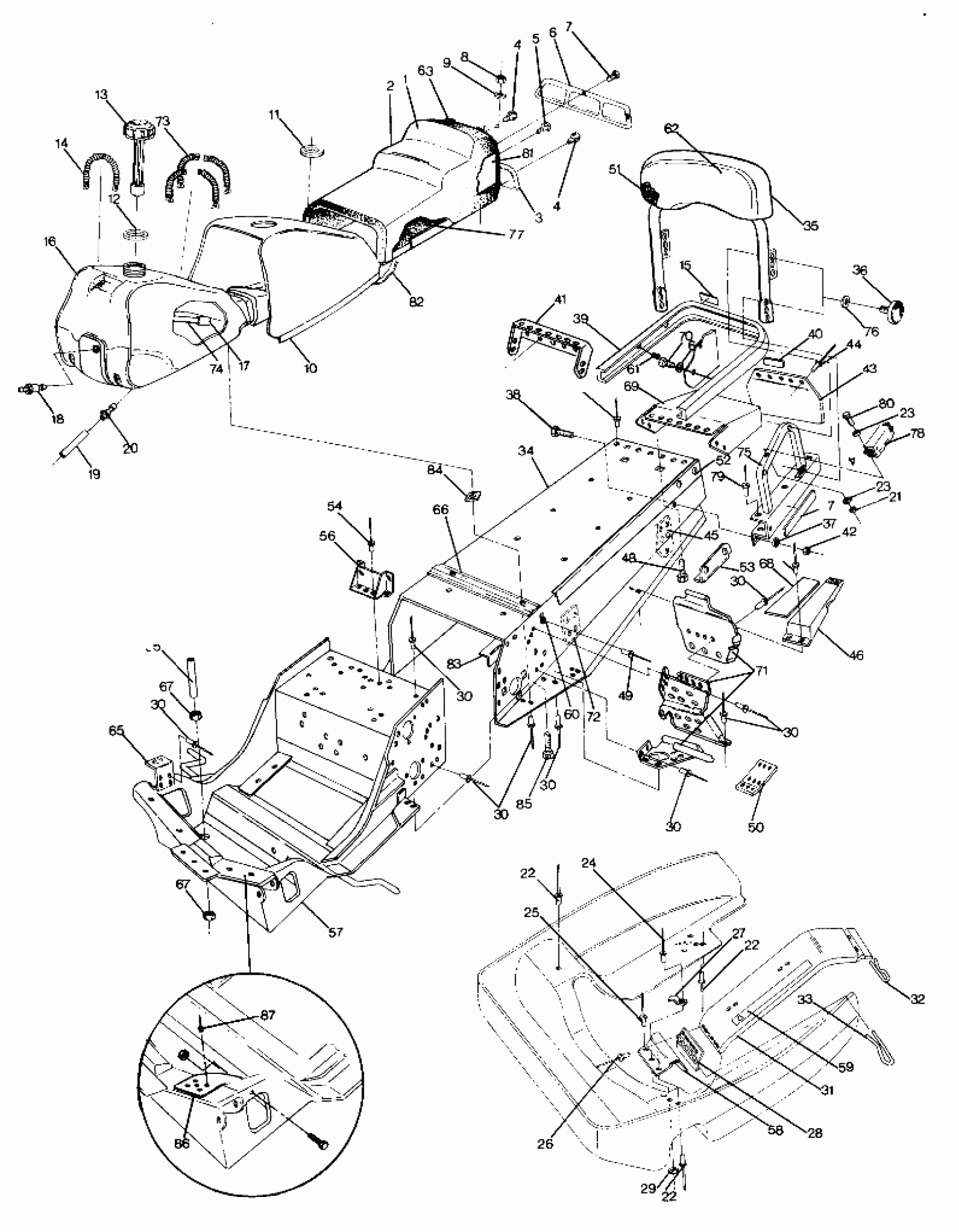

Polaris SWE TRAIL - S910761 CHASSIS AND SEAT Trail Deluxe (4919281928003A) Diagram
#
1
SEAT,(TRAIL DELUXE) Substituted by 2200746 (Incl. 2-7, 63, 77)
2681443
Unavailable
2
COVER, SEAT Substituted by 2200743
2681444
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
COVER,TANK
2681442
Unavailable
11
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
CAP,GAS(HI.CAP.)
2511184
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
DECAL,36'',R.BUMP [No Longer Available]
7072582
Unavailable
16
TANK, GAS Substituted by 2511199
2511185
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
23
WASHER(10)
7555783
$3.99
23
WASHER(10)
7555783
$3.99
24
POP RIVET(50)
7621402
$1.49
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL,(TRAIL DELUXE)
1011774
Unavailable
35
BACKREST ASM. (Incl. 51, 62)
2681449
Unavailable
36
KNOB,ADJ. Substituted by 2670130
7030007
Unavailable
37
WASHER,WROUGHT(10)
7558302
$1.59
38
BOLT(10)
7512325
$2.39
39
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
40
DECAL, TRACK [No Longer Available]
7072872
Unavailable
41
PANEL, BACK [No Longer Available]
5220767
Unavailable
42
NUT-5/16-18 NYLOK-Y
7542324
$1.49
43
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
44
POP RIVET(50)
7621418
$1.49
45
PAD,LH,R.SUSP.MTG. Substituted by 1011749-067
1011749
Unavailable
45
PAD,RH,R.SUSP.MTG. Substituted by 1011750-067
1011750
Unavailable
46
FOOTREST,LH REAR
5220893
Unavailable
46
FOOTREST,RH REAR
5220894
$32.15
48
SCREW(10)
7512116
Unavailable
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
FOAM, BACKREST [No Longer Available]
2681456
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
WEARPLATE,TUNNEL
5222061
Unavailable
54
RIVET(50)
7621301
$3.99
55
TUBE, BATT.DRAIN Substituted by 5332405
5332893
Unavailable
56
SEAT RISER ASM. Substituted by 1011773-067
1011773
Unavailable
57
BULKHEAD Substituted by 1011612
1011673
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
61
RIVNUT(10)
7542130
$6.23
62
COVER, BACKREST
2681450
Unavailable
63
BUCKLE&STRAP
2681291
Unavailable
65
SUPPORT,MUFFLER,FRONT [No Longer Available]
5222575
Unavailable
66
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
67
PALNUT(10)
7670031
Unavailable
67
PALNUT(10)
7670031
Unavailable
68
PAD,LH FOOT SAFETY
5830007
$7.89
68
PAD,RH FOOT SAFETY
5830008
$4.92
69
PANEL,R.CLOSE-OFF ASM. (Incl. 41)
1011799
$32.95
70
BOLT(10)
7512240
$3.99
71
FOOTREST ASM,LH
2200250
Unavailable
71
FOOTREST ASM,RH
2200254
Unavailable
72
BRKT. Substituted by 5220542-067
5220542
Unavailable
73
SPRING, TANK
7042033
Unavailable
74
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
75
GRAB BAR,LH Substituted by 1011729-067
1011729
Unavailable
75
GRAB BAR,RH Substituted by 1011730-067
1011730
Unavailable
76
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
77
BUN, SEAT [No Longer Available]
5431135
Unavailable
78
GRIP, HAND Substituted by 5433383
5431015
$19.68
79
RIVET(50)
7621429
$1.49
80
SCREW(10)
7510504
$6.76
81
BOX,TOOL,(2-UP SEAT) Substituted by 5431345
5430925
Unavailable
82
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
83
BRACE,TUNNEL REINF.
5222412
Unavailable
84
SPEED NUT(10)
7670021
$6.99
85
BOLT(10)
7512193
$2.39
86
BRACE, LH BULKHD. Substituted by 5222582-067
5222582
Unavailable
86
BRACE,RH BULKHD. Substituted by 5222583-067
5222583
Unavailable
87
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
