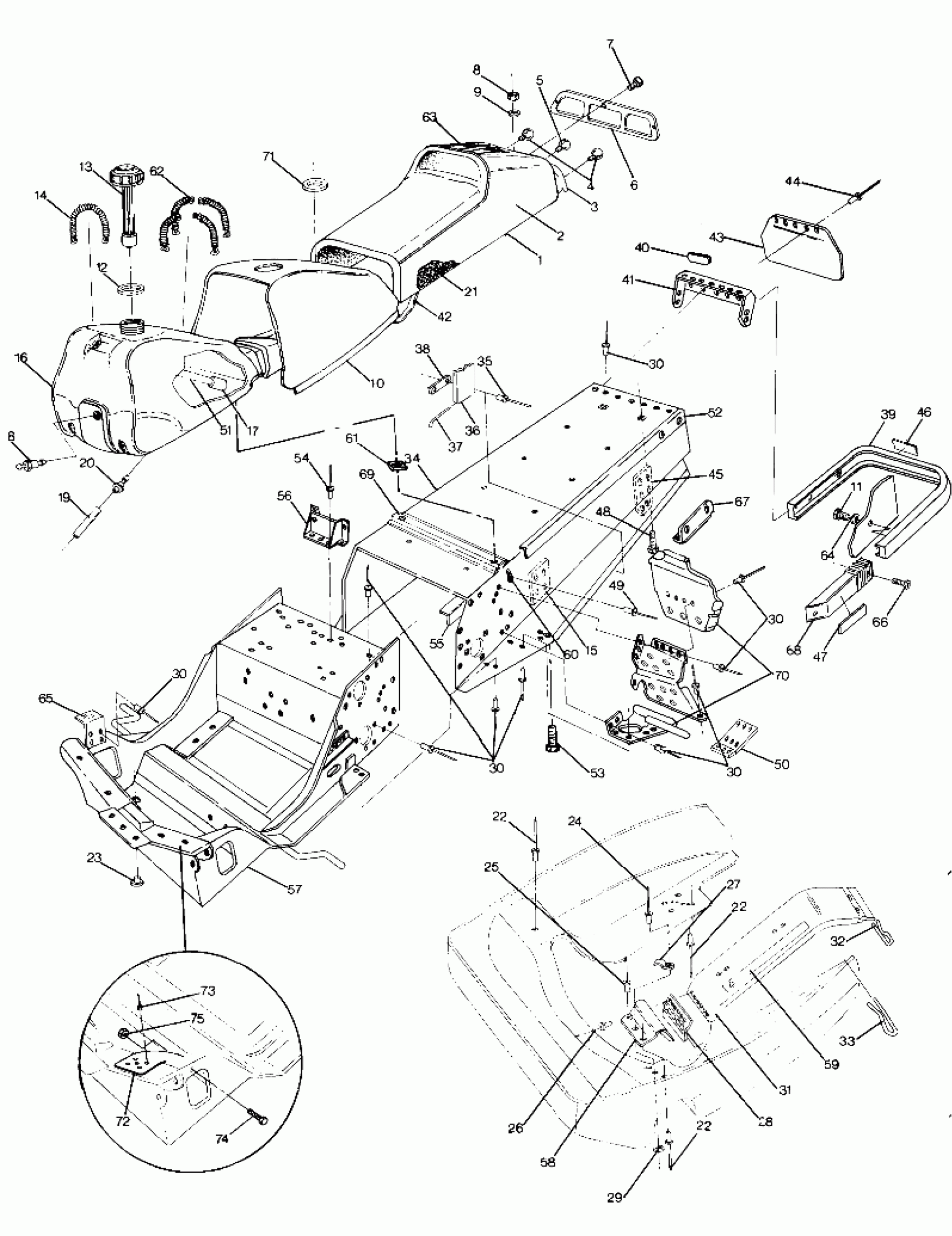

Polaris SWE TRAIL - S910761 CHASSIS AND SEAT Trail (4919281928001A) Diagram

SEAT ASM,(TRAIL) [No Longer Available] (Incl. 2-7, 21, 63)

2681481

Unavailable

COVER, SEAT Substituted by 2200742

2681482

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

BULB TAILLIGHT(10)

4030015

$4.03

BULB, BRAKELIGHT

4030019

Unavailable

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

WASHER(10)

7558221

$2.39

COVER,TANK,(TRAIL) [No Longer Available]

2681483

Unavailable

BOLT(10)

7512240

$3.99

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

CAP,GAS(HI.CAP.)

2511184

Unavailable

SPRING,TANK,(10)

7042020

$13.75

BRKT. Substituted by 5220542-067

5220542

Unavailable

TANK, GAS Substituted by 2511199

5431130

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

KIT-TANK VENT

2200190

Unavailable

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

BUN, SEAT [No Longer Available]

5431134

Unavailable

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

PLUG

7080288

Unavailable

POP RIVET(50)

7621402

$1.49

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5211047

$3.49

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

GUARD,CLUTCH Substituted by 5240965

5230118

Unavailable

PIN,RETAINING,(10)

7080216

$9.70

PIN, FRONT

7080311

Unavailable

TUNNEL,(TRAIL) [No Longer Available]

1011776

Unavailable

POP RIVET(50)

7621323

$1.49

BELT, SEAT

2690047

Unavailable

WIRE-SEAT-BELT

5223864

Unavailable

PLATE-SEAT BELT

5210842

Unavailable

BUMPER, REAR Substituted by 5224334-067

5224334

Unavailable

DECAL, TRACK [No Longer Available]

7072872

Unavailable

PANEL,TUNNEL,BACK Substituted by 5220478-067

5220478

Unavailable

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Unavailable

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

POP RIVET(50)

7621418

$1.49

PAD,LH,R.SUSP.MTG. Substituted by 1011749-067

1011749

Unavailable

PAD,RH,R.SUSP.MTG. Substituted by 1011750-067

1011750

Unavailable

DECAL,STRIPE,R.BUMPER [No Longer Available]

7072623

Unavailable

REFLECTOR RED

2670070

$9.91

BOLT(10)

7512103

$3.19

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

DECAL(47.5'')TUNNEL [No Longer Available]

7072078

Unavailable

BOLT(10)

7512193

$2.39

BRACE,TUNNEL REINF.

5222412

Unavailable

SEAT RISER ASM. Substituted by 1011773-067

1011773

Unavailable

BULKHEAD, (TRAIL)

1011612

Unavailable

BRACKET, HINGE Substituted by 5241437

5220406

Unavailable

DECAL,ENG/CLUTCH [No Longer Available]

7072871

Unavailable

SNAP-MALE(10)

7080227

Unavailable

SPEED NUT(10)

7670021

$6.99

SPRING, TANK

7042033

Unavailable

BUCKLE&STRAP

2681291

Unavailable

RETAINER,LUGGAGE(10) [No Longer Available]

7080269

Unavailable

WASHER(10)

7558301

$1.49

SUPPORT,MUFFLER,FRONT [No Longer Available]

5222575

Unavailable

SCREW-SEMS(10)

7511848

$3.99

WEARPLATE,TUNNEL

5222061

Unavailable

CAP, BUMPER Substituted by 5430930-070

5430930

Unavailable

BRKT,R.FUELTANK MTG. Substituted by 5222375-067

5222375

Unavailable

FOOTREST ASM,LH

2200250

Unavailable

FOOTREST ASM,RH

2200254

Unavailable

GROMMET,GAS TANK [No Longer Available]

5431190

Unavailable

BRACE, LH BULKHD. Substituted by 5222582-067

5222582

Unavailable

BRACE,RH BULKHD. Substituted by 5222583-067

5222583

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

BOLT(10)

7515307

$3.99

NUT LOCK(10)

7542321

$1.49
