TUNNEL ASSEMBLY Trail Deluxe (4921272127003A)

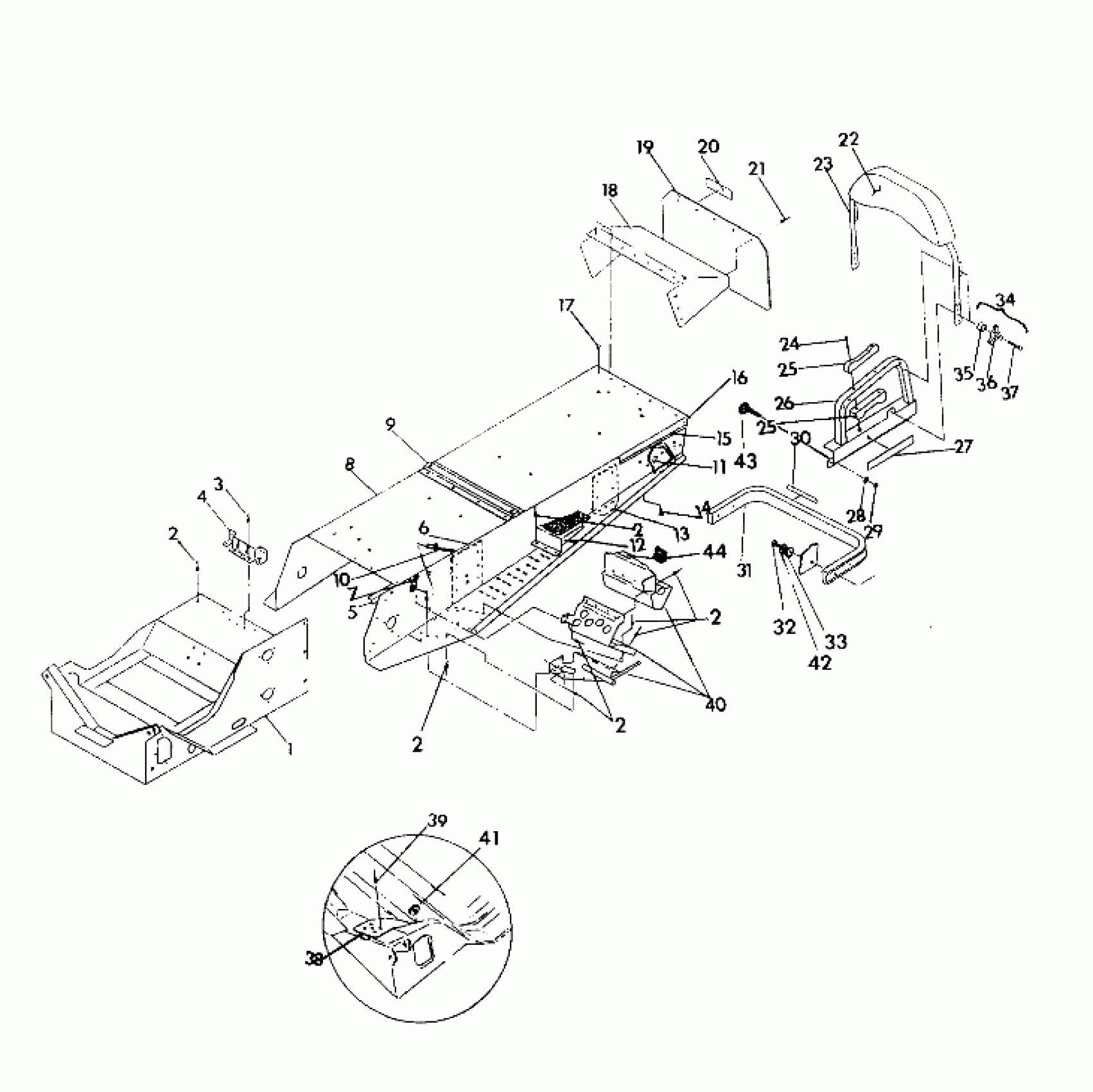

Polaris SWE TRAIL DELUXE - S920262 TUNNEL ASSEMBLY Trail Deluxe (4921272127003A) Diagram
#
1
BULKHEAD Substituted by 1011612
1011673
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET(50)
7621301
$3.99
4
RISER,SEAT,BLK.
1011773-067
Unavailable
5
BRACE,TUNNEL REINF.
5222412
Unavailable
6
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
TUNNEL,(TRAIL DELUXE)
1011774
Unavailable
9
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
10
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
11
WEARPLATE,TUNNEL
5222061
Unavailable
12
PAD,LH FOOT SAFETY
5830007
$7.89
12
PAD,RH FOOT SAFETY
5830008
$4.92
13
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
13
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
14
SCREW(10)
7512116
Unavailable
15
DECAL,(48'')TUNNEL [No Longer Available]
7073233
Unavailable
16
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
17
RIVET Substituted by 7661829
7661828
Unavailable
18
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
19
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
20
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
21
POP RIVET(50)
7621418
$1.49
22
COVER, BACKREST
2681450
Unavailable
23
BACKREST ASM.
2681449
Unavailable
24
SCREW(10)
7510504
$6.76
25
GRIP, HAND Substituted by 5433383
5431015
$19.68
25
GRIP, HAND Substituted by 5433383
5431015
$19.68
26
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
26
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
27
REFLECTOR RED
2670070
$9.91
28
WASHER,WROUGHT(10)
7558302
$1.59
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
30
DECAL,(24'')F.BUMP,RXL/TRL [No Longer Available]
7073234
Unavailable
31
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
32
BOLT(10)
7512240
$3.99
33
WASHER(10)
7558301
$1.49
34
KNOB ASM,BACKREST
2670130
Unavailable
35
SPACER
5431285
Unavailable
36
Knob, Backrest
5630386-067
$20.22
37
SCREW(10)
7515352
Unavailable
38
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
38
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
39
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
FOOTREST ASM,LH
2200250
Unavailable
40
FOOTREST ASM,RH
2200254
Unavailable
41
WASHER FLAT(10)
7555701
$3.99
42
LOCK WASHER(10)
7552801
$1.59
43
BOLT(10)
7512325
$2.39
44
EXTRUSION,CLUTCHGUARD
5521238
$6.46
