SUSPENSION Trail (4921272127029A)

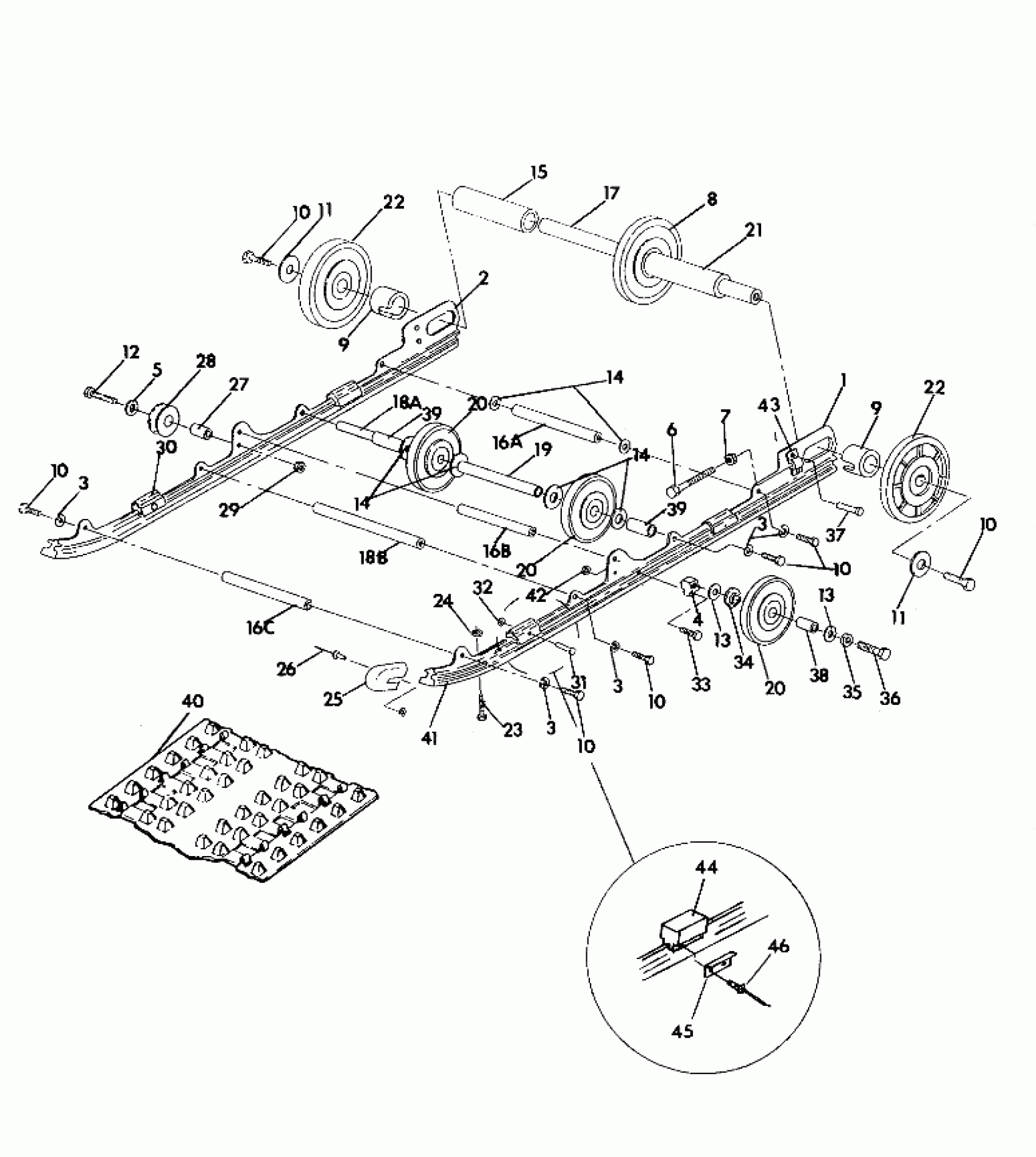

Polaris SWE TRAIL DELUXE - S920262 SUSPENSION Trail (4921272127029A) Diagram
#
1
RAIL ASM., LH (Trail Deluxe)
1540615
$271.99
1
RAIL ASM, LH,SILVER (Trail)
1540553
Unavailable
2
RAIL ASM,RH, SILVER (Trail)
1540554
Unavailable
2
RAIL ASM,RH (Trail Deluxe)
1540616
$271.99
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BRACKET,BOGIE WHEEL
5130570
$48.56
5
WASHER(10)
7555743
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
BOLT Substituted by 7515491
7515433
$1.59
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
SPACER,IDLER,R.INNER
5333086
Unavailable
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
17
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
19
TUBE, SUSPENSION
5332783
Unavailable
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
21
SPACER INNER IDLER (Trail)
5010169
Unavailable
21
SPACER,IDLER WHEEL Substituted by 5010169 (Trail Deluxe)
5020169
Unavailable
22
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
22
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
23
SCREW(10)
7512227
$3.19
24
NUT-LOCK(10)
7542122
$1.49
25
COVER-RAIL TIP
5430627
$32.37
26
RIVET(50)
7621435
$1.49
27
Spacer
5332787
Unavailable
28
ROLLER-SPRING
5430540
Unavailable
29
NUT-LOCK(10)
7542439
$1.49
30
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
31
RIVET,(50)
7661609
Unavailable
32
PALNUT(10)
7670009
$2.39
33
BOLT(10)
7512404
$3.99
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
35
LOCK WASHER(10)
7553201
$3.99
36
BOLT(10)
7512659
$7.99
37
RIVET,(50)
7621501
$2.39
38
SPACER
5332786
$7.99
39
SPACER, OUTER
5332784
Unavailable
39
SPACER, OUTER
5332784
Unavailable
40
TRACK Substituted by 5410736 (Trail)
5410595
Unavailable
40
TRACK Substituted by 5410823 (Trail Deluxe)
5410594
Unavailable
41
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
42
NUT LOCK(10)
7542403
$3.99
43
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
44
BUMPER, RAIL
5810554
$7.27
45
REINF., BUMPER
5222629
$13.75
46
RIVET-3/16 (.626-.750) Q-AL-ST Note:lf rail bumper has one mtg. hole, order No's 30,31,32 for replacement. If rail bumper has two mtg. holes order item no's 44,45,46 for replacement.
7621476
$1.49
