PISTON and CRANKSHAFT Trail (4921272127041A)

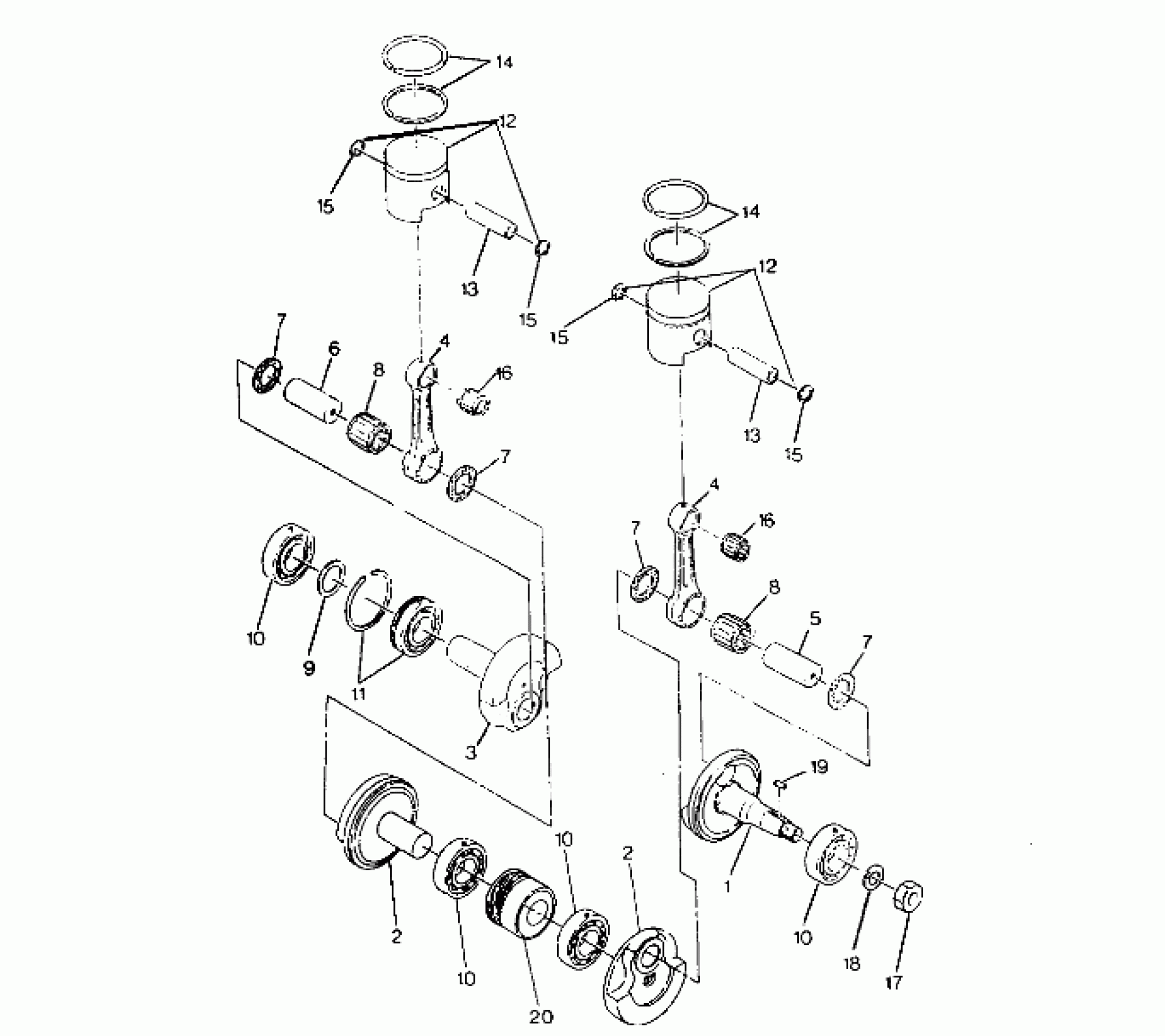

Polaris SWE TRAIL DELUXE - S920262 PISTON and CRANKSHAFT Trail (4921272127041A) Diagram
#
1
CRANKSHAFT #1
3083362
Unavailable
2
CRANKSHAFT #3 Substituted by 3084357 (Incl. 5-6)
3083364
Unavailable
2
CRANKSHAFT #3 Substituted by 3084357 (Incl. 5-6)
3083364
Unavailable
3
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
4
ROD-CONNECTING
3083252
$164.99
4
ROD-CONNECTING
3083252
$164.99
5
PIN,CRANK
3083233
$36.41
6
Pin, Crank, 2
3083456
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
9
SPACER,CRANKSHAFT
3080447
$1.99
10
BEARING, BALL Substituted by 3084601
3083888
Unavailable
10
BEARING, BALL Substituted by 3084601
3083888
Unavailable
10
BEARING, BALL Substituted by 3084601
3083888
Unavailable
10
BEARING, BALL Substituted by 3084601
3083888
Unavailable
11
BEARING, BALL Substituted by 3084587
3084275
Unavailable
12
PISTON ASM. (Standard) (Incl. 15)
3083841
Unavailable
12
PISTON ASM, (.020) (.020 Oversize) (Incl
3083842
Unavailable
12
Piston Assembly (.010 Oversize) (Incl
-------
Unavailable
12
PISTON ASM. (Standard) (Incl. 15)
3083841
Unavailable
12
PISTON ASM, (.020) (.020 Oversize) (Incl
3083842
Unavailable
12
Piston Assembly (.010 Oversize) (Incl
-------
Unavailable
13
Pin, Piston
3083838
$27.99
13
Pin, Piston
3083838
$27.99
14
RING, PISTON (Standard)
3083546
Unavailable
14
RING,.020 O/S (0.2050 Oversize)
3083717
$28.56
14
RING,.010 O/S (0.10 Oversize)
3083678
Unavailable
14
RING, PISTON (Standard)
3083546
Unavailable
14
RING,.020 O/S (0.2050 Oversize)
3083717
$28.56
14
RING,.010 O/S (0.10 Oversize)
3083678
Unavailable
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
15
CLIP,PISTON PIN,(10)
3083839
$4.75
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
NUT
3083093
$19.99
18
WASHER-SPRING(10)
3083094
$3.17
19
KEY
3081447
Unavailable
20
GEAR,DRIVE,OIL PUMP
3083782
$102.13
20
RECOIL STARTER (Incl. 1-10)
3083547
Unavailable
