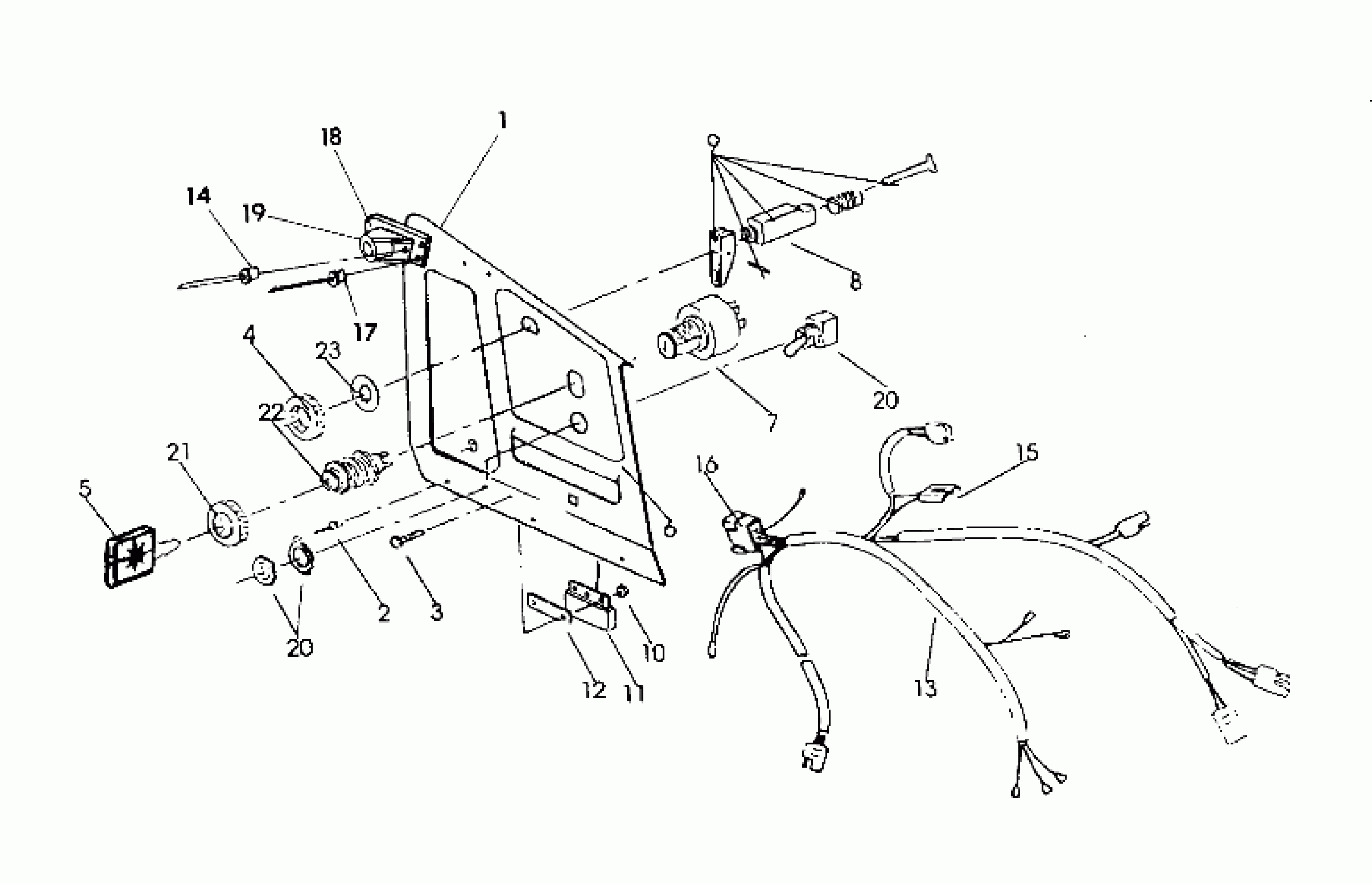

Polaris SWE TRAIL DELUXE - S920262 CONSOLE Trail (4921272127017A) Diagram
#
Description
Price
1
CONSOLE
5222756-067
Unavailable
2
RIVET Substituted by 7661638
7661625
$1.19
3
SCREW(10)
7512007
$3.99
4
Nut
7080229
$19.99
5
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]
5410611
Unavailable
6
DECAL, CONSOLE [No Longer Available] (Trail)
7072973
Unavailable
6
DECAL, CONSOLE [No Longer Available] (Trail Deluxe)
7073061
Unavailable
7
SWITCH,IGN.(E/S) Substituted by 2200358 (Trail Deluxe)
4110110
$76.89
8
Cable, Choke Control
7080290
$105.22
10
NUT(10)
7541925
$1.49
11
REGULATOR, VOLTAGE
4060092
Unavailable
12
HEAT SINK
5210650
Unavailable
13
HARNESS, MAIN WIRE (Trail)
2460314
Unavailable
13
HARNESS,MAIN WIRE (Trail Deluxe)
2460316
Unavailable
14
RIVET,(50)
7621477
$1.19
15
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
15
TERMINAL
4020113
Unavailable
16
HOUSING,W/RECEPTACLES
2200039
Unavailable
18
BRKT, ROPE GUIDE Substituted by 5222682-067
5222682
Unavailable
19
GUIDE, RECOIL
5431385
$10.51
20
SWITCH,H-BAR HEATER
4110066
Unavailable
20
SWITCH,H-BAR HEATER
4110066
Unavailable
21
NUT, IGN.SWITCH(10) (Trail Deluxe)
7543101
Unavailable
22
SWITCH, IGN. Substituted by 2200357 (Trail)
4110111
Unavailable
23
WASHER-LOCK(10)
7571610
$3.99
23
KIT,IGN.SWITCH (Trail Deluxe)
2200358
$76.89
23
KIT,IGN. SWITCH (Trail) Note: If only the key is needed, order PN 5410611 and specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.
2200357
Unavailable
