- SUPERTRAK - 0920161
TUNNEL ASSEMBLY SuperTrak (4921292129001A)

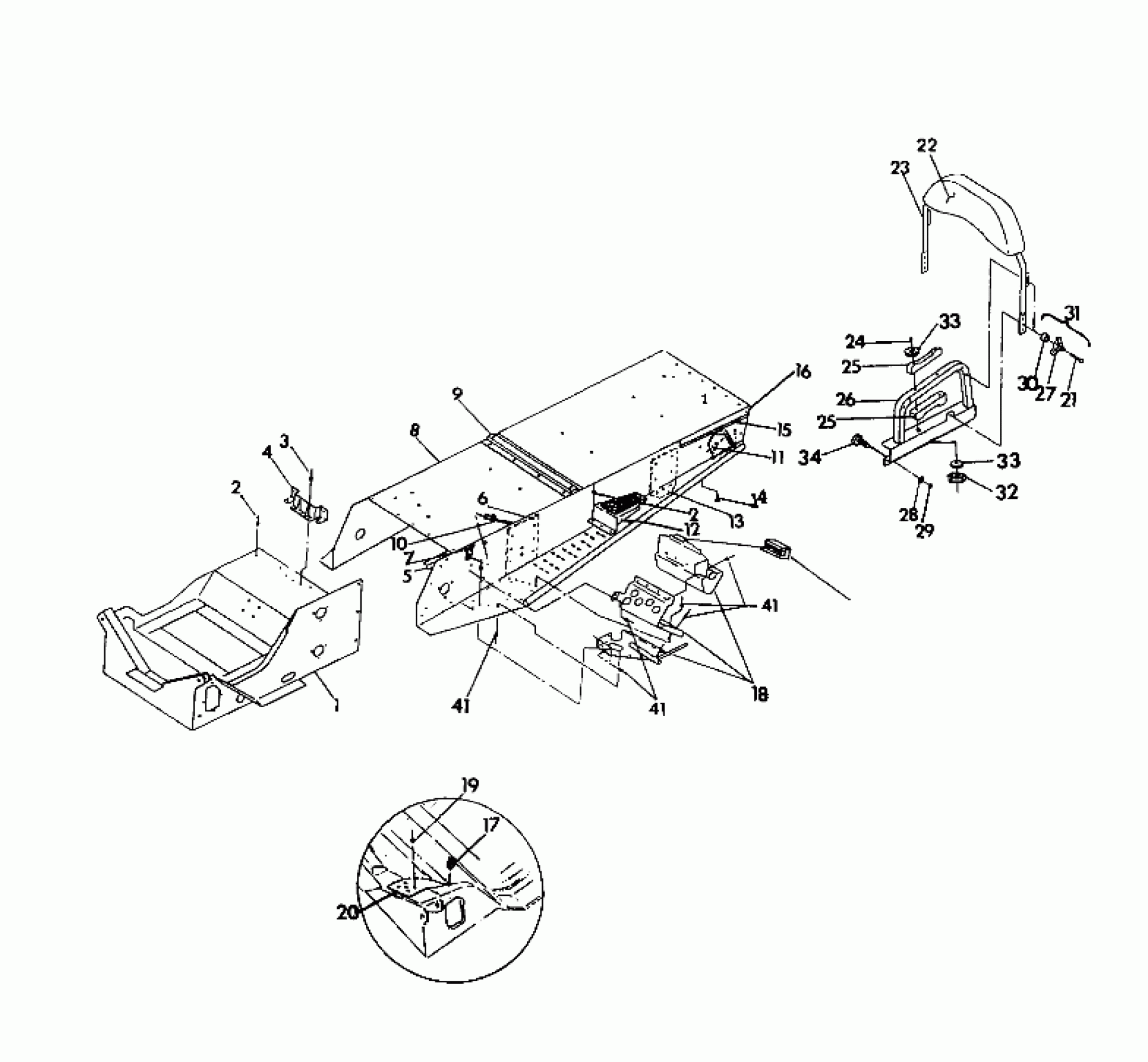

Polaris SUPERTRAK - 0920161 TUNNEL ASSEMBLY SuperTrak (4921292129001A) Diagram
#
1
BULKHEAD, (S'TRAK) Substituted by 1011813-067
1011813
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET(50)
7621301
$3.99
4
BRKT,GASTANK,WELD.
1011733-067
$19.73
5
BRACE,TUNNEL REINF.
5222412
Unavailable
6
PAD,FR.SUSP.MTG. [No Longer Available]
5220475
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
TUNNEL(SUPERTRAK)'90
1011775
Unavailable
9
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
10
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
11
WEARPLATE,TUNNEL
5222061
Unavailable
12
PAD,LH FOOT SAFETY
5830007
$7.89
12
PAD,RH FOOT SAFETY
5830008
$4.92
13
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
13
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
14
SCREW(10)
7512116
Unavailable
15
DECAL,(48'')TUNNEL [No Longer Available]
7073233
Unavailable
16
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
17
WASHER FLAT(10) (L.H. Only)
7555701
$3.99
18
FOOTREST ASM,LH
2200250
Unavailable
18
FOOTREST ASM,RH
2200254
Unavailable
19
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
20
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
20
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
21
SCREW(10)
7515352
Unavailable
22
COVER, BACKREST
2681450
Unavailable
23
BACKREST ASM.
2681449
Unavailable
24
SCREW(10)
7510504
$6.76
25
GRIP, HAND Substituted by 5433383
5431015
$19.68
25
GRIP, HAND Substituted by 5433383
5431015
$19.68
26
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
26
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
27
Knob, Backrest
5630386-067
$20.22
28
WASHER,WROUGHT(10)
7558302
$1.59
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
30
SPACER
5431285
Unavailable
31
KNOB ASM,BACKREST
2670130
Unavailable
32
NUT(10)
7541925
$1.49
33
WASHER(10)
7555783
$3.99
33
WASHER(10)
7555783
$3.99
34
BOLT(10)
7512325
$2.39
