ENGINE MOUNTING SuperTrak (4921292129029A)

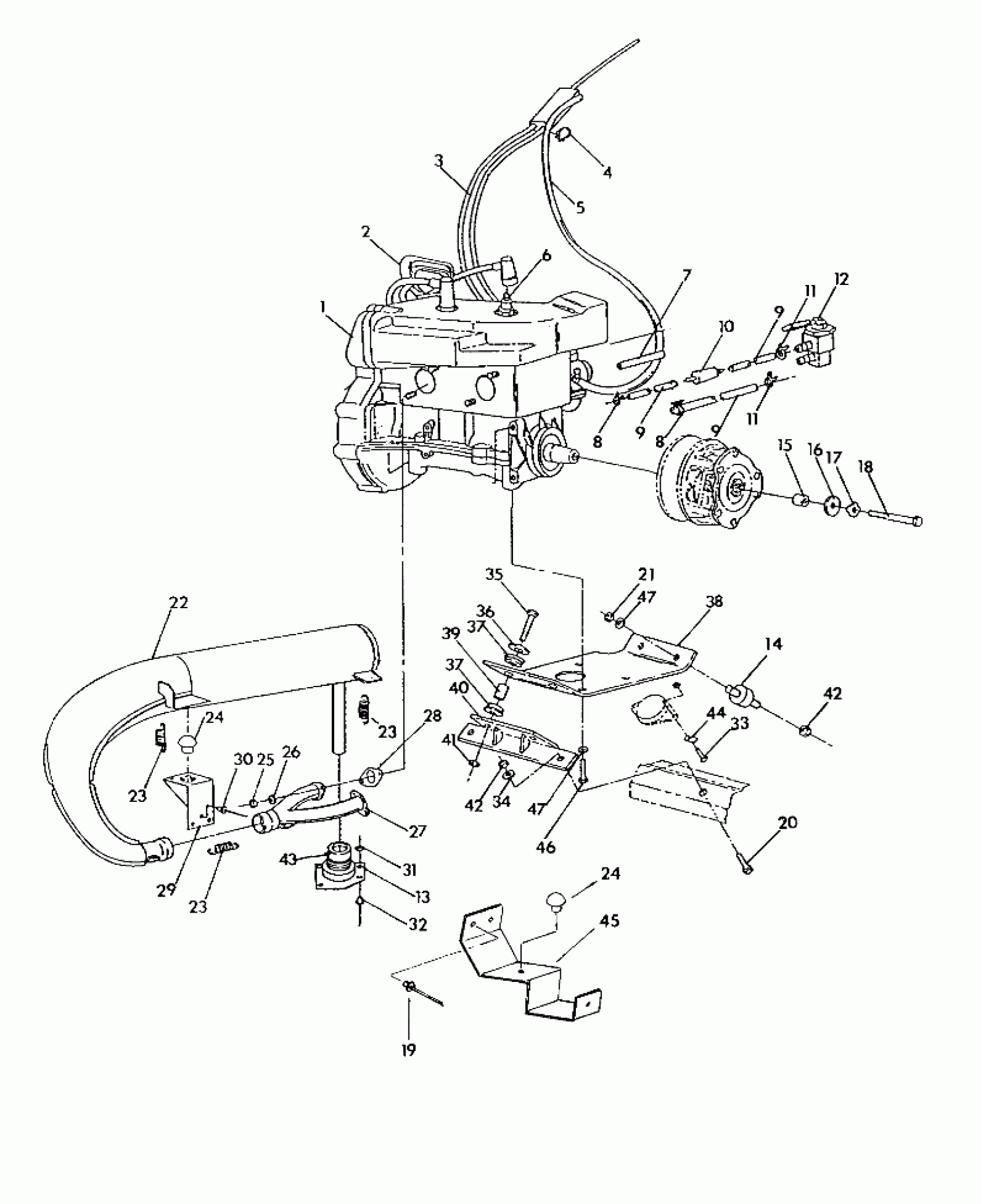

Polaris SUPERTRAK - 0920161 ENGINE MOUNTING SuperTrak (4921292129029A) Diagram
#
1
ENG.EC50PM-03 Substituted by 1211442
1211459
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE
7080289
$154.99
4
CLIP(10)
7080278
$2.63
5
KIT-TANK VENT
2200190
Unavailable
6
SPARKPLUG (10)
3070156
$3.99
7
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
8
CLAMP-HOSE(10)
7080134
Unavailable
9
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
9
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
9
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
9
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
10
FILTER FUEL,(10)
2530008
$4.84
11
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
11
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
12
VALVE,FUEL SHUT-OFF
7052040
Unavailable
13
HAT, EXHAUST Substituted by 5432465
5431058
Unavailable
14
MOUNT
3110022
Unavailable
15
BUSHING-.437 X.770 X.50
5430261
$7.19
16
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
17
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
18
BOLT(10)
7512565
$19.99
19
RIVET(50)
7621452
$1.49
20
BOLT(10)
7512457
$3.99
21
NUT LOCK(10)
7542411
$3.19
22
MUFFLER Substituted by 1260506-029
1260506
Unavailable
23
SPRING, EXHAUST(10)
7042031
$5.65
23
SPRING, EXHAUST(10)
7042031
$5.65
23
SPRING, EXHAUST(10)
7042031
$5.65
24
DAMPNER, VIB.
5410467
$8.79
24
DAMPNER, VIB.
5410467
$8.79
25
NUT(10)
3080285
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
MANIFOLD
1260505-029
Unavailable
28
GASKET, EXHAUST
3083770
Unavailable
29
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
32
POP RIVET(50)
7621418
$1.49
33
BOLT-CARRIAGE(10)
7512263
$3.99
34
WASHER(10) Substituted by 7555806
7555720
$0.79
35
SCREW(10)
7512533
$1.75
36
WASHER(10)
7555740
$1.59
37
MOUNT, ENGINE
5410390
Unavailable
37
MOUNT, ENGINE
5410390
Unavailable
38
PLATE,ENG.MT.
5222169
Unavailable
39
SPACER, (MTR.MT.)
5332778
Unavailable
40
MOUNT,MOTOR,BLK.
1011587-067
Unavailable
41
NUT-LOCK(10)
7542439
$1.49
43
Boot, Exhaust
5410502
$24.27
44
SPEED NUT(10)
7670021
$6.99
45
BRKT,BLK,R.MUFFLER Substituted by 5241267-067
5222146-067
Unavailable
46
BOLT(10)
7512539
$3.99
47
WASHER LOCK(10)
7553101
$3.99
47
WASHER LOCK(10)
7553101
$3.99
