BLOWER HOUSING and RECOIL STARTER SuperTrak (4921292129039A)

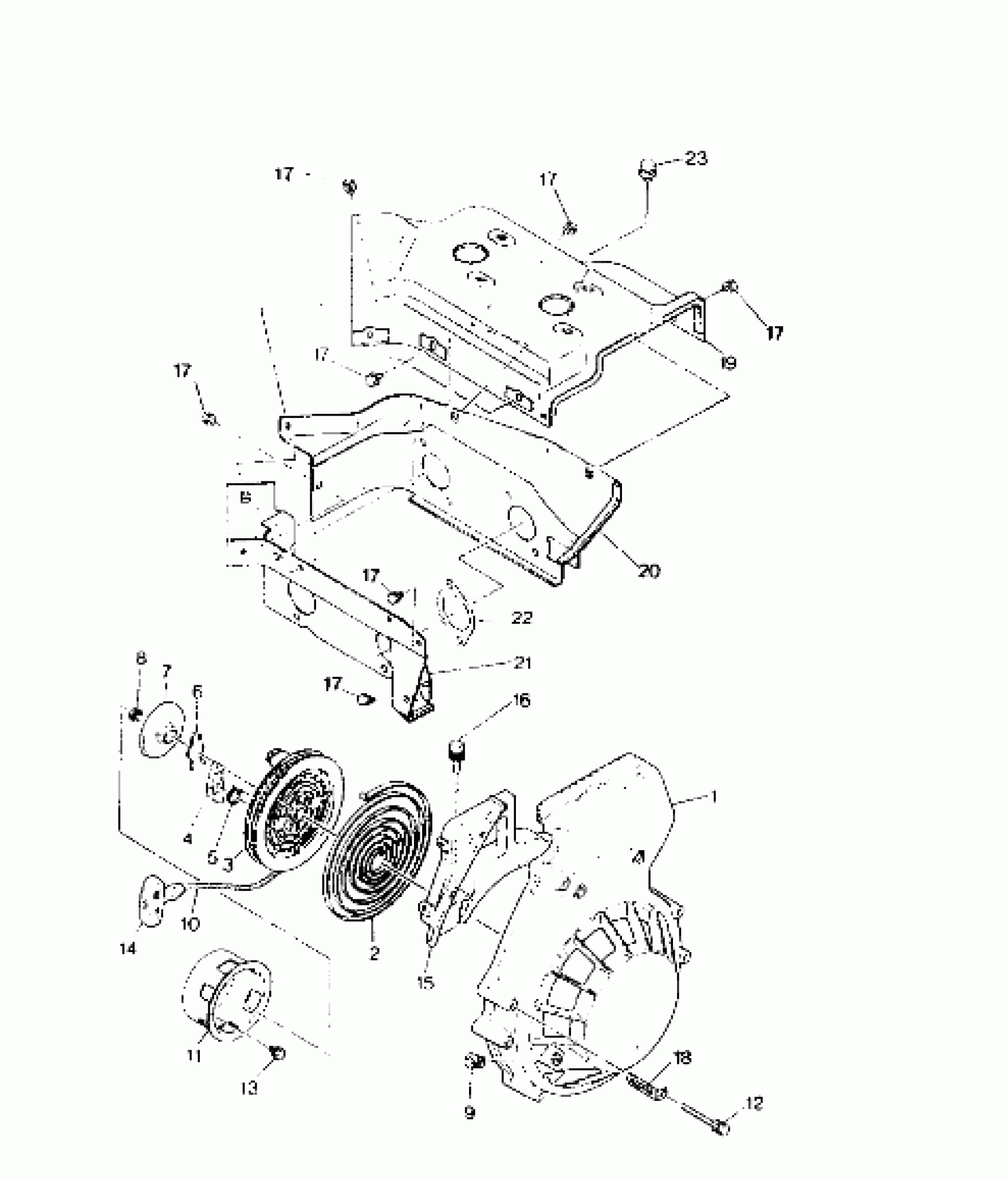

Polaris SUPERTRAK - 0920161 BLOWER HOUSING and RECOIL STARTER SuperTrak (4921292129039A) Diagram
#
Description
Price
-
RECOIL STARTER (Incl. 1-10)
3083547
Unavailable
1
CASE, STARTER
3083548
Unavailable
2
Spring, Spiral
3083376
$179.11
3
REEL, REWIND
3083377
$56.65
4
Ratchet
3083378
$20.22
5
Spring, Return
3083463
$4.03
6
Spring, Friction
3083379
$24.27
7
Plate, Friction
3083464
$28.32
8
NUT, FLANGE ,(10)
3083381
$2.99
9
GUIDE-ROPE
3083107
Unavailable
10
ROPE,100 FT,NYL.STARTER (Cut to Fit)
2870621
$34.99
11
PULLEY, STARTER
3083549
Unavailable
12
BOLT&WASHER ASM.
3083550
Unavailable
13
BOLT,(10)
3081665
$3.19
14
HANDLE-RECOIL
5430520
Unavailable
15
HOUSING,BLOWER,#2
3083697
Unavailable
16
BOLT&WASHER ASM.
3084225
$3.99
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
17
BOLT,(10)
3081645
Unavailable
18
CLAM(10)
3083187
Unavailable
19
BAFFLE,CYL. #1
3083698
Unavailable
20
BAFFLE, CYL.#2
3083554
$85.54
21
BAFFLE,CYL. #3
3083699
$53.17
22
GASKET-INTAKE Substituted by 3084027
3083099
Unavailable
23
BOLT&WASHER ,(10)
3083840
Unavailable
