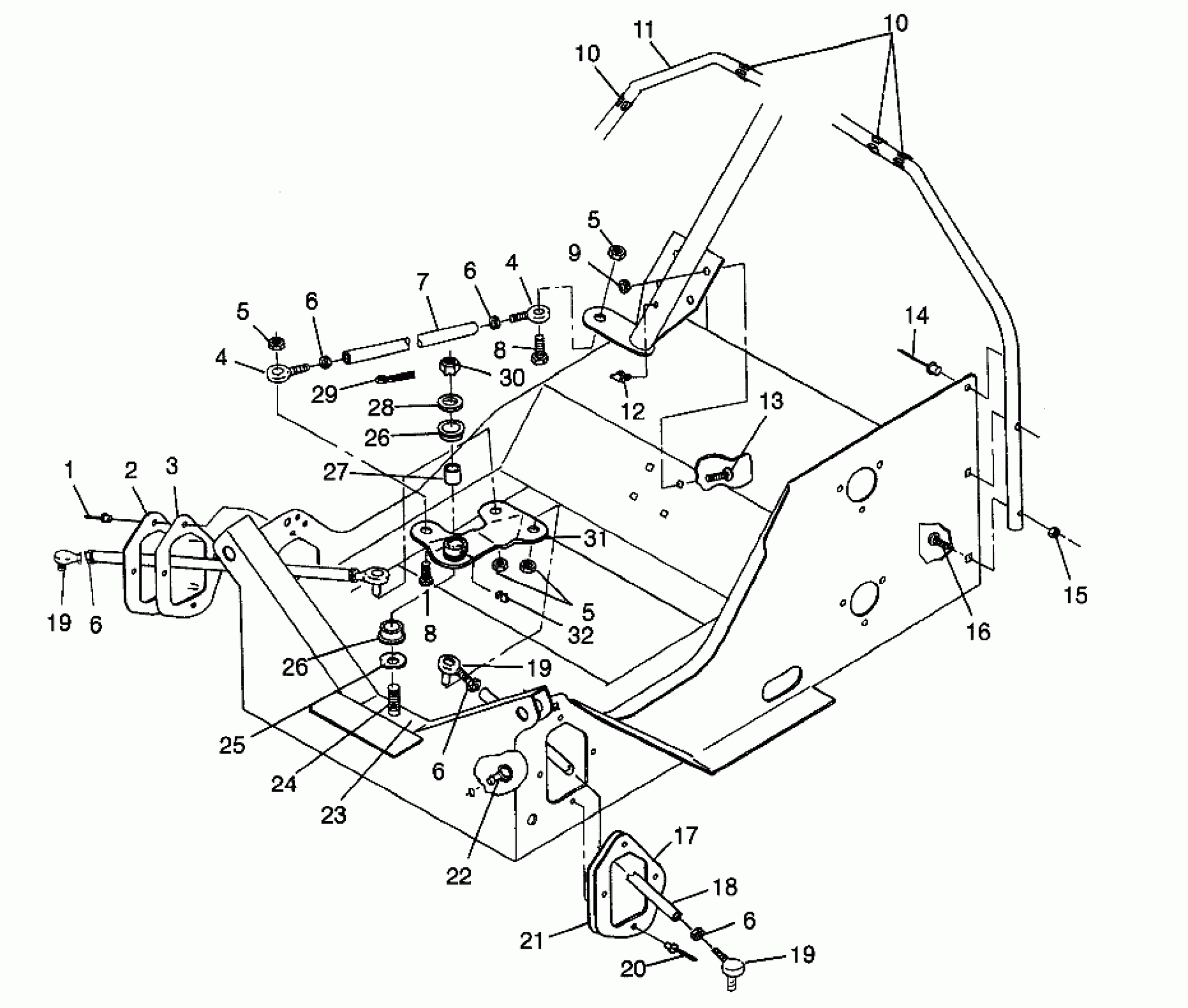

Polaris SUPER SPORT - 0980761 STEERING - 0980761 (4942874287B004) Diagram
#
1
RIVET(50)
7621340
$0.56
2
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
3
BOOT,TIEROD,RH,XTRA
5411123
$20.22
4
ROD END, RH.
7060165
$48.56
4
ROD END, LH.
7060164
$48.56
4
ROD END, RH.
7060165
$48.56
4
ROD END, LH.
7060164
$48.56
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
7
ROD-DRAG LINK
5332712
Unavailable
8
BOLT(10)
7512404
$3.99
8
BOLT(10)
7512404
$3.99
9
NUT FLEX-LOC(10)
7542303
$6.39
10
CLIP(10)
7080278
$2.63
10
CLIP(10)
7080278
$2.63
11
HOOP,STEERING
1012369-067
Unavailable
12
FITTING,LUB/VEN(10)
7080561
$4.79
13
BOLT,(10)
7517428
$2.39
14
RIVET-3/16-.090-.290
7661637
$1.49
15
NUT, LOCK(10)
7542103
$5.59
16
BOLT-CARRIAGE(10)
7512275
$3.99
17
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
18
TIEROD,BLK
5020856-067
Unavailable
19
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
19
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
19
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
19
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
19
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
19
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
20
POP RIVET(50)
7621323
$1.49
21
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
22
CLIP, PLASTIC(10)
4020139
$4.79
23
BLOCK,STRG,(CAST)
5630563
$32.37
24
BOLT(10)
7512682
Unavailable
25
WASHER,WAVE(10)
7555735
$3.99
26
BUSHING
3563907
$3.99
26
BUSHING
3563907
$3.99
27
O RING
5410463
$6.99
28
WASHER(10)
7555721
$1.49
29
PIN COTTER(10)
7661203
$1.49
30
NUT FLEX,(10)
7542703
Unavailable
31
STRG.ASM,CTR. (Incl. 9,12)
1822286
$29.60
32
ZERK,FITTING,THREADED(10)
7080433
$1.49
