OIL TANK / AIR BOX SUPER SPORT 0980761 (4942874287C003)

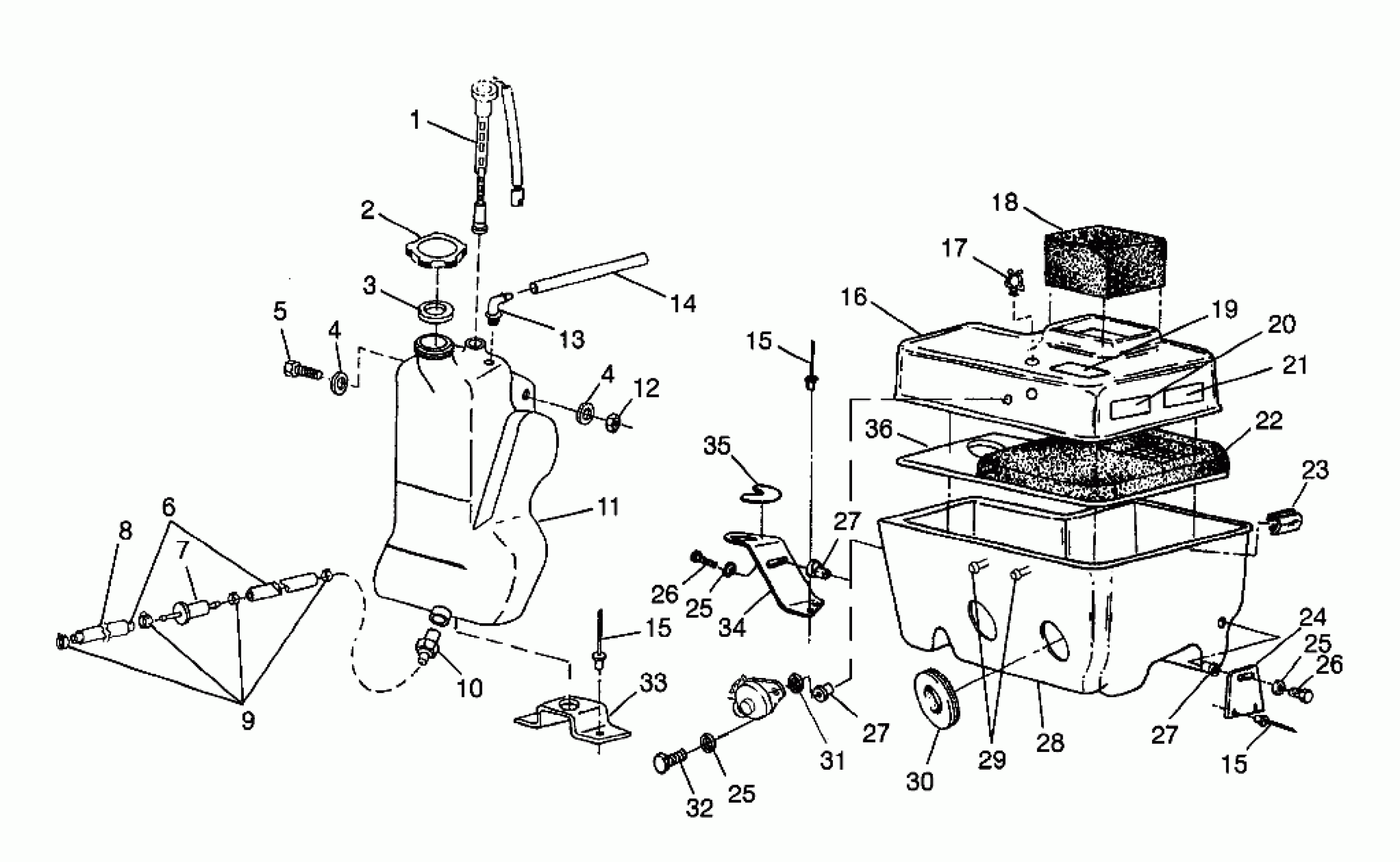

Polaris SUPER SPORT - 0980761 OIL TANK / AIR BOX SUPER SPORT 0980761 (4942874287C003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CONDUIT,CONVOL(6 CM) Substituted by 4010051-15
4010051-06
Unavailable
9
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
10
FITTING, OUTLET
7052042
$8.99
11
Tank, Oil
5431437
Unavailable
12
NUT-LOCK(10)
7542122
$1.49
13
FITTING,90 DEG,1/8,(10)
7052095
$4.79
14
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
14
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
COVER,SILENCER,DRILLED
5432243
Unavailable
17
CLIP, PLASTIC(10)
4020139
$4.79
18
INTAKE ASM, FOAM
1253107
$36.41
19
DECAL,CAUTION,AIRBOX
7075351
Unavailable
20
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
21
DECAL, GREASING [No Longer Available]
7073426
$7.27
22
BAFFLE ASM. (Incl. 36)
1253102
$64.75
23
CLIP, AIR BOX,(10)
7670055
$7.99
24
BRACKET, SILENCER
5211274
$9.70
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
26
SCREW(10)
7512279
$1.49
26
SCREW(10)
7512279
$1.49
27
NUT-WELL(10)
7541923
$5.59
27
NUT-WELL(10)
7541923
$5.59
27
NUT-WELL(10)
7541923
$5.59
28
SILENCER,INTAKE,DRILLED
5432133
Unavailable
29
FITTING,(10)
7052077
$6.39
30
BOOT
5410403
$12.99
31
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
32
SCREW(10)
7512222
$2.39
33
BRKT,OILTANK,COINED
5241334
$9.70
34
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
35
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
36
PLATE,AIR SILENCER
5850075
$24.27
