FRONT SUSPENSION and SKI - 0980761 (4942874287B001)

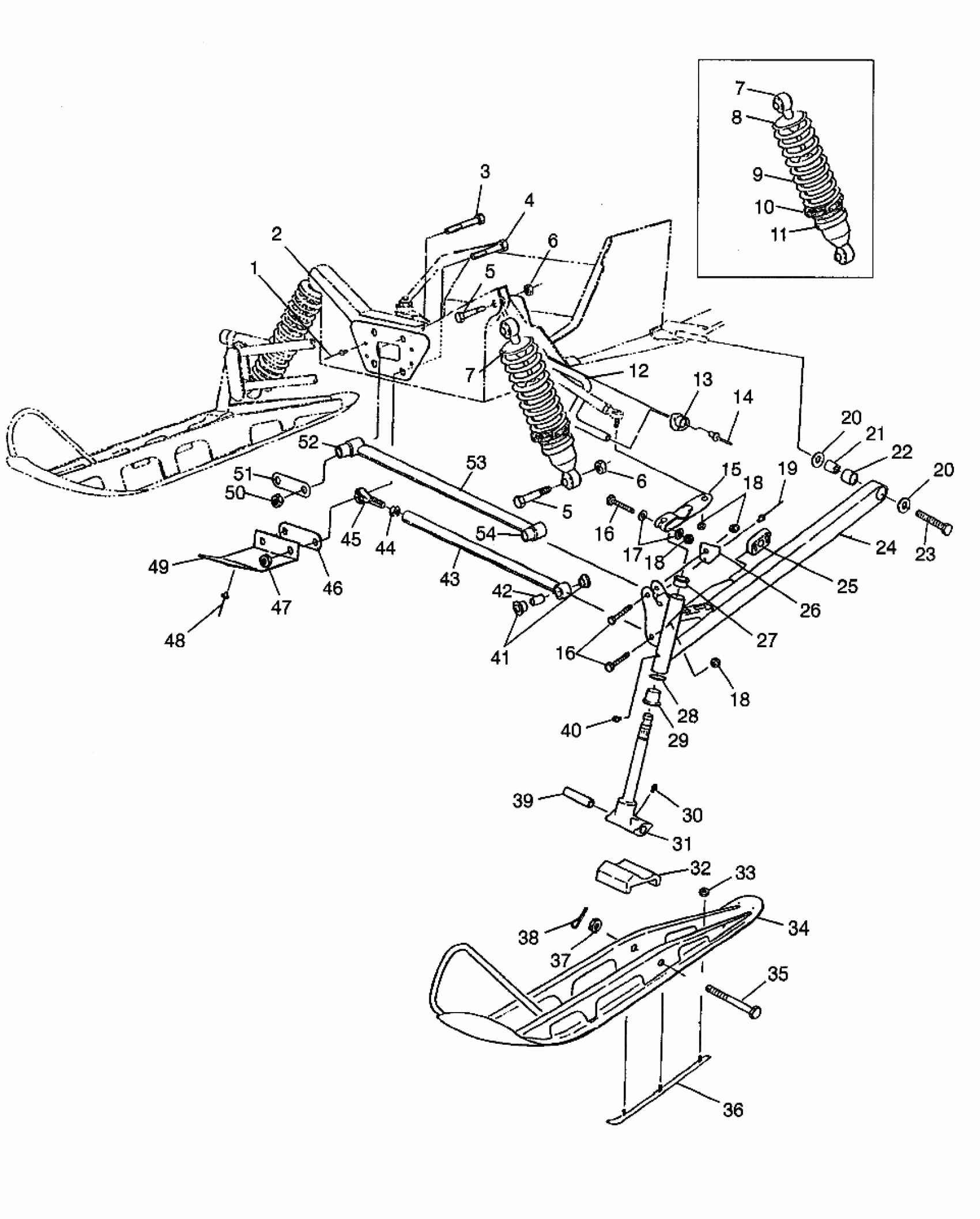

Polaris SUPER SPORT - 0980761 FRONT SUSPENSION and SKI - 0980761 (4942874287B001) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,FR.BULKHEAD,BLK [No Longer Available]
5242117-067
Unavailable
3
BOLT(10)
7512582
$8.79
4
BOLT(10)
7512684
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
7
SHOCK,GAS,IFS,SELECT
7041496
Unavailable
7
SHOCK,GAS,IFS,SELECT
7041496
Unavailable
8
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
9
SPRING,COMP,IFS
7041552-067
$44.51
10
RING,SPRING PRELOAD ADJ.
5431734
$52.60
11
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
12
BAR,SWAY,9/16,X-10,BLK
5224743-067
$70.39
13
BUSHING,SWAY BAR
5432412
$15.99
14
RIVET(50)
7621433
$1.49
15
ARM,STRG,BLK
5241560-067
Unavailable
16
BOLT(10) Substituted by 7517583
7515491
Unavailable
16
BOLT(10) Substituted by 7517583
7515491
Unavailable
17
WASHER(10) Substituted by 7555832
7555851
Unavailable
18
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
18
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
18
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
19
RIVET(50) Substituted by 7661130
7661643
Unavailable
20
WASHER(10)
7555721
$1.49
20
WASHER(10)
7555721
$1.49
21
TUBE, BUSHING
5010310
$9.70
22
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
23
BOLT(10)
7512557
$7.60
24
ARM,TRLG,LH Substituted by 2201319 (Incl. 21,22)
1822366
$344.99
24
ARM,TRLG,RH Substituted by 2201320 (Incl. 21,22)
1822367
Unavailable
25
SLIDE,SWAYBAR,9/16
5432332
$32.37
26
STOP,LH,STRG,BLK.
5241569-067
$7.27
26
STOP,RH,STRG,BLK.
5241570-067
$7.27
27
BUSHING-FLANGE
3573909
$2.39
28
WASHER SPECIAL(10)
7556509
$1.59
29
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
30
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
31
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
32
Stop, Rubber
5411083
$12.94
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
SKI WELD
1820430-067
Unavailable
35
BOLT(10)
7515462
$8.79
36
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
37
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
38
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
39
BUSHING,PIVOT,(10)
5010158
$19.99
40
ZERK,FITTING,THREADED(10)
7080433
$1.49
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD,LOWER,BLK
1822410-067
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
ROD END Substituted by 7061027
7060162
$48.56
46
STRAP,SPACER BOTTOM
5211345
$12.99
47
NUT FLEX,(10)
7542703
Unavailable
48
RIVET(50)
7621452
$1.49
49
BRACE,PAN,LOWER
5242224-067
Unavailable
50
NUT, LOCK,(10)
7542503
$10.39
51
STRAP,SPACER TOP
5211344
$7.27
52
BUSHING,PIVOT,7/16
5411095
$15.99
53
ROD,RAD.UPPER,FIXED
1822435
$49.21
54
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
