ENGINE MOUNTING SUPER SPORT 0980761 (4942874287C001)

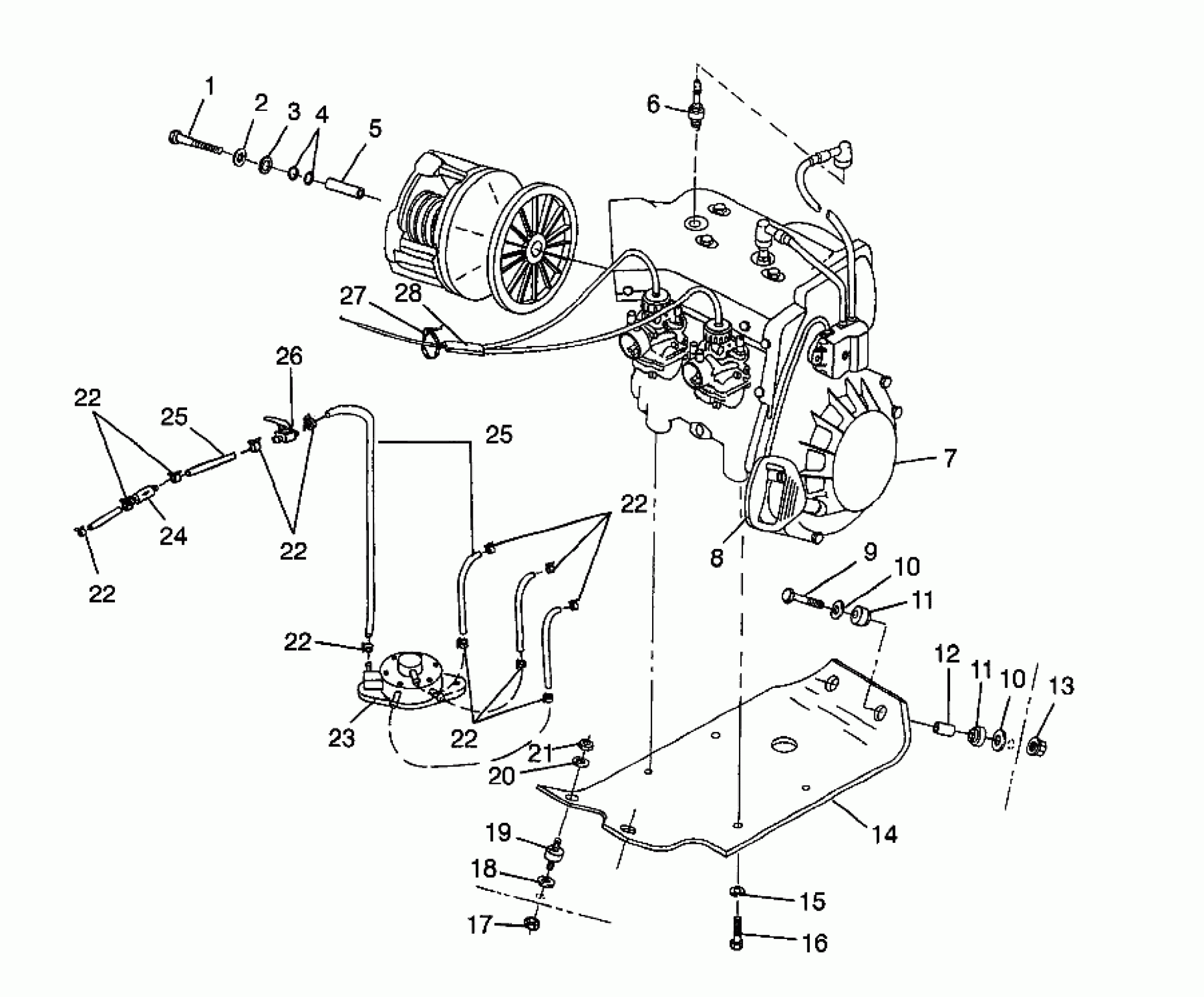

Polaris SUPER SPORT - 0980761 ENGINE MOUNTING SUPER SPORT 0980761 (4942874287C001) Diagram
#
Description
Price
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.(S.B.)EC50PM-01/02 [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization
3084625
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,MTR.MT,LWT
5131772
$108.99
15
WASHER LOCK(10)
7553101
$3.99
16
BOLT(10)
7512539
$3.99
17
NUT,FLEXLOCK,(10)
7547008
$6.39
18
WASHER,FLAT(10)
7555915
$3.19
19
MOUNT,ENG.
3110061
$84.99
20
WASHER(10) Substituted by 7555806
7555720
$0.79
21
NUT FLEX LOC,(10)
7542402
$6.39
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
23
Asm., Fuel Pump, Non-Asbestos (See Pg. A35, Ref. 2)
-------
Unavailable
24
FILTER FUEL,(10)
2530008
$4.84
25
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
25
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
26
VALVE,FUEL SHUT-OFF
7052060
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
CABLE,THROTTLE,W/OIL
7080552
Unavailable
