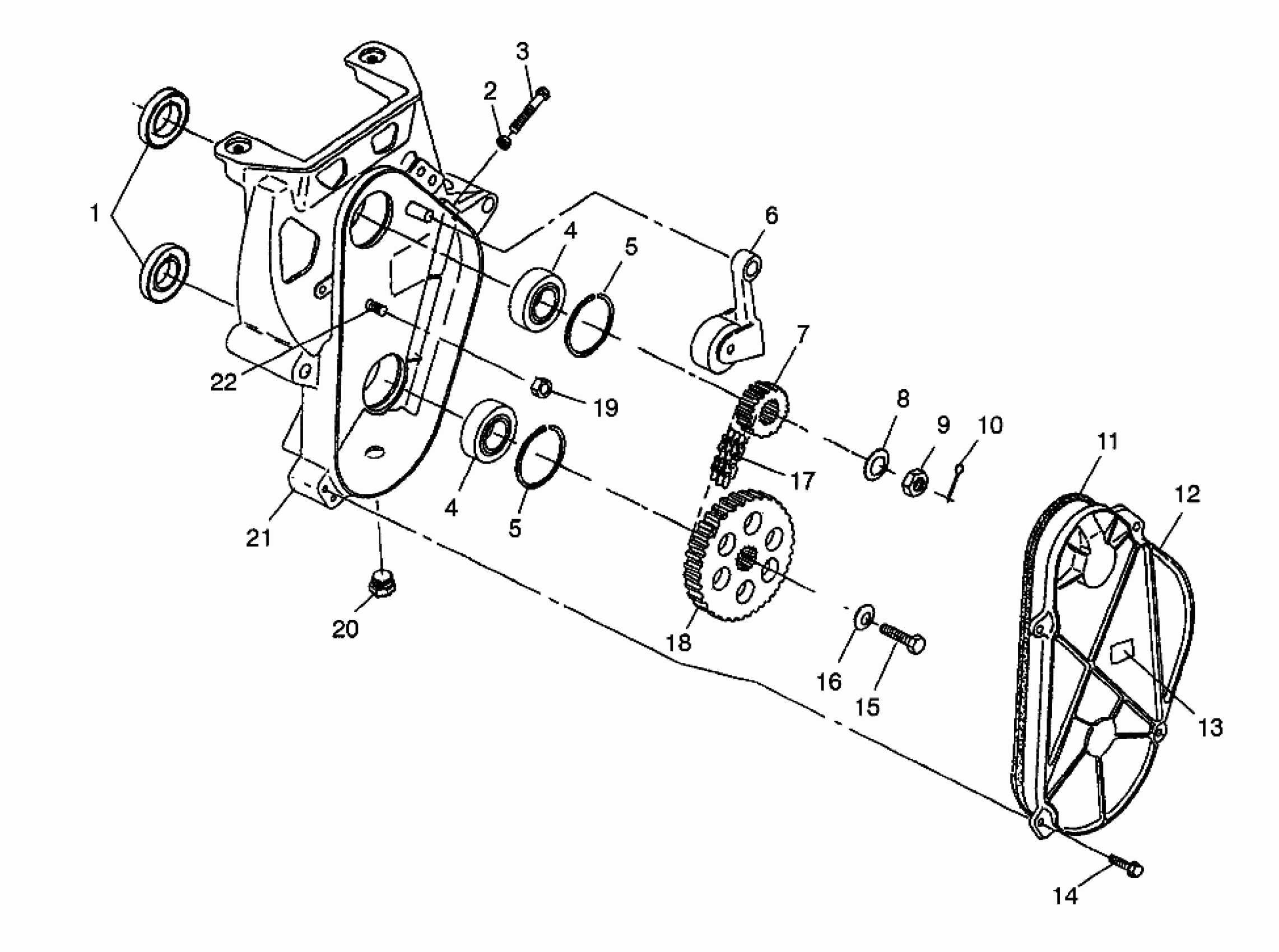

Polaris SUPER SPORT - 0980761 CHAINCASE - 0980761 (4942874287B006) Diagram
#
Description
Price
1
SEAL-OIL
3610030
$20.22
2
NUT(10)
7542404
$1.59
3
SCREW(10)
7515511
$3.99
4
BEARING,BALL
3514309
$15.87
4
BEARING,BALL
3514309
$15.87
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
PIN,CHAIN TIGHTENER
7662210
Unavailable
6
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
6
BEARING
3553002
$11.99
6
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
6
WHEEL,C/C IDLER
5630123
Unavailable
6
WASHER THRUST(10)
7558702
$1.59
7
SPKT,22T,3/4W,15T SPLINE Substituted by 2900006 (3/4W)
3221089
Unavailable
8
WASHER, SLOTTED(10)
7571620
$7.19
9
NUT
7542811
Unavailable
10
COTTER PIN(10)
7661401
$1.49
11
GASKET-CHAINCASE
5410277
$24.99
12
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
13
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
14
SCREW(10)
7512242
$2.39
15
SCREW(10)
7515350
$3.97
16
WASHER(10)
7571618
$6.39
17
CHAIN,68P,3/4W,HYVO Substituted by 3221112 (3/4W)
3224070
Unavailable
18
SPKT,41T,3/4W,15T SPL,HYVO Substituted by 2900014 (3/4W)
3222095
Unavailable
19
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
20
PLUG(10) (Incl. O-Ring)
7052115
$5.65
21
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
22
BOLT(10)
7515477
$34.99
