PISTON and CRANKSHAFT SUPER SPORT 0970761 (4937643764C007)

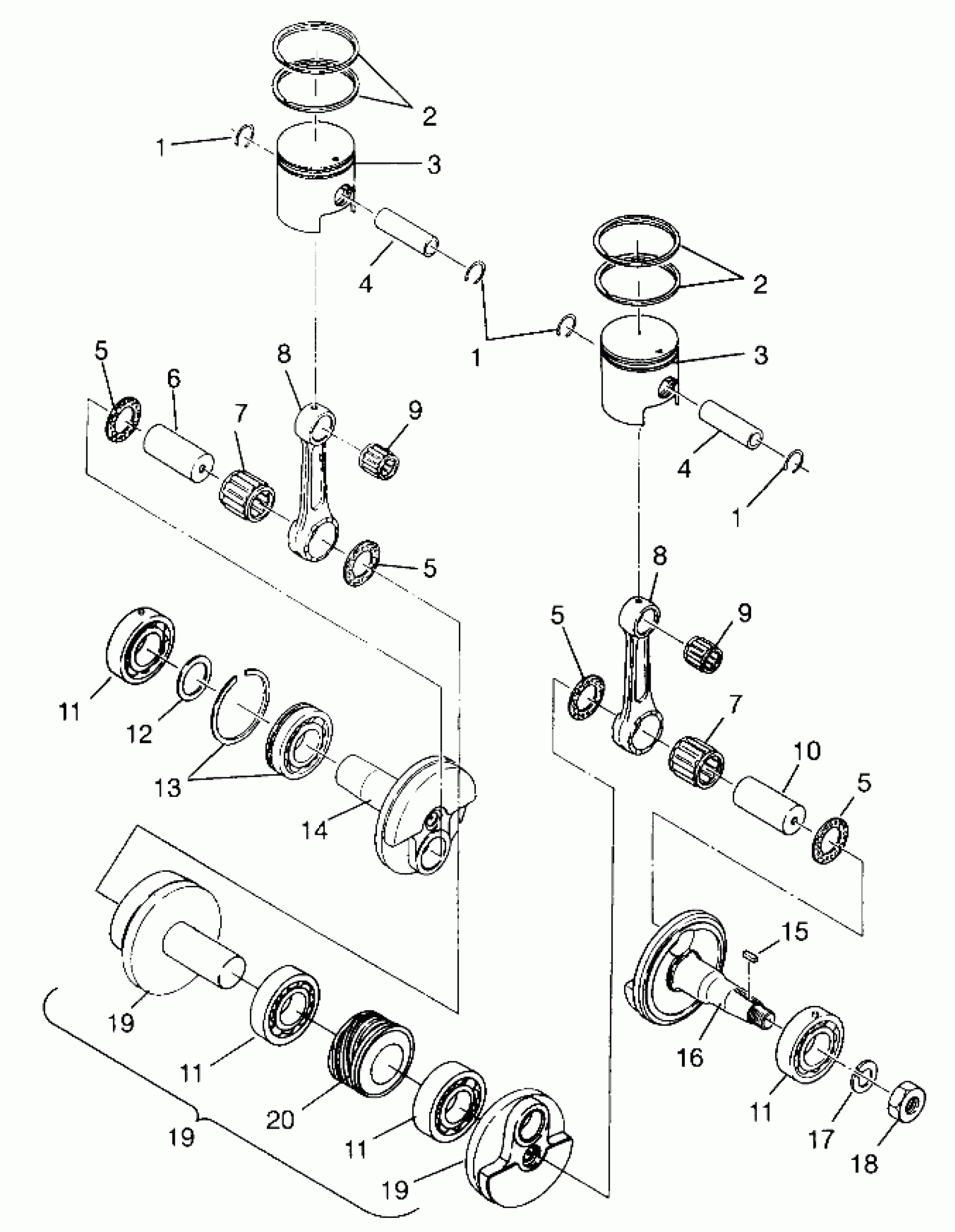

Polaris SUPER SPORT - 0970761 PISTON and CRANKSHAFT SUPER SPORT 0970761 (4937643764C007) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING, PISTON (Standard)
3083546
Unavailable
2
RING,.020 O/S (0.50mm/.020" O/S)
3083717
$28.56
2
RING,.010 O/S (0.25mm/.010" O/S)
3083678
Unavailable
2
RING, PISTON (Standard)
3083546
Unavailable
2
RING,.020 O/S (0.50mm/.020" O/S)
3083717
$28.56
2
RING,.010 O/S (0.25mm/.010" O/S)
3083678
Unavailable
3
PISTON ASM. (Standard)
3083841
Unavailable
3
PISTON ASM, (.020) (0.50m/.020" O/S)
3083842
Unavailable
3
PISTON,(.010 O/S) (0.25m/.010" O/S)
3084600
Unavailable
3
PISTON ASM. (Standard)
3083841
Unavailable
3
PISTON ASM, (.020) (0.50m/.020" O/S)
3083842
Unavailable
3
PISTON,(.010 O/S) (0.25m/.010" O/S)
3084600
Unavailable
4
Pin, Piston
3083838
$27.99
4
Pin, Piston
3083838
$27.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
7
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
7
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
8
ROD-CONNECTING
3083252
$164.99
8
ROD-CONNECTING
3083252
$164.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
PIN,CRANK
3083233
$36.41
11
BEARING,BALL
3084601
$49.99
11
BEARING,BALL
3084601
$49.99
11
BEARING,BALL
3084601
$49.99
11
BEARING,BALL
3084601
$49.99
12
SPACER,CRANKSHAFT
3080447
$1.99
13
BEARING, BALL
3084587
Unavailable
14
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
15
KEY
3081447
Unavailable
16
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
16
CRANKSHAFT ASM. Substituted by 3084585 (Incl. 5-8, 10-14, 19, 16)
3084369
Unavailable
17
WASHER-SPRING(10)
3083094
$3.17
18
NUT
3083093
$19.99
19
CRANKSHAFT, CTR. (Incl. 6, 10)
3084370
Unavailable
19
CRANKSHAFT, CTR. (Incl. 6, 10)
3084370
Unavailable
19
CRANKSHAFT, CTR. (Incl. 6, 10)
3084370
Unavailable
20
DRIVEGEAR,OILPUMP
3083780
$107.99
