FRONT SUSPENSION and SKI SUPER SPORT 0970761 (4937643764B001)

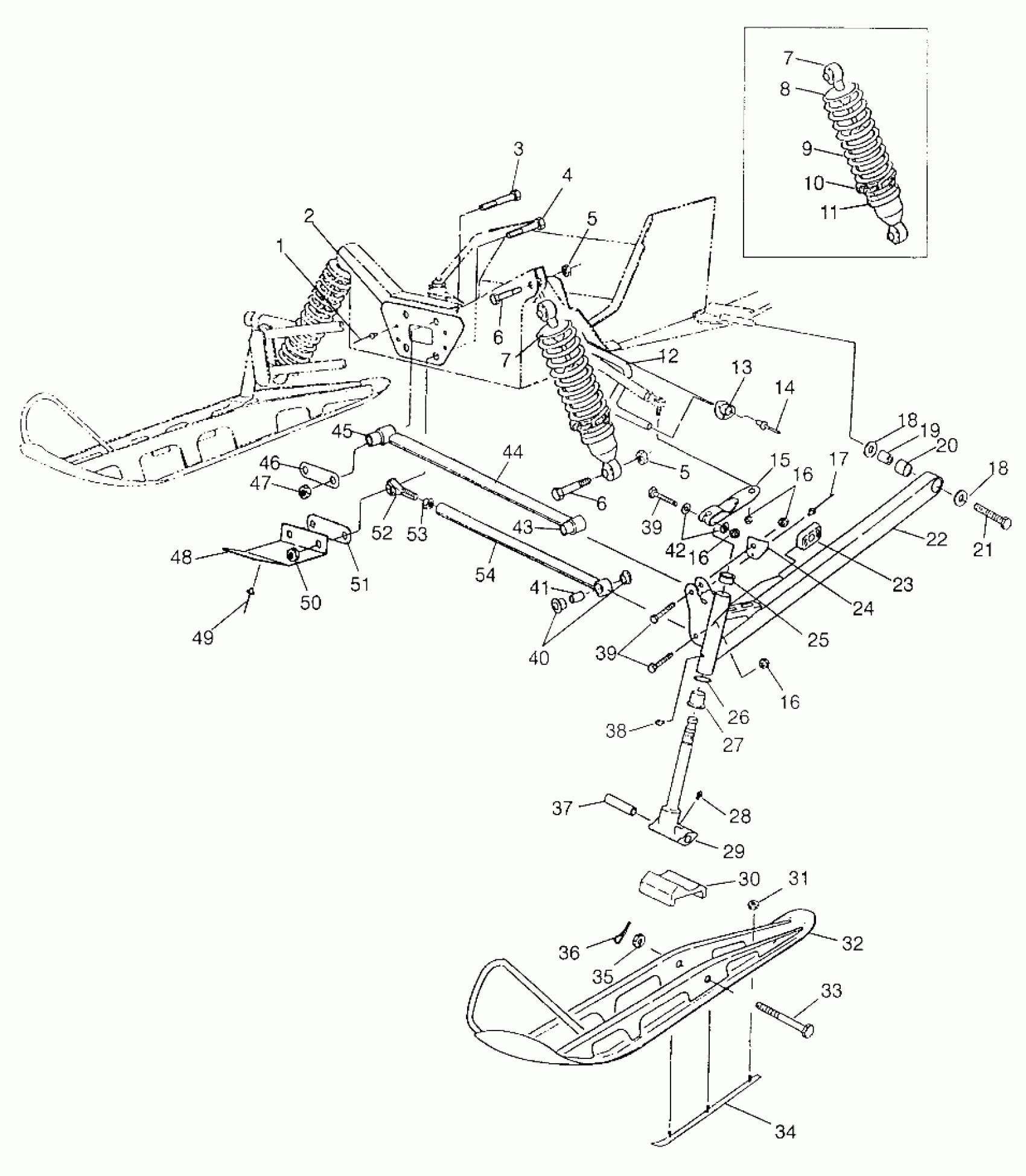

Polaris SUPER SPORT - 0970761 FRONT SUSPENSION and SKI SUPER SPORT 0970761 (4937643764B001) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
BOLT(10)
7512582
$8.79
4
BOLT(10)
7512684
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
SHOCK,GAS,IFS,SELECT
7041496
Unavailable
7
SHOCK,GAS,IFS,SELECT
7041496
Unavailable
8
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
9
SPRING,COMP,.BLK.
7041396-067
Unavailable
10
RING,SPRING PRELOAD ADJ.
5431734
$52.60
11
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
12
BAR,SWAY,9/16,X-10,BLK
5224743-067
$70.39
13
BUSHING,SWAY BAR
5432412
$15.99
14
RIVET(50)
7621433
$1.49
15
ARM,STRG,BLK
5241560-067
Unavailable
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
RIVET(50) Substituted by 7661130
7661643
Unavailable
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
20
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
21
BOLT(10)
7512557
$7.60
22
ARM,TRLG,LH Substituted by 2201319 (Incl. 19, 20)
1822366
$344.99
22
ARM,TRLG,RH Substituted by 2201320 (Incl. 19, 20)
1822367
Unavailable
23
SLIDE,SWAYBAR,9/16
5432332
$32.37
24
STOP,LH,STRG,BLK.
5241569-067
$7.27
24
STOP,RH,STRG,BLK.
5241570-067
$7.27
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
29
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
30
Stop, Rubber
5411083
$12.94
31
NUT-5/16-18 NYLOK-Y
7542324
$1.49
32
SKI WELD
1820430-067
Unavailable
33
BOLT(10)
7515462
$8.79
34
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
35
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
36
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
37
BUSHING,PIVOT,(10)
5010158
$19.99
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
WASHER(10) Substituted by 7555832
7555851
Unavailable
43
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
44
ROD,RAD.UPPER,FIXED
1822435
$49.21
45
BUSHING,PIVOT,7/16
5411095
$15.99
46
STRAP,SPACER TOP
5211344
$7.27
47
NUT, LOCK,(10)
7542503
$10.39
48
BRACE, PAN
5223997-067
Unavailable
49
RIVET(50)
7621452
$1.49
50
NUT FLEX,(10)
7542703
Unavailable
51
STRAP,SPACER BOTTOM
5211345
$12.99
52
ROD END Substituted by 7061027
7060162
$48.56
53
NUT-JAM(10)
7542711
$2.39
54
ROD,RAD,LOWER,BLK
1822410-067
Unavailable
