CARBURETOR SUPER SPORT 0970761 (4937643764C010)

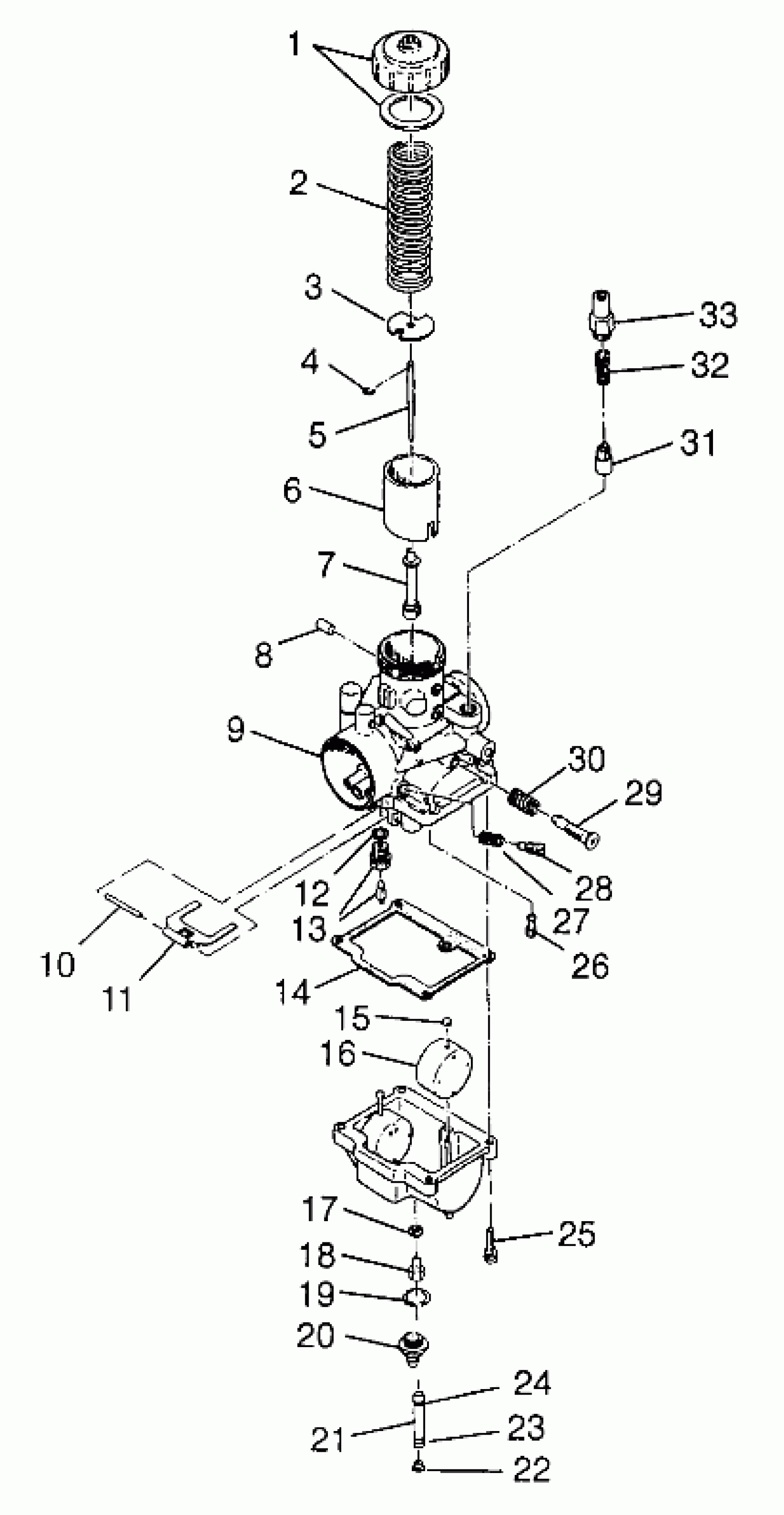

Polaris SUPER SPORT - 0970761 CARBURETOR SUPER SPORT 0970761 (4937643764C010) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (6DH7-3)
3130329
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
JET,NEEDLE,(O-8) (O-8) 480
3130693
Unavailable
8
CAP
3130479
$14.56
9
CARBURETOR (Incl. 1-19, 25-33)
3130690
Unavailable
10
PIN, FLOAT
3130361
$8.89
11
ARM,FLOAT
3130018
$24.27
12
PACKING(10)
3130017
$4.03
13
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM.
3130430
$43.56
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,#250(10) (#250)
3130637
$7.27
19
O RING
3130239
Unavailable
20
NIPPLE
3130573
$32.37
21
FUEL LINE, 5 FT.
8450045-153
Unavailable
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#45(10) (#45)
3130068
$8.89
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
SCREW,THROTTLE STOP
3130009
$19.99
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
PLUNGER ASM, STARTER
3130328
$32.37
32
SPRING,PLUNGER
3130006
$8.89
33
HOLDER,GUIDE
3130199
$28.32
