HOOD ASSEMBLY SUPER SPORT 0950743 (4928882888A010)

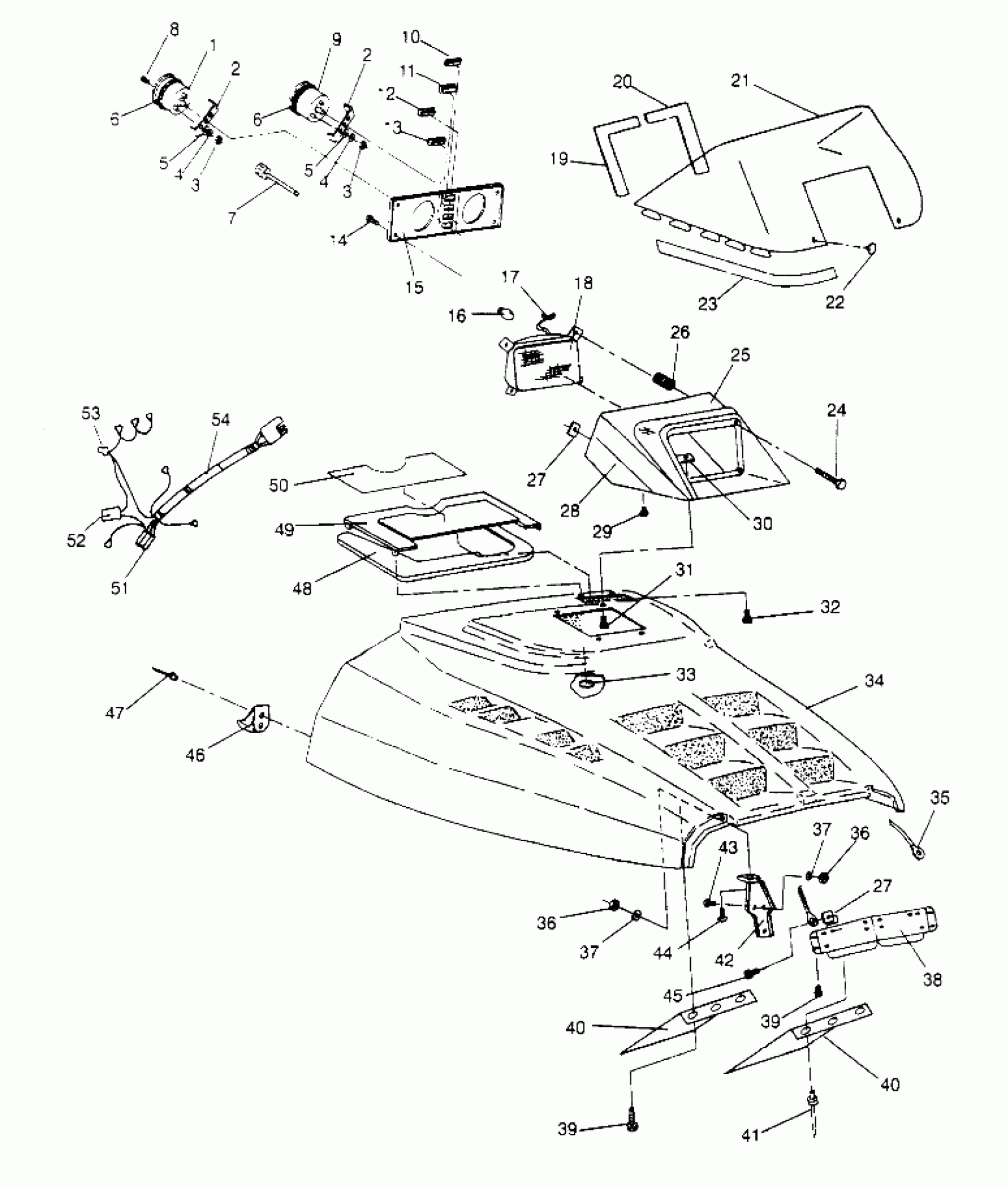

Polaris SUPER SPORT - 0950743 HOOD ASSEMBLY SUPER SPORT 0950743 (4928882888A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACHOMETER,BACKLIT(2P) (Incl. 2, 3)
3280149
Unavailable
2
BRKT,SPEEDO/TACH
3280153
Unavailable
2
BRKT,SPEEDO/TACH
3280153
Unavailable
3
Nut
3280158
Unavailable
3
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,SPLIT LOCK
3280156
$1.49
5
WASHER,FLAT,(10)
3280157
$2.39
5
WASHER,FLAT,(10)
3280157
$2.39
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
CABLE,SPEEDO.
3280094
$60.70
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDOMETER,BACKLIT (Incl. 2, 3)
3280148
Unavailable
10
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
11
INDICATOR,'ACC'WARN.
4040014
Unavailable
12
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
13
PLUG,INDIC.HOLE
5430967
$5.65
14
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
15
BEZEL, INST.
5430924
Unavailable
16
BULB, H/L
4030028
$29.99
17
RETAINER,H/L BULB
4032063
Unavailable
18
HEADLIGHT ASM.
4032038
Unavailable
19
PAD, W/S
5810415
Unavailable
20
PAD, W/S, LH
5810414
Unavailable
21
WINDSHIELD,LOW,WHITE
5431712
Unavailable
22
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
23
Decal - Windshield Stripe (See Pg. A12, Ref. 26)
-------
Unavailable
24
SCREW, ADJ.(10)
4032003
Unavailable
25
HSG,INST.TOP,WHITE
5430923-133
Unavailable
26
SPRING-ADJ
4032002
Unavailable
27
NUT, SPEED(10)
7670056
Unavailable
27
NUT, SPEED(10)
7670056
Unavailable
28
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
29
SCREW(10)
7512009
Unavailable
30
NUT, SPEED(10)
7670057
$1.49
31
SCREW, SEMS(10)
7512283
$3.99
32
SCREW(10)
7511840
Unavailable
33
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
34
HOOD ASM,WHITE,(94 SS) Substituted by 2631735-133 (Incl. Foam, Foil & Warning Decals)
2631573-133
Unavailable
35
CABLE,HD.RETAINER
7080360
$24.27
36
NUT-LOCK(10)
7542122
$1.49
36
NUT-LOCK(10)
7542122
$1.49
37
WASHER,WROUGHT(10)
7558302
$1.59
37
WASHER,WROUGHT(10)
7558302
$1.59
38
PLATE,RE-INF.,(HD.)
5222105
$49.51
39
SCREW(10)
7511861
Unavailable
39
SCREW(10)
7511861
Unavailable
40
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
40
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
41
POP RIVET(50)
7621425
$1.49
42
HINGE ASM,HD,WHITE
2635005-133
$15.70
43
BOLT(10)
7512193
$2.39
44
BOLT-CARRIAGE(10)
7512263
$3.99
45
SCREW(10)
7511989
Unavailable
46
CUP, HOOD LATCH,(10)
5430733
$4.84
47
RIVET(50)
7621334
$1.49
48
SEAL, INTAKE
5810597
Unavailable
49
PANEL ASM,INTAKE,BR,WHITE Substituted by 2620091-133
2620078-133
Unavailable
50
DECAL,DASH WARNING Substituted by 7075457
7074883
Unavailable
51
HOUSING
4020052
Unavailable
52
Housing
4020115
$1.59
53
HOUSING
4020114
Unavailable
54
HARNESS, HEADLIGHT
2460383
Unavailable
