ENGINE MOUNTING SUPER SPORT 0950743 (4928882888C001)

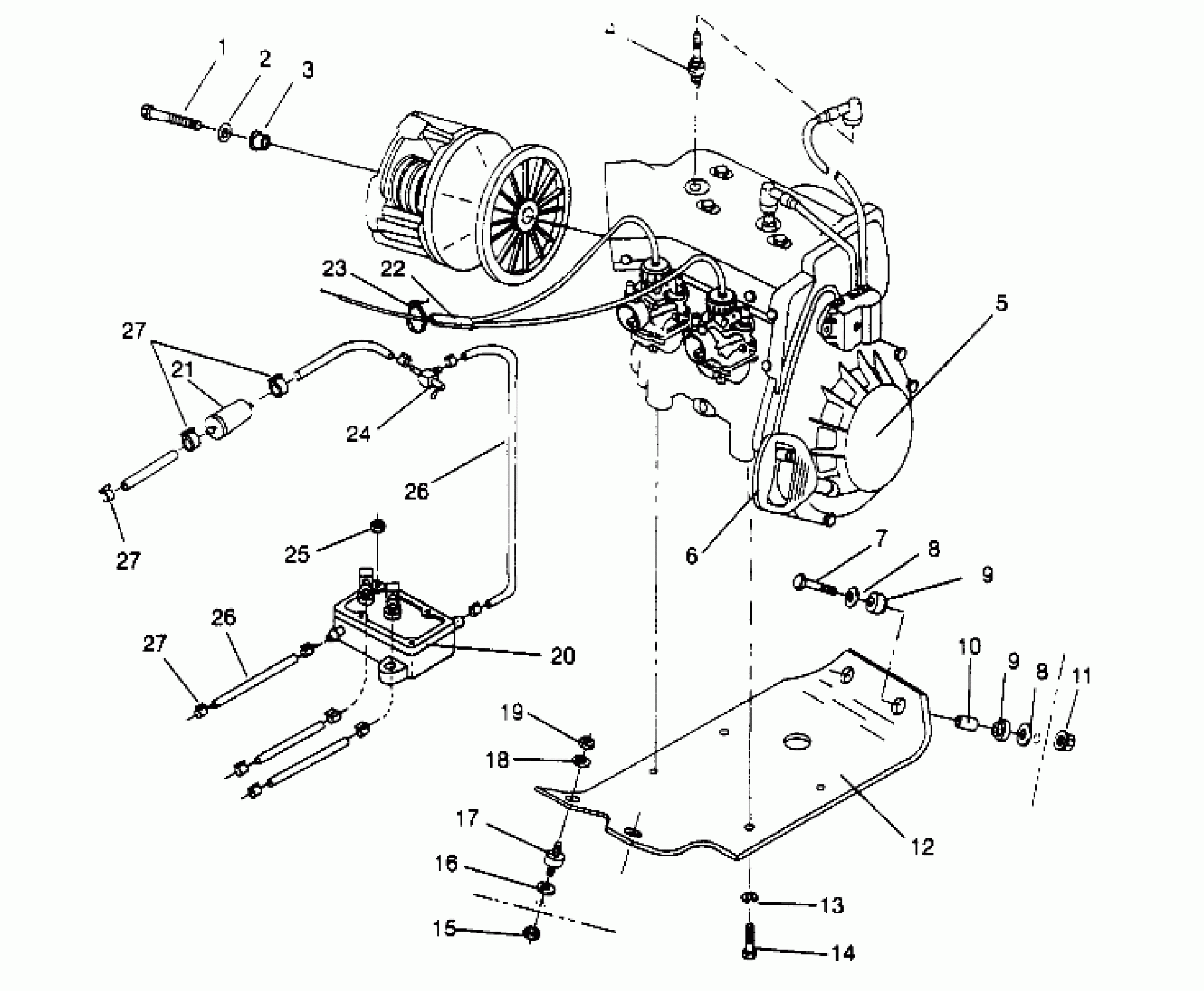

Polaris SUPER SPORT - 0950743 ENGINE MOUNTING SUPER SPORT 0950743 (4928882888C001) Diagram
#
Description
Price
1
BOLT(10)
7512566
$30.79
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
SPARKPLUG (10)
3070156
$3.99
5
ENG.(S.B.)EC44-3PM025 [No Longer Available]
3084623
Unavailable
6
HANDLE-RECOIL
5430520
Unavailable
7
SCREW(10)
7512530
$5.59
8
WASHER(10)
7555740
$1.59
8
WASHER(10)
7555740
$1.59
9
MOUNT, ENGINE
5410390
Unavailable
9
MOUNT, ENGINE
5410390
Unavailable
10
TUBE,SPACER
5333354
Unavailable
11
NUT,FLANGE(10)
7542522
$5.59
12
PLATE,MTR.MT. Substituted by 5131192
5131099
Unavailable
13
WASHER LOCK(10)
7553101
$3.99
14
BOLT(10)
7512539
$3.99
15
NUT LOCK(10)
7542411
$3.19
16
WASHER(10)
7555721
$1.49
17
MOUNT
3110022
Unavailable
18
WASHER(10) Substituted by 7555806
7555720
$0.79
19
NUT-LOCK(10)
7542439
$1.49
20
Asm., Fuel Pump (See Pg. A35, Ref. 1)
-------
Unavailable
21
FILTER FUEL,(10)
2530008
$4.84
22
CABLE,THROTTLE,W/OIL
7080552
Unavailable
23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
24
VALVE,FUEL SHUT-OFF
7052060
Unavailable
25
NUT-LOCK(10)
7542122
$1.49
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
