CARBURETOR ASSEMBLY SUPER SPORT 0950743 (4928882888C008)

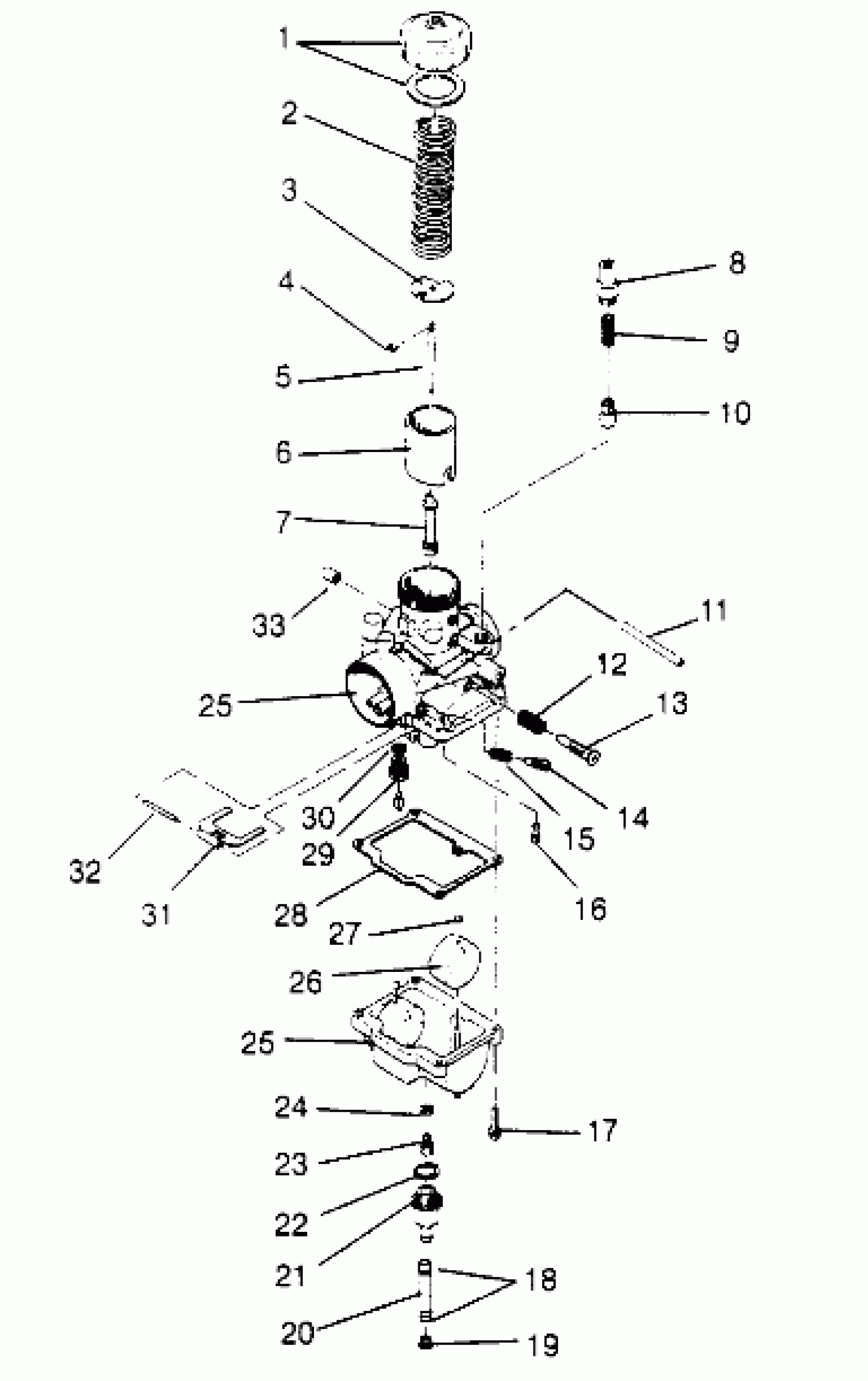

Polaris SUPER SPORT - 0950743 CARBURETOR ASSEMBLY SUPER SPORT 0950743 (4928882888C008) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE,(6FJ6-3) (6FJ6-3)
3130481
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
NEEDLE JET (166)
3130421
Unavailable
8
HOLDER,GUIDE
3130199
$28.32
9
SPRING,PLUNGER
3130006
$8.89
10
PLUNGER ASM, STARTER
3130328
$32.37
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP,SPRING,(10)
7080534
$1.59
19
PLUG,TRAP
5431893
$12.94
20
FUEL LINE, 5 FT.
8450045-153
Unavailable
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD#180(10) (#180)
3130119
Unavailable
24
WASHER (10)
3130014
$1.59
25
CARBURETOR ASM. (Incl. 1-17, 22-33)
3130547
Unavailable
25
CARBURETOR ASM. (Incl. 1-17, 22-33)
3130547
Unavailable
26
FLOAT ASM.
3130430
$43.56
27
CAP,(10)
3130237
$4.03
28
PACKING,FLOAT CHAMBER
3130020
$16.17
29
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
30
PACKING(10)
3130017
$4.03
31
ARM,FLOAT
3130018
$24.27
32
PIN, FLOAT
3130361
$8.89
33
CAP
3130479
$14.56
