HOOD ASSEMBLY SUPER SPORT 0940743 (4927742774005A)

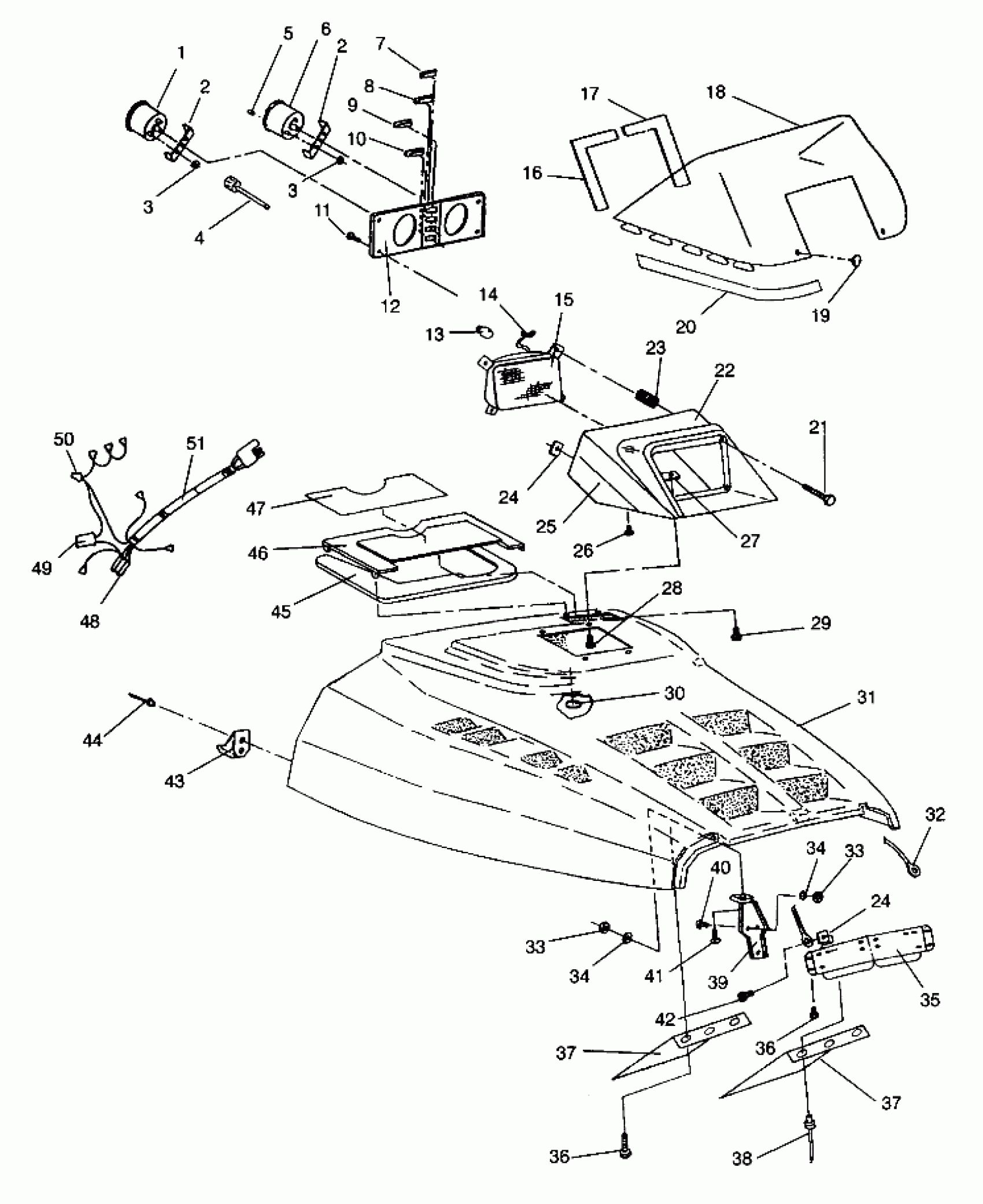

Polaris SUPER SPORT - 0940743 HOOD ASSEMBLY SUPER SPORT 0940743 (4927742774005A) Diagram
#
1
TACHOMETER (Incl. 2,3)
3280093
Unavailable
2
BRACKET
3280098
Unavailable
2
BRACKET
3280098
Unavailable
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
CABLE,SPEEDO.
3280094
$60.70
5
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
6
Desc not available [No Longer Available]
3280012
Unavailable
7
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
8
INDICATOR,'ACC'WARN.
4040014
Unavailable
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
PLUG,INDIC.HOLE
5430967
$5.65
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB, H/L
4030028
$29.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032038
Unavailable
16
PAD, W/S
5810415
Unavailable
17
PAD, W/S, LH
5810414
Unavailable
18
WINDSHIELD,LOW,WHITE
5431712
Unavailable
19
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
20
Decal - Windshield Stripe (See Pg. A11, Ref. 1)
-------
Unavailable
21
SCREW, ADJ.(10)
4032003
Unavailable
22
HSG,INST.TOP,WHITE
5430923-133
Unavailable
23
SPRING-ADJ
4032002
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
26
SCREW(10)
7512009
Unavailable
27
NUT, SPEED(10)
7670057
$1.49
28
SCREW, SEMS(10)
7512283
$3.99
29
SCREW(10)
7511840
Unavailable
30
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
31
HOOD ASM,WHITE,(94 SS) Substituted by 2631735-133 (Incl. Foam, Foil & Warning Decals)
2631573-133
Unavailable
32
CABLE,HD.RETAINER
7080360
$24.27
33
NUT-LOCK(10)
7542122
$1.49
33
NUT-LOCK(10)
7542122
$1.49
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
PLATE,RE-INF.,(HD.)
5222105
$49.51
36
SCREW(10)
7511861
Unavailable
36
SCREW(10)
7511861
Unavailable
37
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
37
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
38
POP RIVET(50)
7621425
$1.49
39
HINGE ASM,HD,WHITE
2635005-133
$15.70
40
BOLT(10)
7512193
$2.39
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
SCREW(10)
7511989
Unavailable
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL ASM,INTAKE,BR,WHITE Substituted by 2620091-133
2620078-133
Unavailable
47
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
48
HOUSING
4020052
Unavailable
49
Housing
4020115
$1.59
50
HOUSING
4020114
Unavailable
51
HARNESS, HEADLIGHT
2460383
Unavailable
