FRONT SUSPENSION and SKI SUPER SPORT 0940743 (4927742774011A)

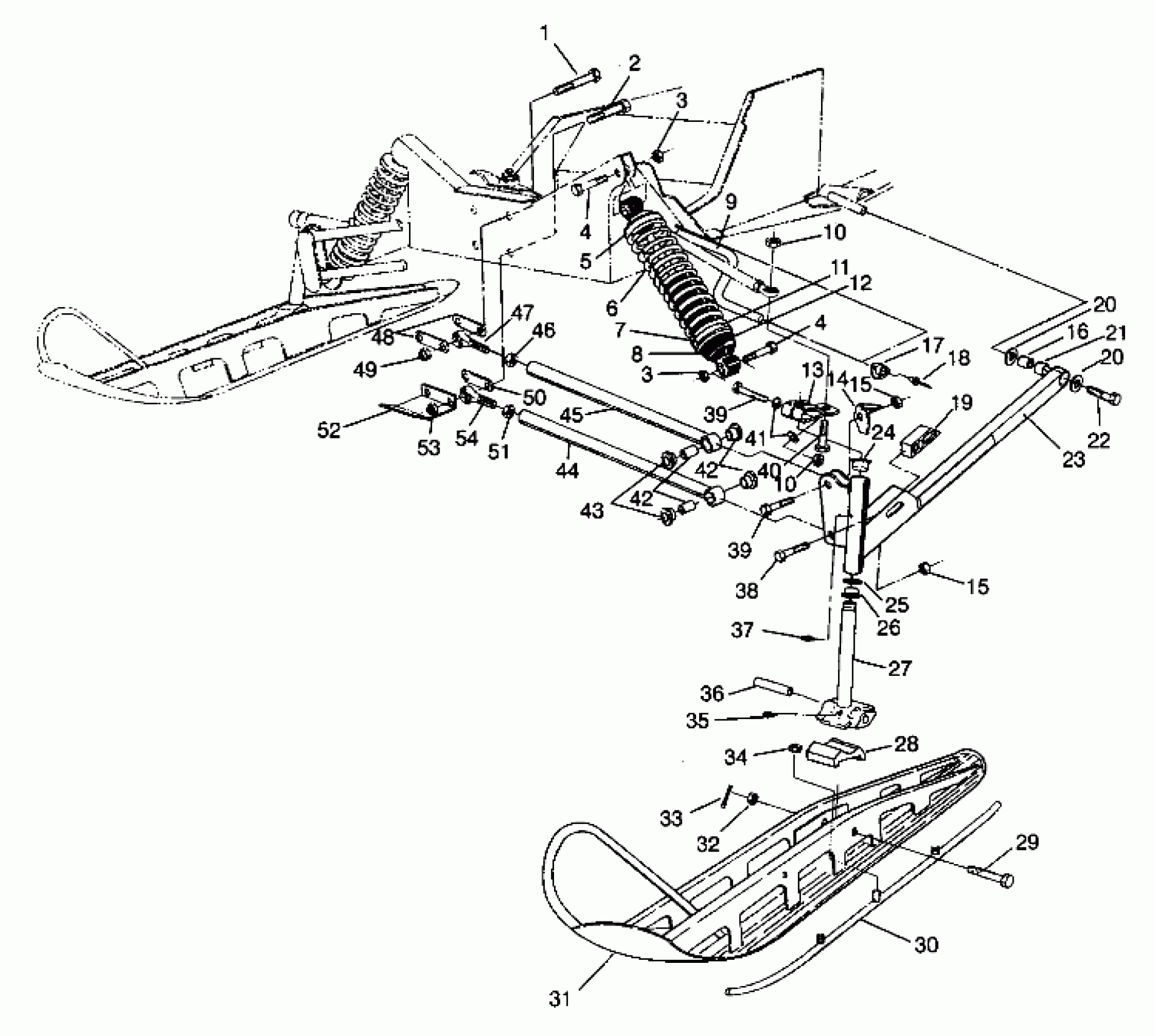

Polaris SUPER SPORT - 0940743 FRONT SUSPENSION and SKI SUPER SPORT 0940743 (4927742774011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FRONT
7041251
Unavailable
9
BAR,SWAY,9/16,BLK.
5224476-067
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
SLEEVE,SPRING PROTECTOR
5431032
$31.99
12
CAM,ADJUSTING SPRING
5630334
$32.37
13
Arm, Steering
5220326-067
Unavailable
14
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
14
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
16
TUBE,TRAILING ARM
5010187
Unavailable
17
BUSHING-SWAYBAR
5410383
Unavailable
18
RIVET(50)
7621433
$1.49
19
SLIDE-SWAYBAR
5410384
Unavailable
20
WASHER(10)
7555721
$1.49
20
WASHER(10)
7555721
$1.49
21
PIVOT-TRAILING ARM
5410382
Unavailable
22
BOLT(10)
7512557
$7.60
23
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
23
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
24
BUSHING-FLANGE
3573909
$2.39
25
WASHER SPECIAL(10)
7556509
$1.59
26
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
27
SPINDLE, BLK.
6230073-067
Unavailable
28
STOP, RUBBER
5521276
Unavailable
29
BOLT(10)
7515462
$8.79
30
SKAG,PR.,CARBIDE
2870693
$69.99
31
SKI WELD, BLK
1820332-067
Unavailable
32
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
NUT-5/16-18 NYLOK-Y
7542324
$1.49
35
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
36
BUSHING,PIVOT,(10)
5010158
$19.99
37
ZERK,FITTING,THREADED(10)
7080433
$1.49
38
BOLT(10) Substituted by 7515540
7515492
$4.62
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
BOLT Substituted by 7512404
7515490
Unavailable
41
WASHER(10) Substituted by 7555832
7555851
Unavailable
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
44
ROD,RAD.LOW.(STORM)
1822102-067
Unavailable
45
ROD,RAD.UPPER(STORM)
1822099-067
$40.32
46
NUT JAM(10)
7542520
$2.39
47
ROD END, RH Substituted by 7061010
7060155
Unavailable
48
STRAP,SPACER TOP
5211344
$7.27
49
NUT, LOCK,(10)
7542503
$10.39
50
STRAP,SPACER BOTTOM
5211345
$12.99
51
NUT-JAM(10)
7542711
$2.39
52
BRACE, PAN
5223997-067
Unavailable
53
NUT FLEX,(10)
7542703
Unavailable
54
ROD END,RH Substituted by 7061011
7060156
Unavailable
