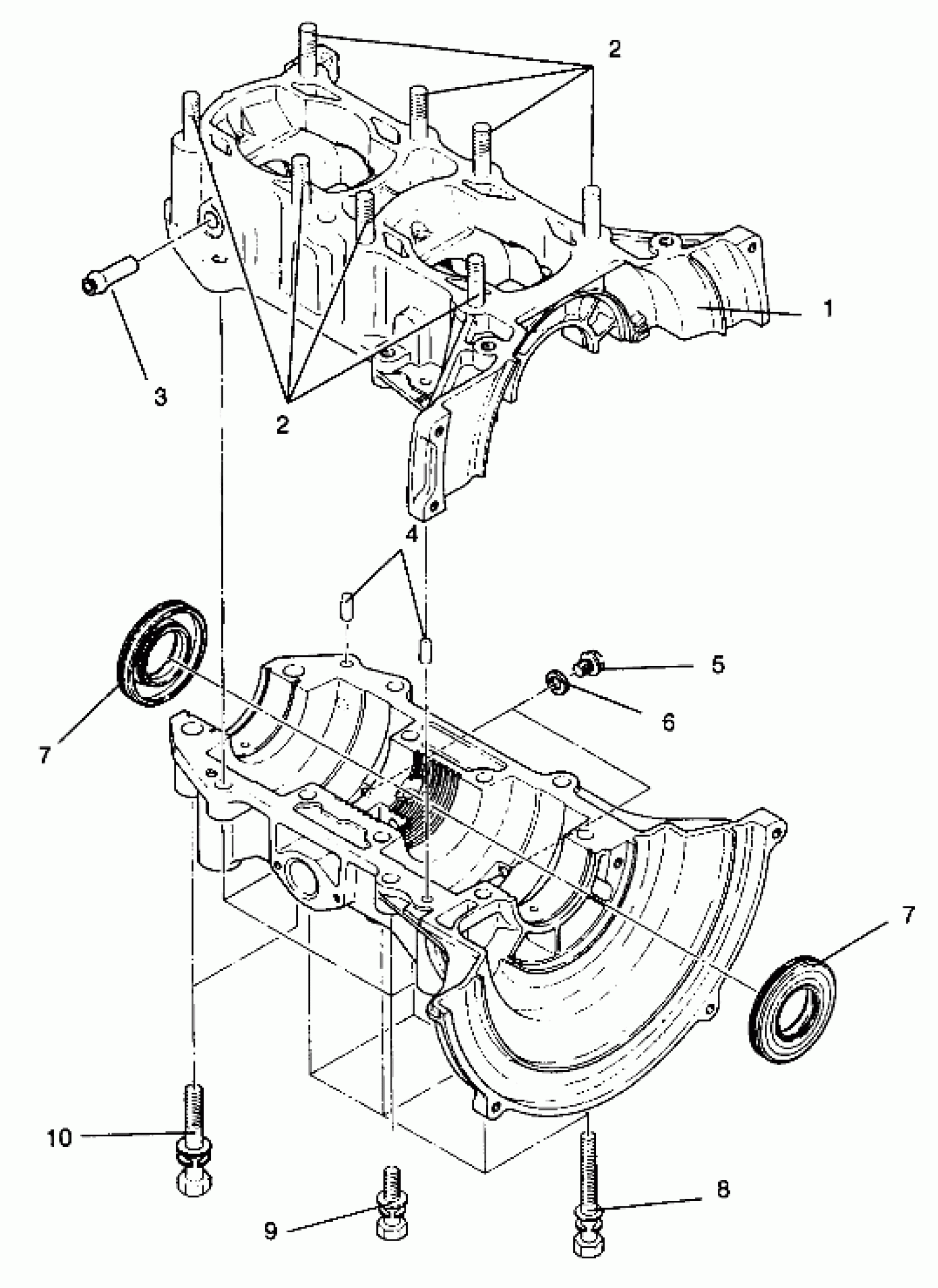

Polaris SUPER SPORT - 0940743 CRANKCASE ASSEMBLY SUPER SPORT 0940743 (4927742774027A) Diagram

CRANKCASE ASM. (Incl. 2-4,8-10)

3084584

Unavailable

STUD Substituted by 3085713

3080746

Unavailable

STUD Substituted by 3085713

3080746

Unavailable

PIPE, PULSE (Pulse)

3083798

$9.52

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

SEAL, OIL(10)

3083045

$36.41

SEAL, OIL(10)

3083045

$36.41

BOLT W/WASHER

3080739

$6.39

BOLT&WASHER

3083078

Unavailable

BOLT&WASHER ASM.

3084220

$8.79
