CARBURETOR ASSEMBLY SUPER SPORT 0940743 (4927742774030A)

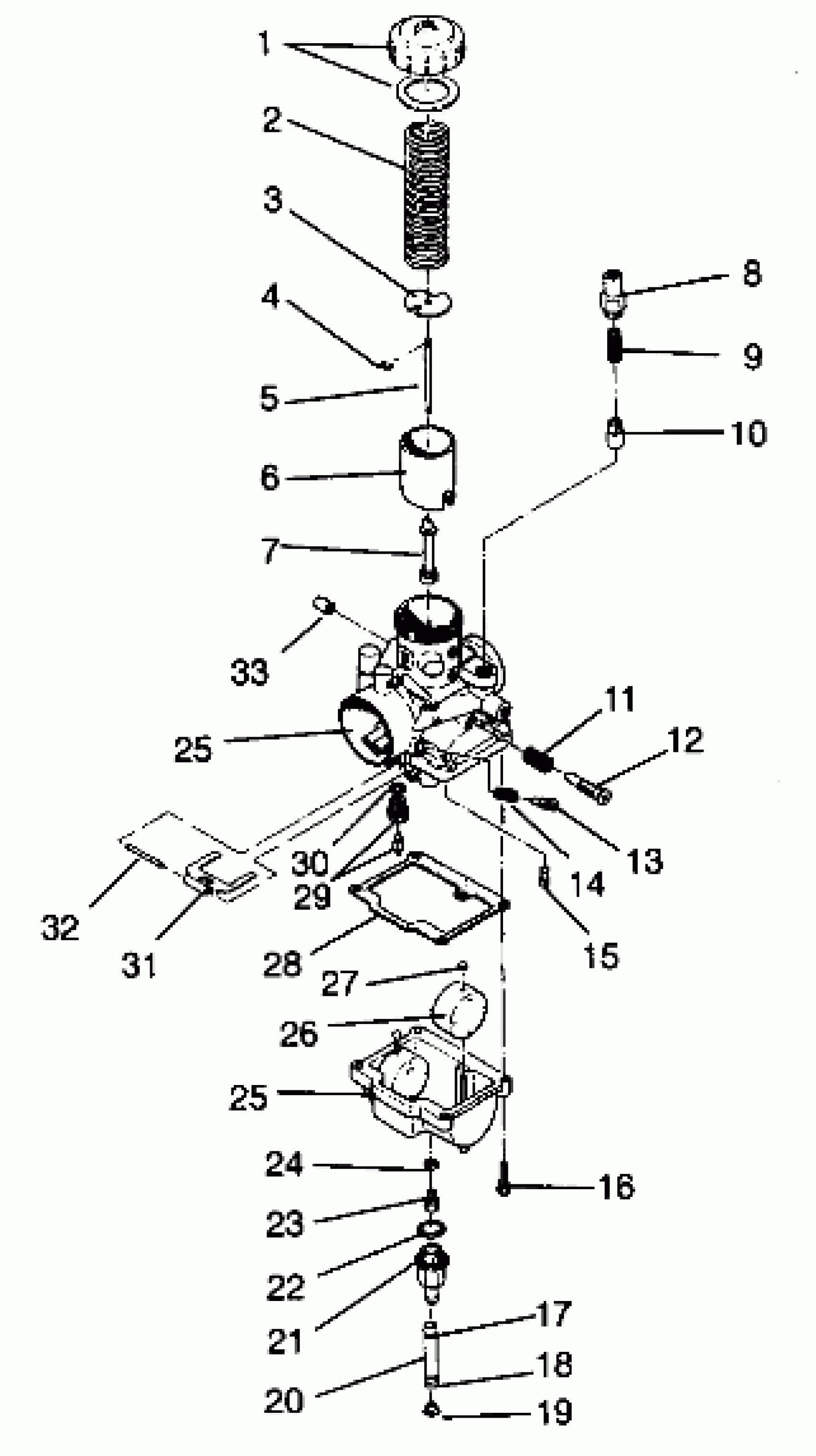

Polaris SUPER SPORT - 0940743 CARBURETOR ASSEMBLY SUPER SPORT 0940743 (4927742774030A) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (6DH7-3), EC44-3PM-01
3130329
Unavailable
5
JET NEEDLE,(6FJ6-3) (6FJ6-3), EC44-3PM-02
3130481
Unavailable
6
VALVE, THROTTLE (2.5), EC44-3PM-01
3130466
Unavailable
6
VALVE,THROTTLE,2.0 (2.0), EC44-3PM-02
3130471
Unavailable
7
NEEDLE JET,(Q-2) (166), EC44-3PM-01
3130376
Unavailable
7
NEEDLE JET (166), EC44-3PM-02
3130421
Unavailable
8
HOLDER,GUIDE
3130199
$28.32
9
SPRING,PLUNGER
3130006
$8.89
10
PLUNGER ASM, STARTER
3130328
$32.37
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST
3130012
$8.89
15
JET,PILOT,#35(10) (#35)
3130066
$8.89
16
SCREW & WASHER(10)
3130025
$3.19
17
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
18
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
19
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
20
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD#180(10) (#180)
3130119
Unavailable
24
WASHER (10)
3130014
$1.59
25
CARBURETOR ASM. (Incl. 1-16,22-33)
3130459
Unavailable
25
CARBURETOR ASM. (Incl. 1-16,22-33)
3130459
Unavailable
26
FLOAT ASM.
3130430
$43.56
27
CAP,(10)
3130237
$4.03
28
PACKING,FLOAT CHAMBER
3130020
$16.17
29
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
30
PACKING(10)
3130017
$4.03
31
ARM,FLOAT
3130018
$24.27
32
PIN, FLOAT Substituted by 3130361
3130235
$8.89
33
CAP
3130479
$14.56
