Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11061

GASKET

11061-3701

$14.16

49057

VALVE-RELIEF

49057-3707

$64.85

51004

TANK-FUEL

51004-3739

$241.09

51049

CAP-TANK,FUEL

51049-3725

Unavailable

59071

JOINT

59071-3736

$12.96

59231

FILLER,FUEL TANK

59231-3716

Unavailable

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-3009

$3.70

92037A

CLAMP

92037-3738

$6.89

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3815

$5.46

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3850

$48.63

92072B

BAND,L=99

92072-3871

$2.26

92191

TUBE,5.8X10.8X1000

92191-3736

Unavailable

92191A

TUBE,5.8X10.8X100

92191-3828

Unavailable

92191B

TUBE,FUEL TANK - FILLER

92191-3903

$38.04

92192

TUBE,CORRUGATED,L=120

92192-3749

$3.82

92192A

TUBE,CORRUGATED,L=700

92192-3750

Unavailable

92192B

TUBE,CORRUGATED,L=270

92192-3791

$3.51

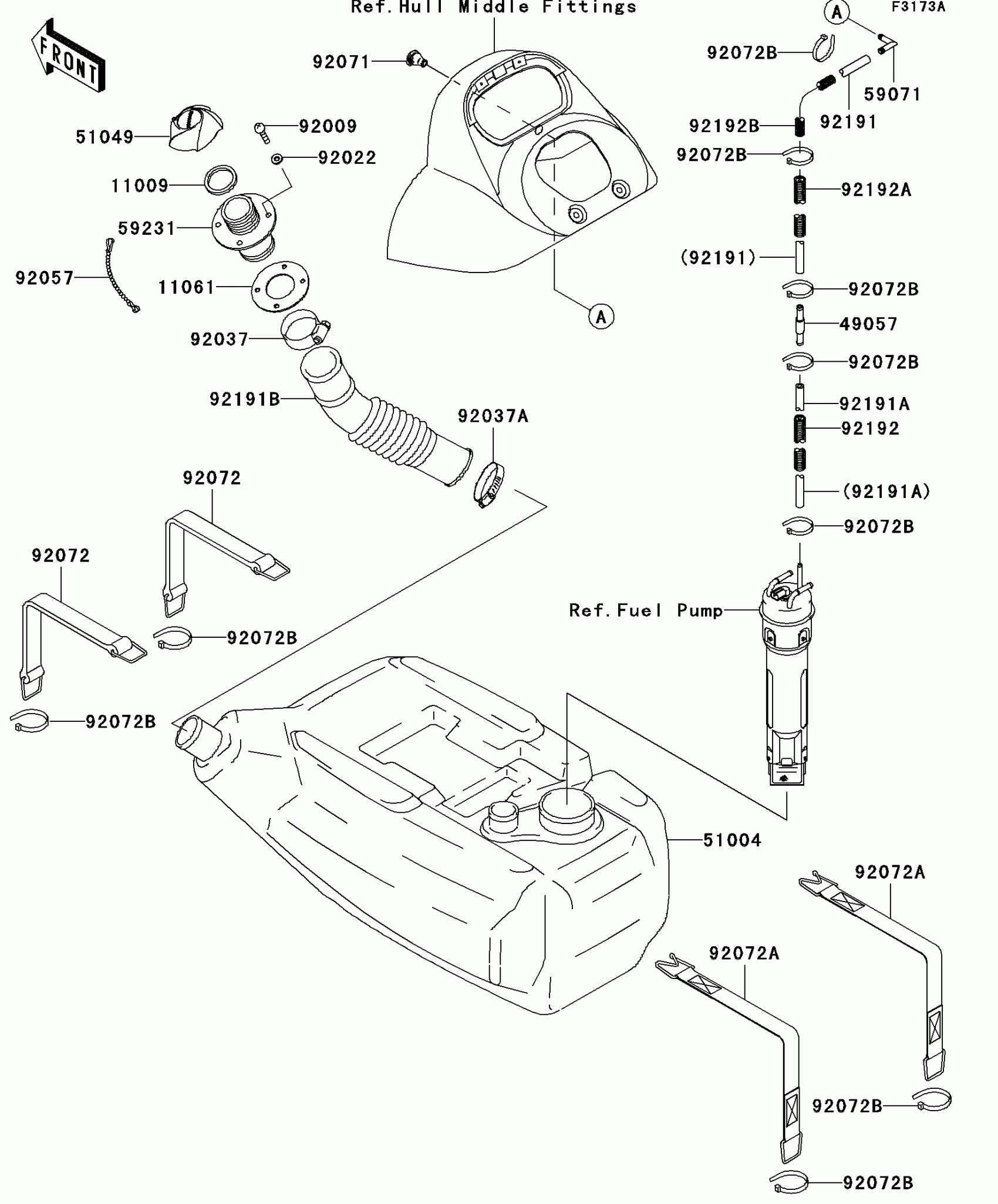

Kawasaki STX-15F Fuel Tank(A7F) Diagram

GASKET,TANK CAP

GASKET

VALVE-RELIEF

TANK-FUEL

CAP-TANK,FUEL

JOINT

FILLER,FUEL TANK

SCREW,TAPPING,4X16

WASHER

CLAMP

CLAMP

CHAIN,COVER,L=100

GROMMET

BAND

BAND

BAND,L=99

TUBE,5.8X10.8X1000

TUBE,5.8X10.8X100

TUBE,FUEL TANK - FILLER

TUBE,CORRUGATED,L=120

TUBE,CORRUGATED,L=700

TUBE,CORRUGATED,L=270
