Description

Price

11061

GASKET,BREATHER CASE

11061-3715

$16.31

14001

SET-CRANKCASE

14001-3743

$1,715.89

14091

COVER,BREATHER

14091-3761

$102.42

32099

CASE,BREATHER

32099-3848

$131.53

32153

PIPE,BREATHER

32153-3732

$22.46

92002

BOLT,6X16

92002-3728

$4.69

92005

FITTING

92005-3741

$18.20

92028

BUSHING

92028-3718

$9.43

92043

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,12X3

92055-3768

$3.18

92066

PLUG

92066-3778

$11.06

92066A

PLUG

92066-3782

$11.06

92071

GROMMET

92071-1261

Unavailable

92153

BOLT,6X30

92153-3707

$3.26

92153A

BOLT,10X85

92153-3711

$14.71

92171

CLAMP,TUBE

92171-3710

Unavailable

92191

TUBE,HEAD COVER-BREATHER

92191-3964

$24.61

92192

TUBE,14X20X140

92192-3723

$13.83

130

BOLT-FLANGED

130Z0845

$3.71

130A

BOLT-FLANGED

130Z0855

$5.75

130B

BOLT-FLANGED,8X85

130Z0885

$3.34

132

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

132A

BOLT-FLANGED-SMALL

132Y0645

$4.37

132B

BOLT-FLANGED-SMALL,6X55

132Y0655

$4.71

551

PIN-DOWEL

551R1012

$6.57

670

O RING,14MM

670D2014

$5.52

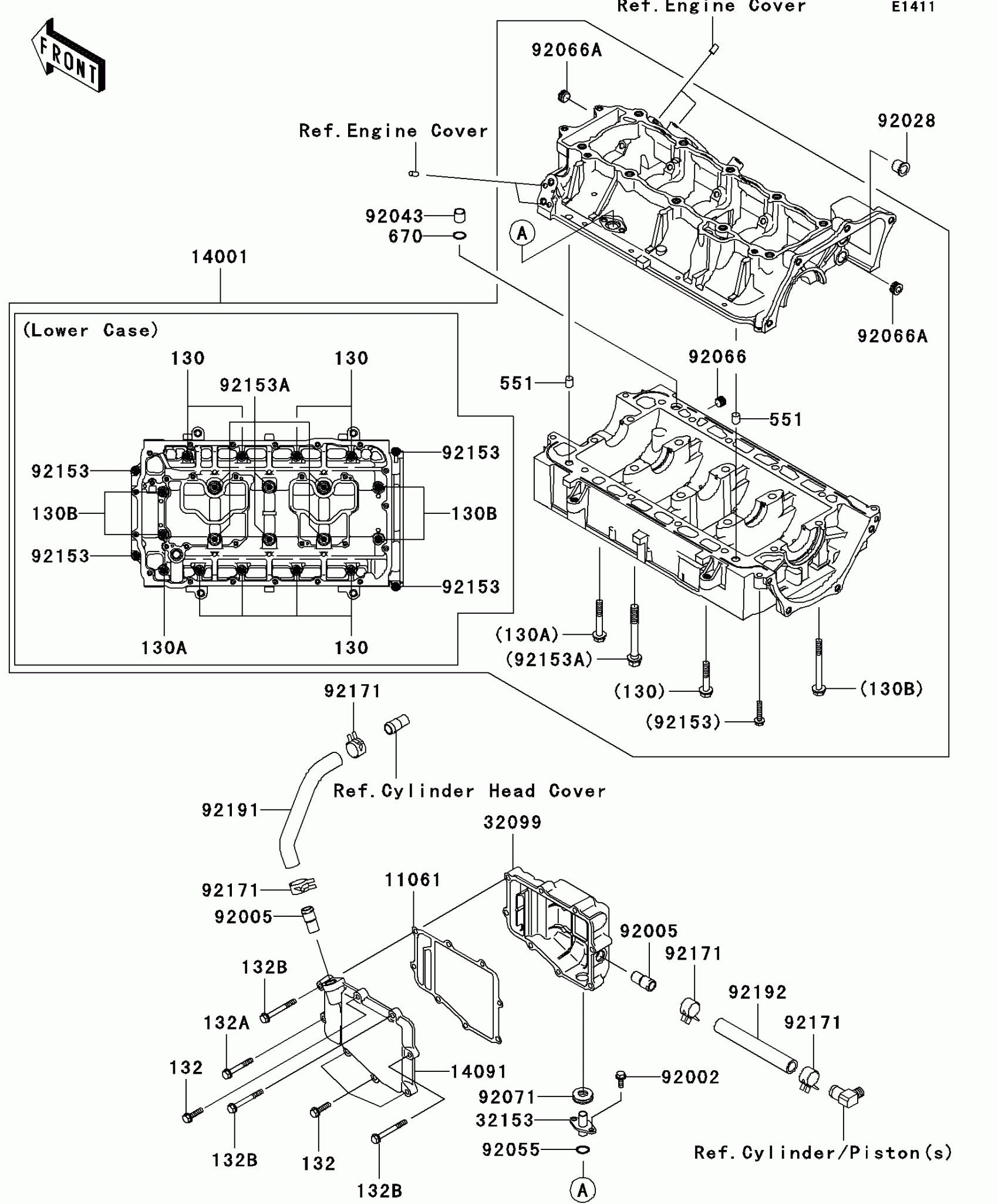

Kawasaki STX-15F Crankcase Diagram

GASKET,BREATHER CASE

SET-CRANKCASE

COVER,BREATHER

CASE,BREATHER

PIPE,BREATHER

BOLT,6X16

FITTING

BUSHING

PIN,11.5X14X14

RING-O,12X3

PLUG

PLUG

GROMMET

BOLT,6X30

BOLT,10X85

CLAMP,TUBE

TUBE,HEAD COVER-BREATHER

TUBE,14X20X140

BOLT-FLANGED

BOLT-FLANGED

BOLT-FLANGED,8X85

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL,6X55

PIN-DOWEL

O RING,14MM
