Description

Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.76

11052

BRACKET,RR DUCT

11052-3712

$9.05

11053

BRACKET

11053-3746

$20.09

11060

GASKET,U HOOK,RR

11060-3800

$6.20

11060A

GASKET,DRAIN PLUG

11060-3801

$6.61

11061

GASKET,CARGO HOOK

11061-3730

$12.37

11061A

GASKET

11061-3731

$4.28

12022

VALVE-REED

12022-3712

$33.35

13091

HOLDER

13091-3780

$8.76

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$7.98

13270

PLATE

13270-3860

$8.38

13271

PLATE

13271-3724

$4.31

13271A

PLATE,CARGO NET HOOK

13271-3755

$9.21

13271B

PLATE,REAR TOWING HOOK

13271-3859

Unavailable

13271C

PLATE

13271-3889

$11.99

13280

HOLDER,EXHAUST VALVE

13280-3718

$27.61

14073

DUCT

14073-3801

$52.51

27012

HOOK

27012-3797

$32.29

27012A

HOOK

27012-3816

$9.19

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$36.98

27012C

HOOK,CARGO NET,G.SILVER

27012-3828-F2

$14.32

27012D

HOOK,REAR TOWING,F.BLACK

27012-3836-6Z

$124.86

27012E

HOOK,WATER MUFFLER,RH

27012-3849

$10.53

39031

CAP-END

39031-3708

$46.94

39145

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.22

39145A

TRIM-SEAL,L=1412

39145-3787

$109.09

59426

HULL-COMP,J.WHITE

59426-3946-8C

$4,239.11

59437

STABILIZER,LH,F.BLACK

59437-3733-6Z

$243.81

59437A

STABILIZER,RH,F.BLACK

59437-3734-6Z

$243.81

59446

COVER-JET PUMP

59446-3758

Unavailable

92002

BOLT,6X20

92002-3755

$4.69

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92039

RIVET

92039-3741

$1.63

92039A

RIVET

92039-3755

$6.57

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$17.50

92071

GROMMET

92071-3812

$18.18

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,314X18

92072-3814

$17.91

92093

SEAL

92093-3720

$3.62

92093A

SEAL

92093-3765

$17.94

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,SOCKET,6X30

92150-3822

$4.31

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.05

92152

COLLAR

92152-3715

$8.38

92200

WASHER

92200-3779

$5.30

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

411

WASHER-PLAIN,5MM

411S0500

$0.94

411A

WASHER-PLAIN,8MM

411S0800

$3.09

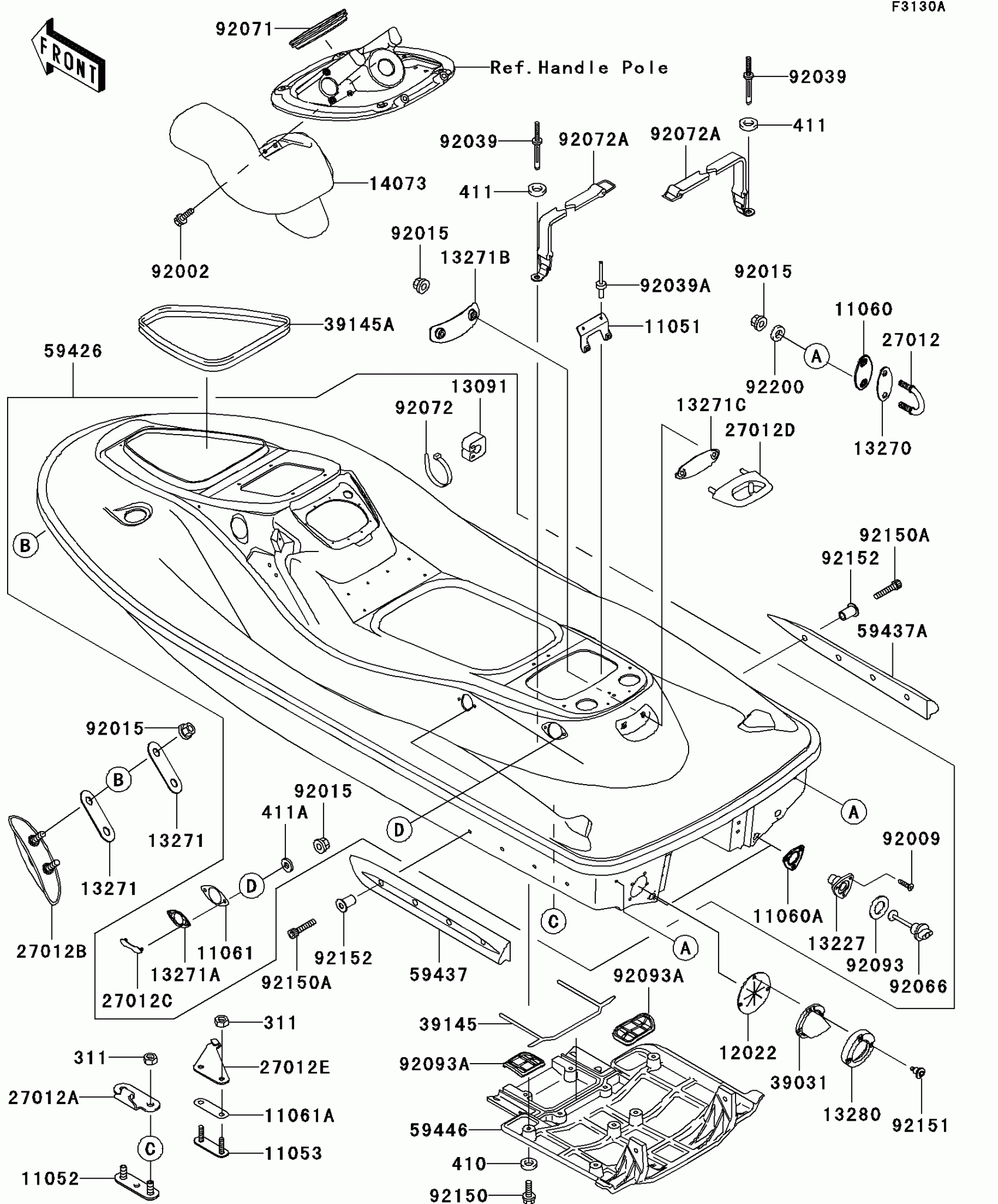

Kawasaki STX-12F Hull(JT1200-B2) Diagram

BRACKET,BREATHER-BILGE

BRACKET,RR DUCT

BRACKET

GASKET,U HOOK,RR

GASKET,DRAIN PLUG

GASKET,CARGO HOOK

GASKET

VALVE-REED

HOLDER

HOUSING,DRAIN PLUG,F.BLACK

PLATE

PLATE

PLATE,CARGO NET HOOK

PLATE,REAR TOWING HOOK

PLATE

HOLDER,EXHAUST VALVE

DUCT

HOOK

HOOK

HOOK,BOW,F.BLACK

HOOK,CARGO NET,G.SILVER

HOOK,REAR TOWING,F.BLACK

HOOK,WATER MUFFLER,RH

CAP-END

TRIM-SEAL,JET PUMP COVER

TRIM-SEAL,L=1412

HULL-COMP,J.WHITE

STABILIZER,LH,F.BLACK

STABILIZER,RH,F.BLACK

COVER-JET PUMP

BOLT,6X20

SCREW,TAPPING,4X16

NUT,FLANGED,8MM

RIVET

RIVET

PLUG,RR,DRAIN,F.BLACK

GROMMET

BAND,L=188

BAND,314X18

SEAL

SEAL

BOLT,SOCKET,6X18

BOLT,SOCKET,6X30

BOLT,SOCKET,M6,SHOULDER

COLLAR

WASHER

NUT-HEX,6MM

WASHER-PLAIN-SMALL,6MM

WASHER-PLAIN,5MM

WASHER-PLAIN,8MM
