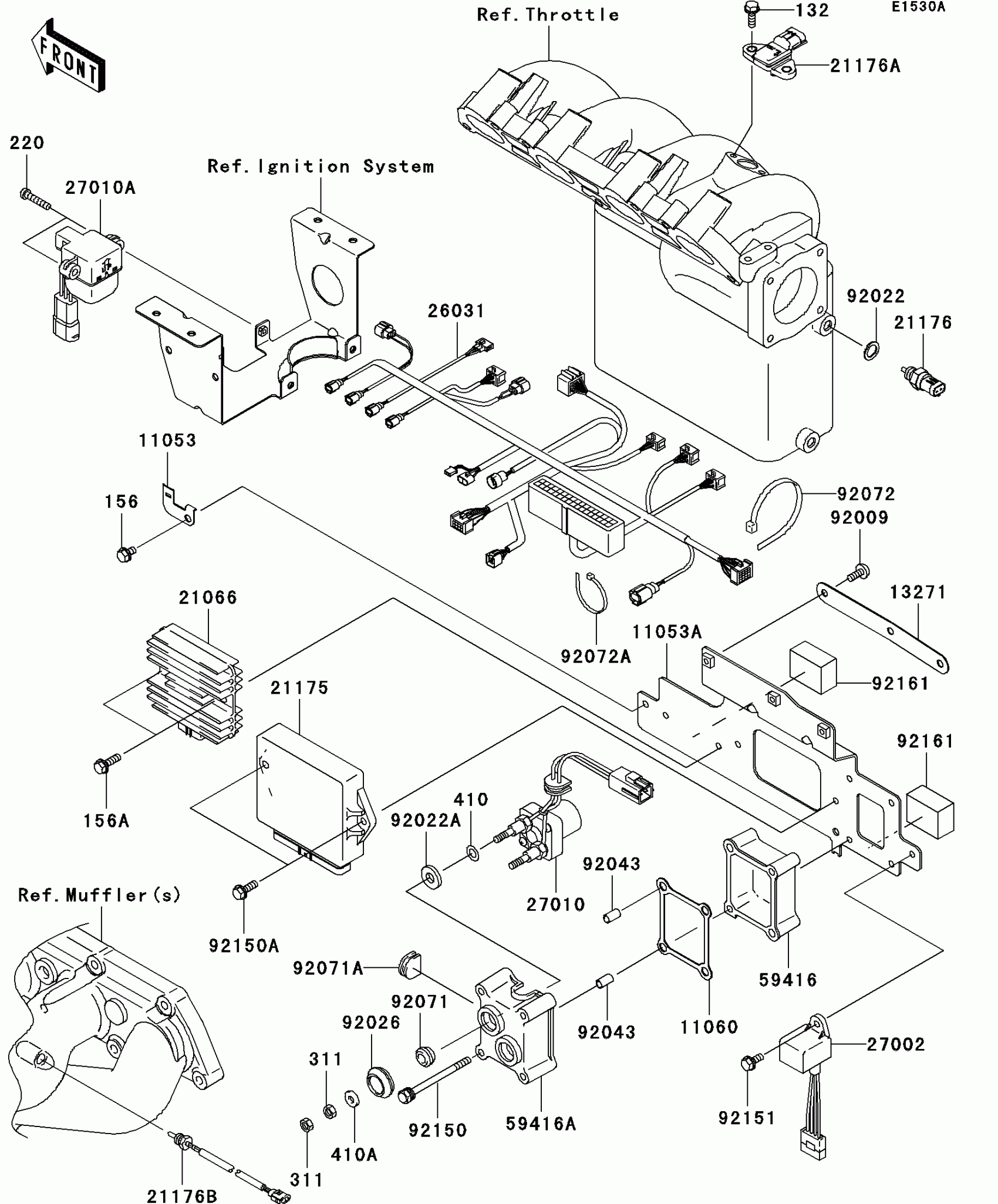

Kawasaki STX-12F Fuel Injection(JT1200-B2) Diagram
#
Description
Price
11053
BRACKET,FUSE
11053-3724
$7.90
11053A
BRACKET,SWITCH
11053-3774
$112.86
11060
GASKET
11060-3709
$13.41
13271
PLATE
13271-3842
$6.82
21066
REGULATOR-VOLTAGE
21066-3718
Unavailable
21175
CONTROL UNIT-ELECTRONIC
21175-3725
$581.80
21176
SENSOR,AIR TEMPERATURE
21176-1086
$68.42
21176A
SENSOR,PRESSURE
21176-3755
$245.34
21176B
SENSOR,TEMP
21176-3758
$133.71
26031
HARNESS
26031-3703
$690.05
27002
RELAY-ASSY
27002-3703
$51.63
27010
SWITCH
27010-3777
$164.03
27010A
SWITCH,VDS
27010-3785
$259.40
59416
CASE-ELECTRIC
59416-3710
$57.71
59416A
CASE-ELECTRIC
59416-3711
$64.25
92009
SCREW,6X15
92009-3830
$3.32
92022
WASHER,12X18X1.0
92022-1211
$3.92
92022A
WASHER
92022-3035
$3.52
92026
SPACER
92026-3703
$4.69
92043
PIN
92043-3715
$7.34
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-3837
$3.23
92072
BAND,L=365
92072-1197
$7.84
92072A
BAND,L=157
92072-3873
$1.73
92150
BOLT,6X80
92150-3711
$13.04
92150A
BOLT,6X18
92150-3729
$4.69
92151
BOLT,6X14
92151-3788
$2.34
92161
DAMPER
92161-3752
$5.64
132
BOLT-FLANGED-SMALL,6X18
132Y0618
$3.63
156
BOLT-WP,6X10
156R0610
$2.80
156A
BOLT-WP,6X20
156R0620
$3.65
220
SCREW-PAN-CROS,4X20
220R0420
$2.41
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
