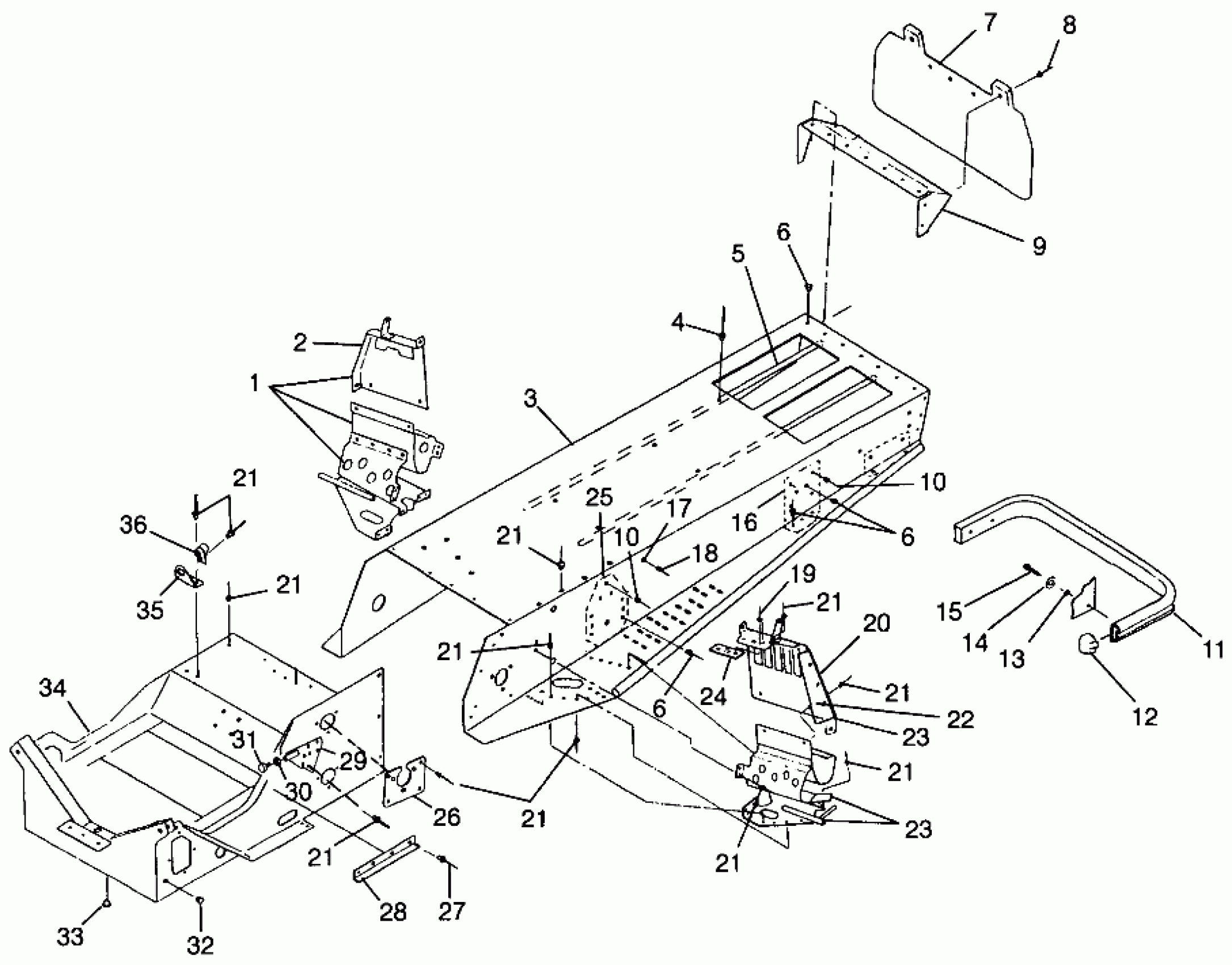

Polaris STORM - 0985782 TUNNEL STORM 0985782 (4943674367A005) Diagram
#
1
FOOTREST, RH
1012281
Unavailable
2
MT,RH,CONSOLE,BLK.
5242493-067
$5.75
3
TUNNEL ASM,X10 BLK (Incl. 9, 14, 16, 25)
1012554-067
Unavailable
4
RIVET,3/16X.402(50)
7621432
$1.49
5
STRIP-WEAR
5510130
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
8
POP RIVET(50)
7621418
$1.49
9
PANEL,TUNNELBACK
5241053-067
$308.99
10
RIVET,SEMI-TUBE,(50)
7661841
$1.49
10
RIVET,SEMI-TUBE,(50)
7661841
$1.49
11
BUMPER,REAR,BLACK Substituted by 2670168
2670169
Unavailable
12
CAP,BUMPER
5431995-070
Unavailable
13
WASHER(10)
7558301
$1.49
14
LOCK WASHER(10)
7552801
$1.59
15
SCREW(10)
7515159
$4.79
16
PAD,LH,R.SUSP.
5241268-067
Unavailable
16
PAD,RH,R.SUSP.
5241269-067
Unavailable
17
SNAP-MALE(10)
7080227
Unavailable
18
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
19
RIVET(50)
7661850
$1.49
20
MT,LH,CONSOLE,BLK.
5242492-067
Unavailable
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
BRKT,LH,CORNERBRACE
5241320-067
Unavailable
22
BRKT,RH,CORNERBRACE
5241321-067
$8.29
23
FOOTREST, LH
1012280
Unavailable
23
FOOTREST, LH
1012280
Unavailable
24
PLATE,CLUTCH GUARD MT.
1012441
Unavailable
25
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
25
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
26
PLATE,BRG.SUPPORT,B'HD.
5211806-067
$10.71
27
RIVET [No Longer Available]
7661452
Unavailable
28
GUARD,ADAPTER GUIDE
5222857
$12.94
29
STOP, TORQUE
1012524
Unavailable
30
NUT,HEX(10)
7542414
$4.79
31
STOP,TORQUE,COARSE
3110058
Unavailable
32
PLUG, HOLE(10)
7080416
$5.65
33
PLUG-HOLE
7080398
$4.84
34
BULKHEAD,BLK
1012663-067
$551.24
35
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
36
GUIDE, RECOIL
5431385
$10.51
