SEAT and GAS TANK STORM 0985782 (4943674367A006)

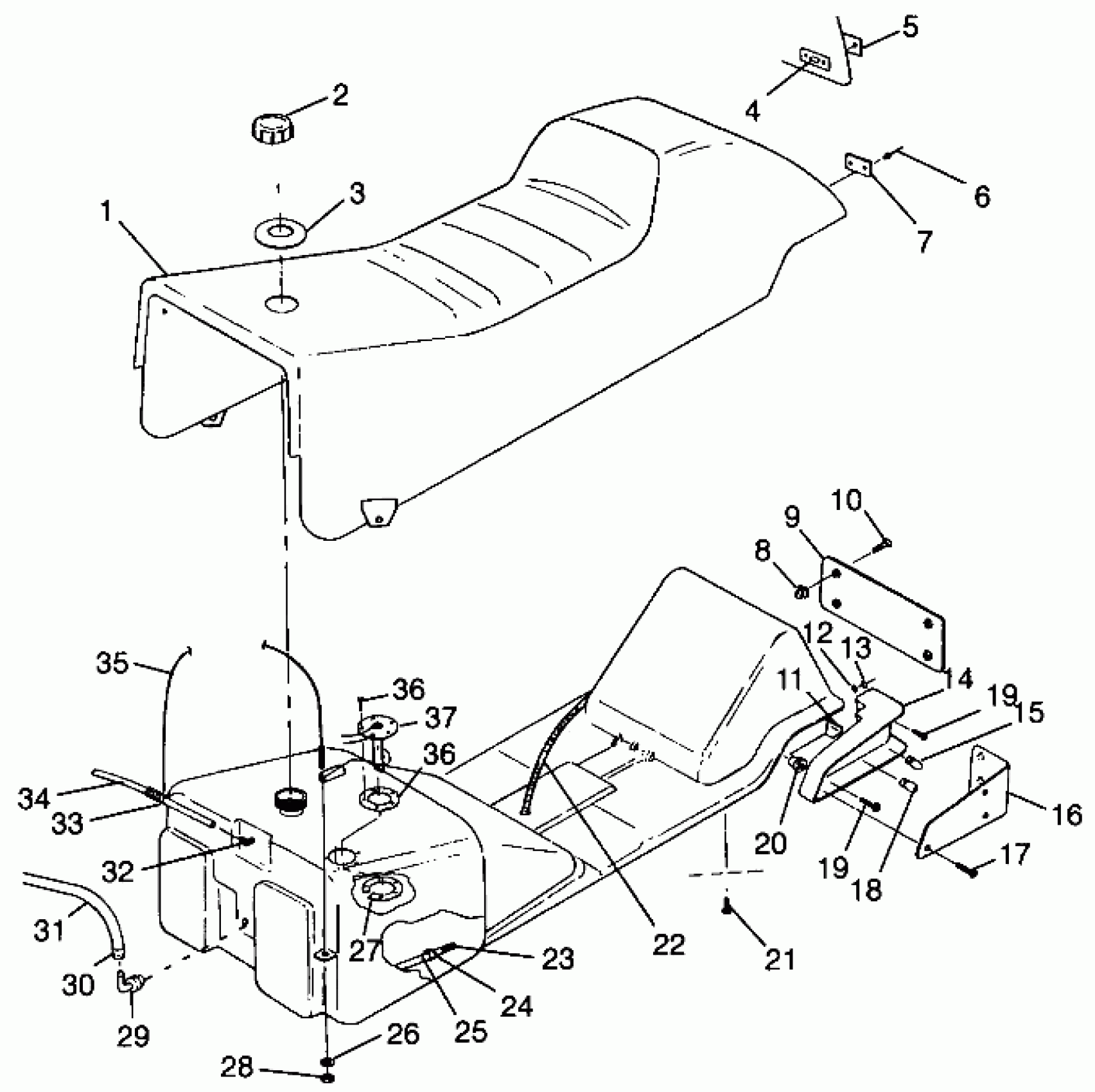

Polaris STORM - 0985782 SEAT and GAS TANK STORM 0985782 (4943674367A006) Diagram
#
1
COVER ASM, SEAT
2682219
Unavailable
1
SEAT ASM. (Incl. 4-20, 22-29, 32, 35)
2682305
$440.99
2
GASKET, GAS CAP
5810513
$8.89
2
CAP,FUELTANK,W/GASKET
2511226
Unavailable
3
GROMMET,FUELTANK
5410815
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
RIVET(50)
7621337
$1.49
7
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
8
NUT(10)
7546908
$2.63
9
REFLECTOR,CTR,SEAT
5432008
Unavailable
10
SCREW,SELF-TAP(10)
7522004
Unavailable
11
BRKT,SEAT MT,BLK
1012643-067
Unavailable
12
BURR,RIVET(50)
7555904
$1.49
13
RIVET(50)
7621433
$1.49
14
HOUSING,LH,LENS
5432002
Unavailable
14
HOUSING,RH,LENS
5432003
Unavailable
15
Bulb, Brakelight
4030045
Unavailable
16
LENS,RH
5432032
$44.51
16
LENS,LH
5432031
Unavailable
17
SCREW(10)
7512054
$2.39
18
BULB, T/L.
4032084
Unavailable
19
SCREW(10)
7511954
$1.19
19
SCREW(10)
7511954
$1.19
20
NUT, WELL(10)
7541901
$6.39
21
BOLT(10)
7512232
$1.49
22
HARNESS,T/L,121,(SCULPT)
2460541
Unavailable
23
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
24
RING, COMPRESSION(10)
7080402
$1.60
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
NUT(10)
7541925
$1.49
27
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
28
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
29
FITTING,OUT,90 DEG,,DOUBLE
7052143
Unavailable
30
HOSE CLAMP, RED
7080003
$1.49
31
FUEL LINE, 5 FT.
8450045-153
Unavailable
32
FITTING,90 DEG,1/8,(10)
7052095
$4.79
33
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
35
CABLE,TANK,RETENTION
7080559
Unavailable
36
HDWE.PKG,SEND.UNIT
2410012
Unavailable
36
HDWE.PKG,SEND.UNIT
2410012
Unavailable
37
SENDER,FUEL-LEVEL,W/GASKET
3280227
Unavailable
