OIL TANK / AIR BOX - 0985782 (4943674367c004)

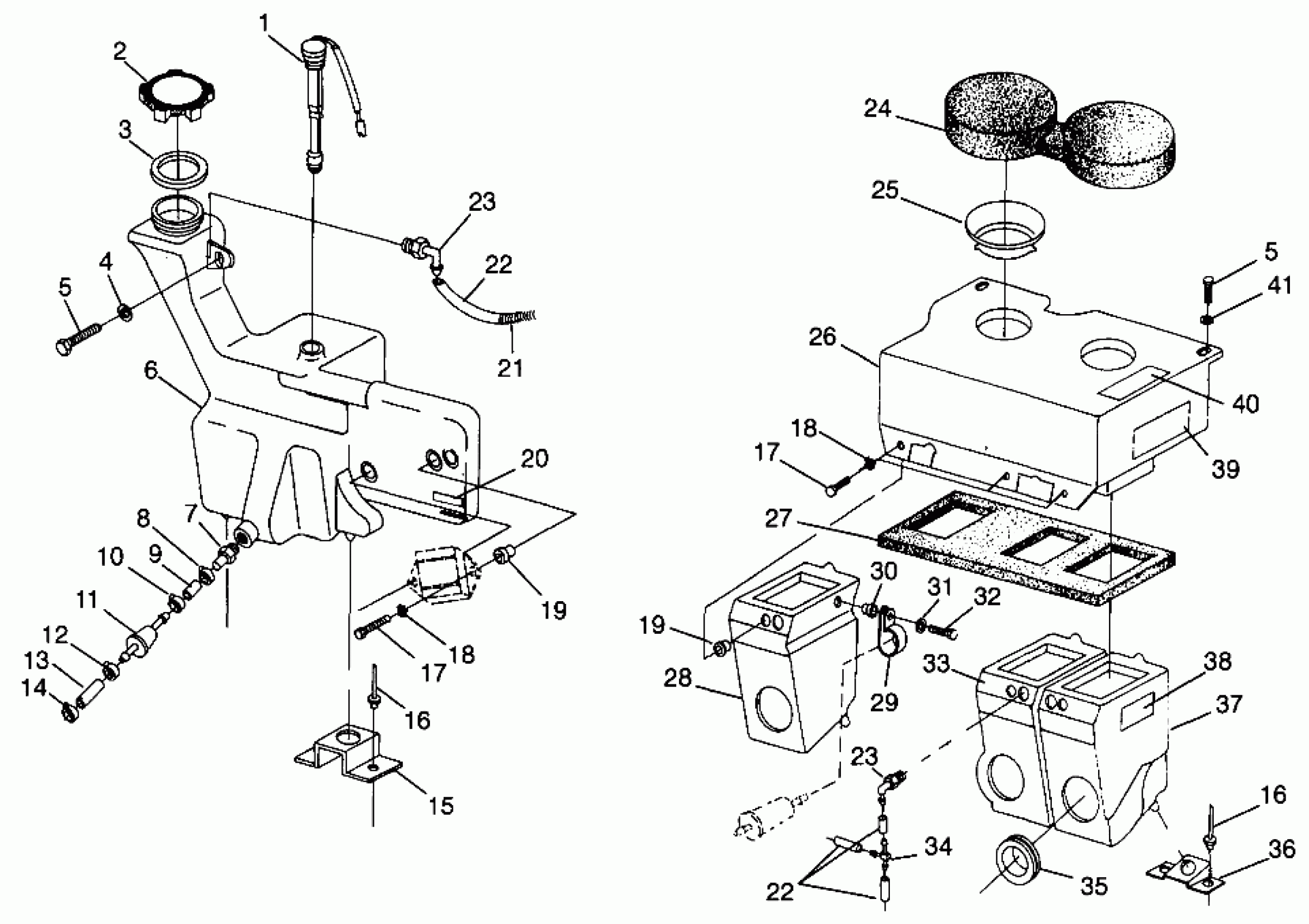

Polaris STORM - 0985782 OIL TANK / AIR BOX - 0985782 (4943674367c004) Diagram
#
1
SENSOR,OIL LEVEL
4110134
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER(10)
7558301
$1.49
5
BOLT(10)
7512276
$4.79
5
BOLT(10)
7512276
$4.79
6
TANK,OIL,W/SEND.UNIT HOLE
5432825
Unavailable
7
FITTING,3/8 OUTLET
7052110
Unavailable
8
CLAMP,HOSE(10)
7080544
Unavailable
9
LINE,OIL(3/8"-1/4")
5411131
Unavailable
10
HOSE CLAMP, RED
7080003
$1.49
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
13
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
14
CLAMP-HOSE,(10)
7080236
$1.59
15
BRKT,OILTANK,COINED
5241330
$2.15
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
DECAL,LOW OIL LEVEL
7074664
Unavailable
21
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
22
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
22
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
23
FITTING,90 DEG,1/8,(10)
7052095
$4.79
23
FITTING,90 DEG,1/8,(10)
7052095
$4.79
24
FOAM ASM,INTAKE,AGR
1253176
Unavailable
25
INLET,PLENUM
5410834
Unavailable
26
PLENUM,AIRBOX
5431944
Unavailable
27
SEAL,PLENUM
5810946
Unavailable
28
AIRBOX,MAG.
5431969
Unavailable
29
CLAMP,CABLE,(10)
7080535
$1.59
30
NUT-WELL(10)
7541918
Unavailable
31
WASHER, LOCK(10)
7571603
Unavailable
32
SCREW(10)
7511954
$1.19
33
AIRBOX,CTR.
5431970
Unavailable
34
FITTING, TEE,(10)
7052048
$3.99
35
Boot
5410271
Unavailable
36
BRKT.OIL TANK,
5241322
Unavailable
37
AIRBOX,PTO.
5431971
Unavailable
38
DECAL, GREASING [No Longer Available]
7073426
$7.27
39
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
40
DECAL,CAUTION,AIRBOX
7075351
Unavailable
41
WASHER(10)
7555960
$3.99
