FRONT SUSPENSION - 0985782 (4943674367b001)

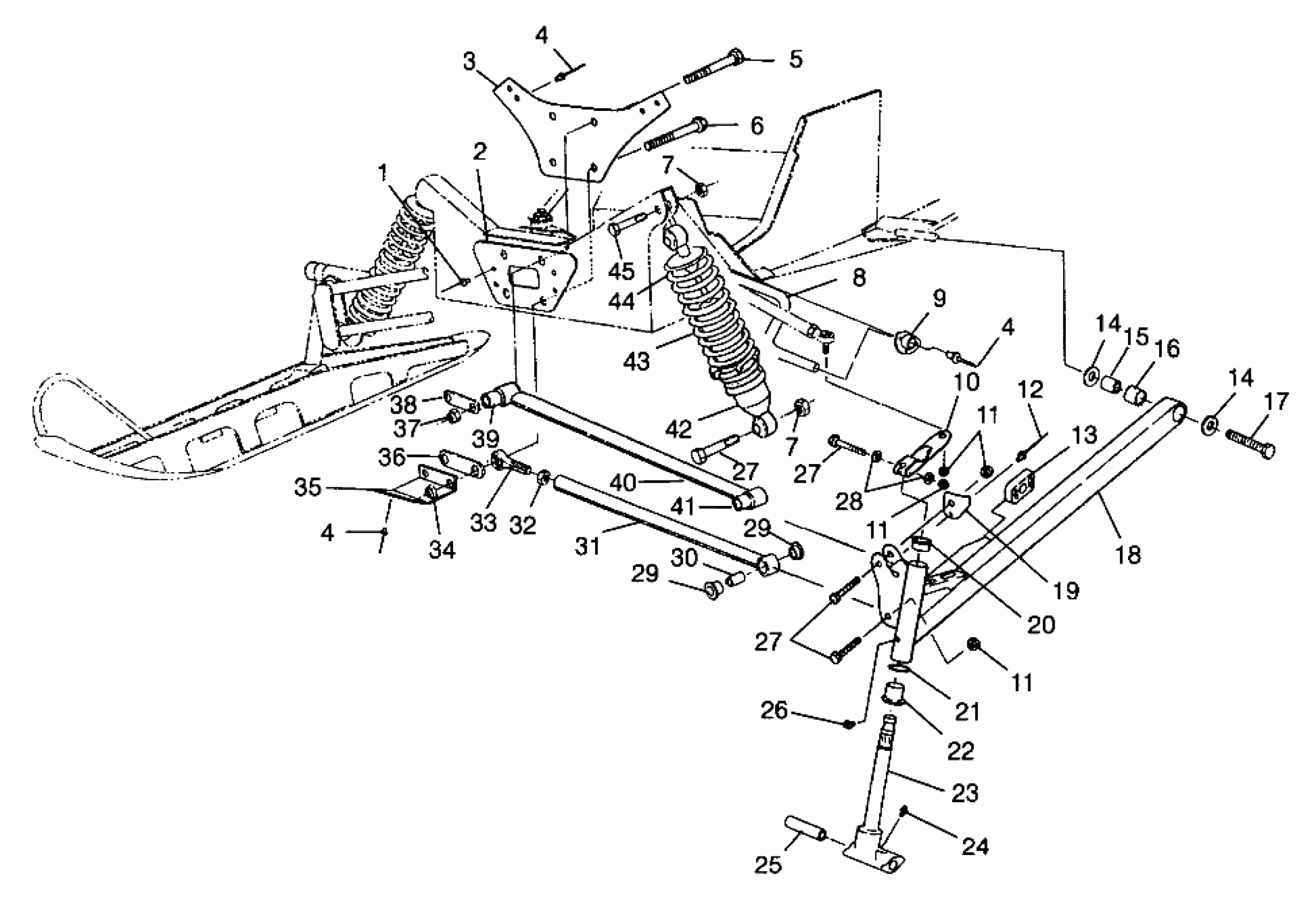

Polaris STORM - 0985782 FRONT SUSPENSION - 0985782 (4943674367b001) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
4
RIVET,(50)
7621477
$1.19
4
RIVET,(50)
7621477
$1.19
4
RIVET,(50)
7621477
$1.19
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT-LOCK(10)
7542439
$1.49
7
NUT-LOCK(10)
7542439
$1.49
8
BAR,SWAY,BLK,
5224742-067
Unavailable
9
BUSHING,SWAY BAR
5432038
$19.99
10
ARM,STRG,BLK
5241560-067
Unavailable
11
NUT LOCK(10)
7542403
$3.99
11
NUT LOCK(10)
7542403
$3.99
11
NUT LOCK(10)
7542403
$3.99
12
RIVET(50) Substituted by 7661130
7661643
Unavailable
13
SLIDE,SWAYBAR,5/8
5432331
$28.32
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH Substituted by 2201319 (Incl.15,16)
1822366
$344.99
18
ARM,TRLG,RH Substituted by 2201320 (Incl.15,16)
1822367
Unavailable
19
STOP,LH,STRG,BLK.
5241569-067
$7.27
19
STOP,RH,STRG,BLK.
5241570-067
$7.27
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
24
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
25
BUSHING,PIVOT,(10)
5010158
$19.99
26
ZERK,FITTING,THREADED(10)
7080433
$1.49
27
BOLT(10) Substituted by 7517583
7515491
Unavailable
27
BOLT(10) Substituted by 7517583
7515491
Unavailable
27
BOLT(10) Substituted by 7517583
7515491
Unavailable
28
WSHR-.813X.406X.105-Y
7555832
$2.39
29
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
29
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
30
BUSHING-RADIUS ROD,(10)
5010127
$7.99
31
ROD,RAD,LOWER,BLK
1822410-067
Unavailable
32
NUT-JAM(10)
7542711
$2.39
33
ROD END,1/2 LINED Substituted by 7061071
7061011
$48.56
34
NUT FLEX,(10)
7542703
Unavailable
35
BRACE, PAN
5223997-067
Unavailable
36
STRAP,SPACER BOTTOM
5211345
$12.99
37
NUT, LOCK,(10)
7542503
$10.39
38
STRAP,SPACER TOP
5211344
$7.27
39
BUSHING,PIVOT,7/16
5411095
$15.99
40
ROD,RAD.UPPER,FIXED (Incl. 39,41)
1822435
$49.21
41
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
42
SHOCK,GAS,IFP,IFS
7041540
Unavailable
43
SPRING,COMPRESSION
7041575-067
$52.60
44
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
45
BOLT(10)
7515415
$1.49
