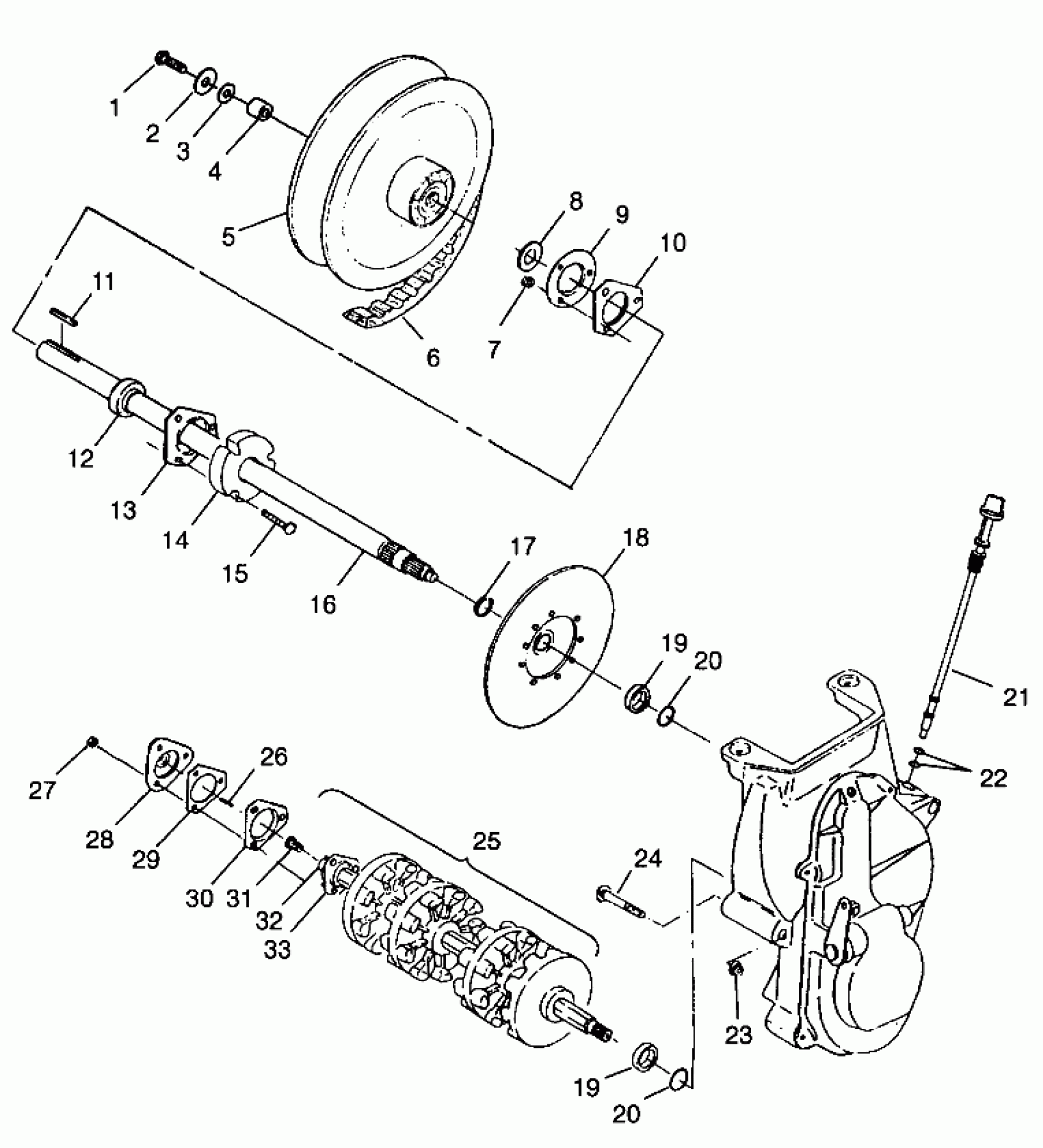

Polaris STORM - 0985782 DRIVE TRAIN - 0985782 (4943674367b009) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Driven Clutch, Adjustable (See Footnote) (See Driven Clutch Pg. C2, Ref. 16)
-------
Unavailable
6
BELT, DRIVE(5)
3211065
$114.99
7
NUT,NYLOC,(10)
7542344
$3.99
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
10
GASKET,JACKSHAFT,BLK.
5811095
$2.41
11
KEY(10)
7721116
$12.94
12
BEARING
3514525
$31.99
13
FLANGETTE
5222751
$16.44
14
SPACER,BRG,JACKSHAFT
5131443
$40.79
15
BOLT,CARRIAGE(10)
7515383
Unavailable
16
JACKSHAFT ASM,LONG,15T Substituted by 1332228 (Incl. 12,17)
1332208
$164.75
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVESHAFT ASM,W/M15 BRG,4 DR (Incl. 31,32,33)
1590266
Unavailable
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
NUT-5/16-18 NYLOK-Y
7542324
$1.49
28
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
29
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
30
FLANGETTE Substituted by 5243529
5241178
$13.75
31
BUSHING METAL SPEEDO
3280019
$11.99
32
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
33
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
