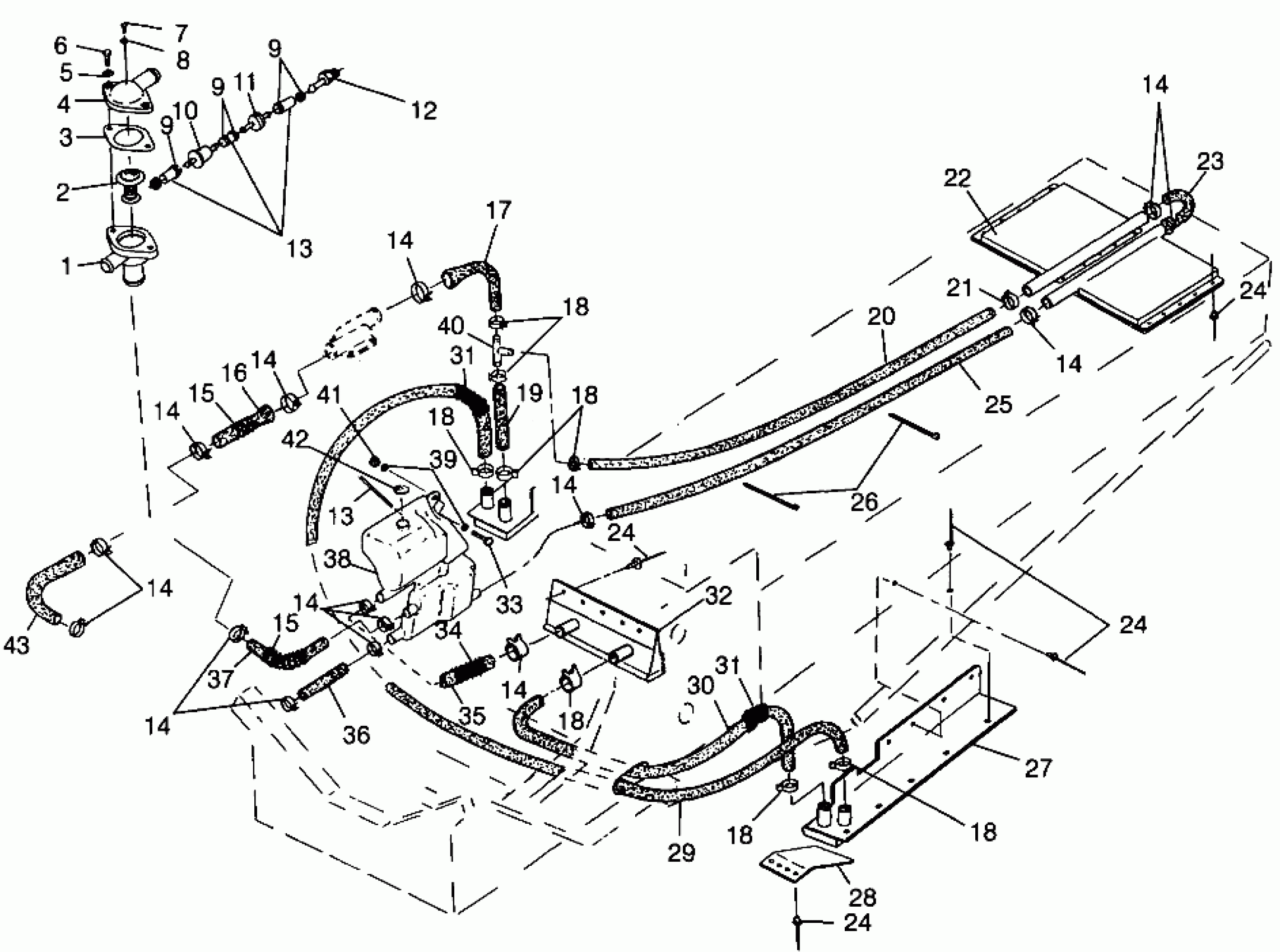

Polaris STORM - 0985782 COOLING SYSTEM - 0985782 (4943674367b010) Diagram
#
1
HOUSING, THERMOSTAT
5130943
Unavailable
2
AUTOSTAT,120DEG.
7051017
Unavailable
3
Gasket, Thermostat
5830020
Unavailable
4
CAP,THERMOSTAT HSG,MACH.
5130942
$40.79
5
LOCK WASHER(10)
7552901
$1.49
6
BOLT(10)
7512383
$1.99
7
SCREW,(10) Substituted by 7517565
7517266
$15.99
8
WASHER,FLAT,(10)
7555998
$1.49
9
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
10
FILTER,COOLANT,LGE.
2530024
Unavailable
11
VALVE, CHECK
7052038
$10.51
12
FITTING,SURGE TANK,(10)
7052099
$4.79
13
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
13
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
14
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
15
SPRING,HOSE RET,4.75 IN.
7041541
$3.51
15
SPRING,HOSE RET,4.75 IN.
7041541
$3.51
16
HOSE,AUTOSTAT/BRK.COOLER
5411067
Unavailable
17
HOSE,R.COOLER,3-WAY
5410845
$13.19
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
18
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
19
HOSE,WATER,305 CM.
8450050-305
Unavailable
20
HOSE,3-WAY,R.COOLER
5410962
Unavailable
21
CLAMP,HOSE,(10) Substituted by 7080843
7080652
Unavailable
22
EXCHANGER,R.COOLING
2511301
$226.99
23
HOSE,COOLING
5410758
Unavailable
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
HOSE,(1" X 10 FT.)
8450048-305
Unavailable
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
27
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
28
GUARD, COOL.EXT.
5222863
$32.99
29
HOSE-CROSSOVER
5410324
Unavailable
30
HOSE-CROSSOVER
5410350
Unavailable
31
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
31
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
32
EXCHANGER,COOL.CTR.
2511239
Unavailable
33
BOLT(10)
7512240
$3.99
34
TUBING,CONVOL,8"X1"
5411396
$9.70
35
HOSE,CTR.COOLER/TOP SURGE
5411070
Unavailable
36
HOSE,SURGETANK/WATERPUMP
5411069
Unavailable
37
HOSE,AUTOSTAT/CTR.SURGE
5411066
Unavailable
38
TANK,COOLANT
5432541
Unavailable
39
WASHER,WROUGHT(10)
7558302
$1.59
40
CONNECTOR,TEE,3/4"
7052093
$8.79
41
NUT-LOCK(10)
7542122
$1.49
42
CAP, PRESSURE,(13 LB) (13 lb.)
2511270
$24.27
43
HOSE,AUTOSTAT/ENGINE
5411068
Unavailable
