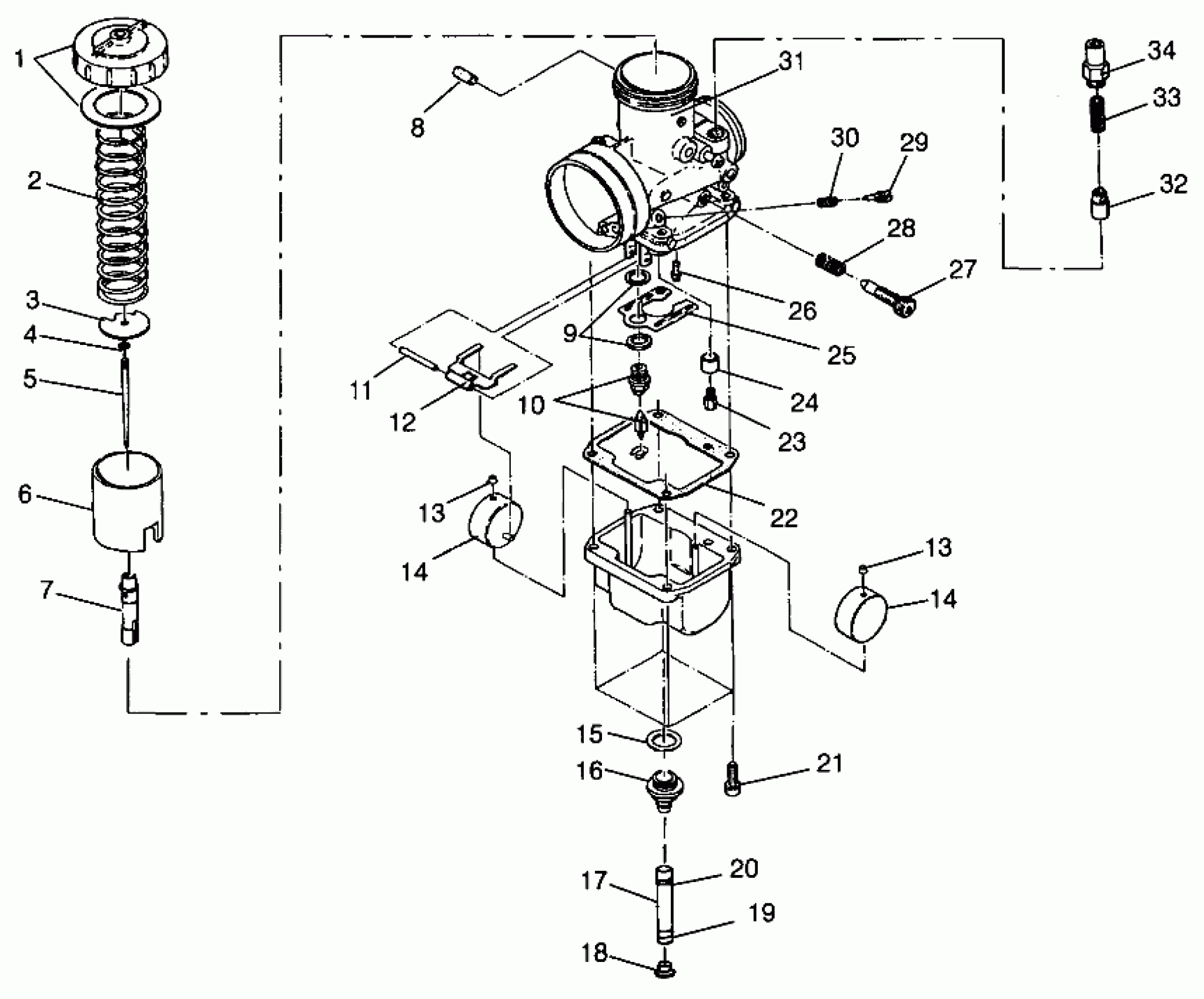

Polaris STORM - 0985782 CARBURETOR STORM 0985782 (4943674367D002) Diagram
#
Description
Price
1
TOP (Incl. Gasket)
3130061
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
PLATE, THROTTLE
3130054
$6.46
4
E-RING,(10)
3130508
$6.46
5
JET NEEDLE,(6CGY6-3) (6CGY6-3)
3130652
Unavailable
6
VALVE,THROTTLE,(3.0) (3.0)
3130352
Unavailable
7
JET,NEEDLE,(Q-0) (Q-0) 247
3130414
Unavailable
8
CAP
3130479
$14.56
9
WASHER(10)
3130047
$4.84
10
NEEDLE VALVE ASM. (1.5)
3130598
Unavailable
11
PIN, FLOAT
3130361
$8.89
12
ARM,FLOAT
3130048
Unavailable
13
CAP,(10)
3130237
$4.03
13
CAP,(10)
3130237
$4.03
14
FLOAT ASM
3130021
$40.46
14
FLOAT ASM
3130021
$40.46
15
O RING
3130239
Unavailable
16
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
17
FUEL LINE, 5 FT.
8450045-153
Unavailable
18
PLUG,TRAP
5431893
$12.94
19
CLAMP,HOSE(10)
7080544
Unavailable
20
CLAMP,SPRING,(10)
7080534
$1.59
21
SCREW
3130056
$3.19
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
JET,MAIN,HX.HD#420(10) (#420) (MAG Side)
3130142
$7.27
23
JET,MAIN,#410(10) (#410) (PTO Side)
3130599
$7.27
23
JET,MAIN,HX.HD#400(10) (#400) (Center)
3130141
$7.27
24
RING,CARB
3130232
Unavailable
25
PLATE
3130243
Unavailable
26
JET,PILOT,#50(10) (#50)
3130629
$7.27
27
SCREW,THROTTLE STOP
3130009
$19.99
28
SPRING,THROTTLE ADJ.
3130010
$8.89
29
SCREW,AIR
3130011
$19.99
30
SPRING,AIR ADJUST
3130012
$8.89
31
CARBURETOR #3 (PTO Side) (Incl. 1-16, 21-34)
3130714
Unavailable
31
CARBURETOR #1 (MAG Side) (Incl. 1-16, 21-34)
3130712
Unavailable
31
CARBURETOR #2 (Center Side)(Incl. 1-16, 21-34)
3130713
Unavailable
32
PLUNGER ASM, STARTER
3130328
$32.37
33
SPRING,PLUNGER
3130006
$8.89
34
HOLDER,GUIDE
3130199
$28.32
