STEERING Storm 0975782, Storm S.E. H975782, European Storm S.E. E975782, a (4937823782B008)

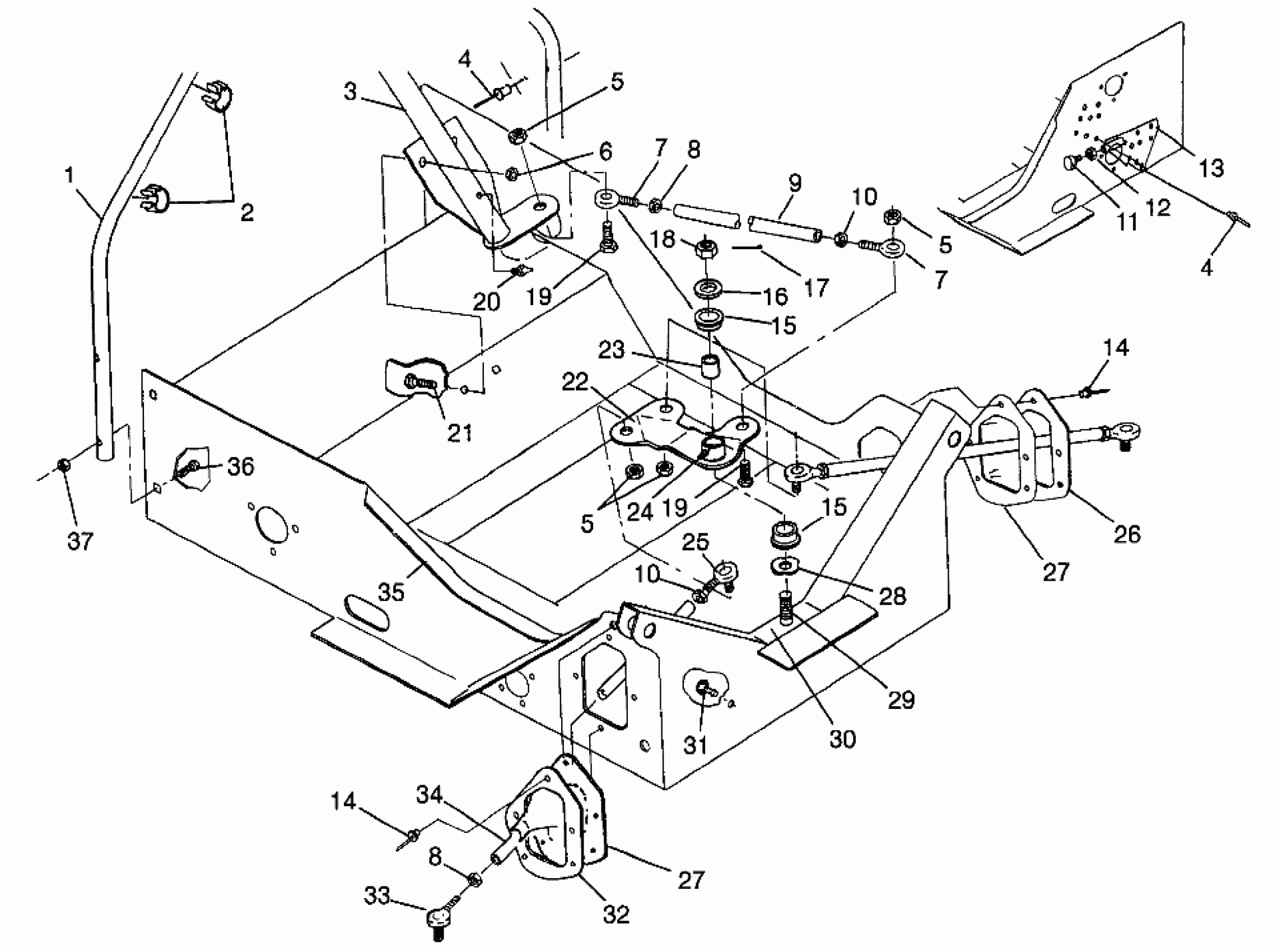

Polaris STORM - 0975782 STEERING Storm 0975782, Storm S.E. H975782, European Storm S.E. E975782, a (4937823782B008) Diagram
#
1
HOOP,STEERING Substituted by 1012856-067
1012282-067
Unavailable
2
CLIP(10)
7080278
$2.63
3
POST,STRG.(AGR.),BLK.
1823172-067
Unavailable
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
6
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
ROD END, RH.
7060165
$48.56
7
ROD END, LH.
7060164
$48.56
7
ROD END, RH.
7060165
$48.56
7
ROD END, LH.
7060164
$48.56
8
NUT
7542424
$1.49
8
NUT
7542424
$1.49
9
ROD-DRAG LINK
5332712
Unavailable
10
NUT HEX(10)
7542401
$2.39
10
NUT HEX(10)
7542401
$2.39
11
STOP,TORQUE,COARSE
3110056
Unavailable
12
NUT,HEX(10)
7542414
$4.79
13
STOP, TORQUE
1012524
Unavailable
14
RIVET(50)
7621340
$0.56
14
RIVET(50)
7621340
$0.56
15
BUSHING
3563907
$3.99
15
BUSHING
3563907
$3.99
16
WASHER(10)
7555721
$1.49
17
PIN COTTER(10)
7661203
$1.49
18
NUT FLEX,(10)
7542703
Unavailable
19
BOLT(10)
7512404
$3.99
19
BOLT(10)
7512404
$3.99
20
FITTING-LUBRICATION 1/4-28
7080424
$4.79
21
BOLT(10) Substituted by 7512377
7512394
Unavailable
22
STRG.ASM,CTR. (Incl. 15, 24)
1822286
$29.60
23
BUSHING
5010340
Unavailable
24
ZERK,FITTING,THREADED(10)
7080433
$1.49
25
ROD END, LH. (RMK)
7060164
$48.56
25
ROD END,LH,3/8 HI-ANGLE PRO (Storm/SE)
7061005
Unavailable
26
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
27
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
27
BOOT,TIEROD,RH,XTRA
5411123
$20.22
27
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
27
BOOT,TIEROD,RH,XTRA
5411123
$20.22
28
WASHER,WAVE(10)
7555735
$3.99
29
BOLT(10)
7512682
Unavailable
30
BLOCK,STRG,(CAST)
5630563
$32.37
31
CLIP, PLASTIC(10)
4020139
$4.79
32
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
33
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
34
ROD,TIE,BLK (RMK)
5020878-067
Unavailable
34
TIEROD,BLK (Storm/SE)
5020856-067
Unavailable
35
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
36
BOLT-CARRIAGE(10)
7512275
$3.99
37
NUT-LOCK(10)
7542122
$1.49
