SEAT and GAS TANK Storm 0975782, Storm S.E. H975782, European Storm S.E. E9 (4937823782A007)

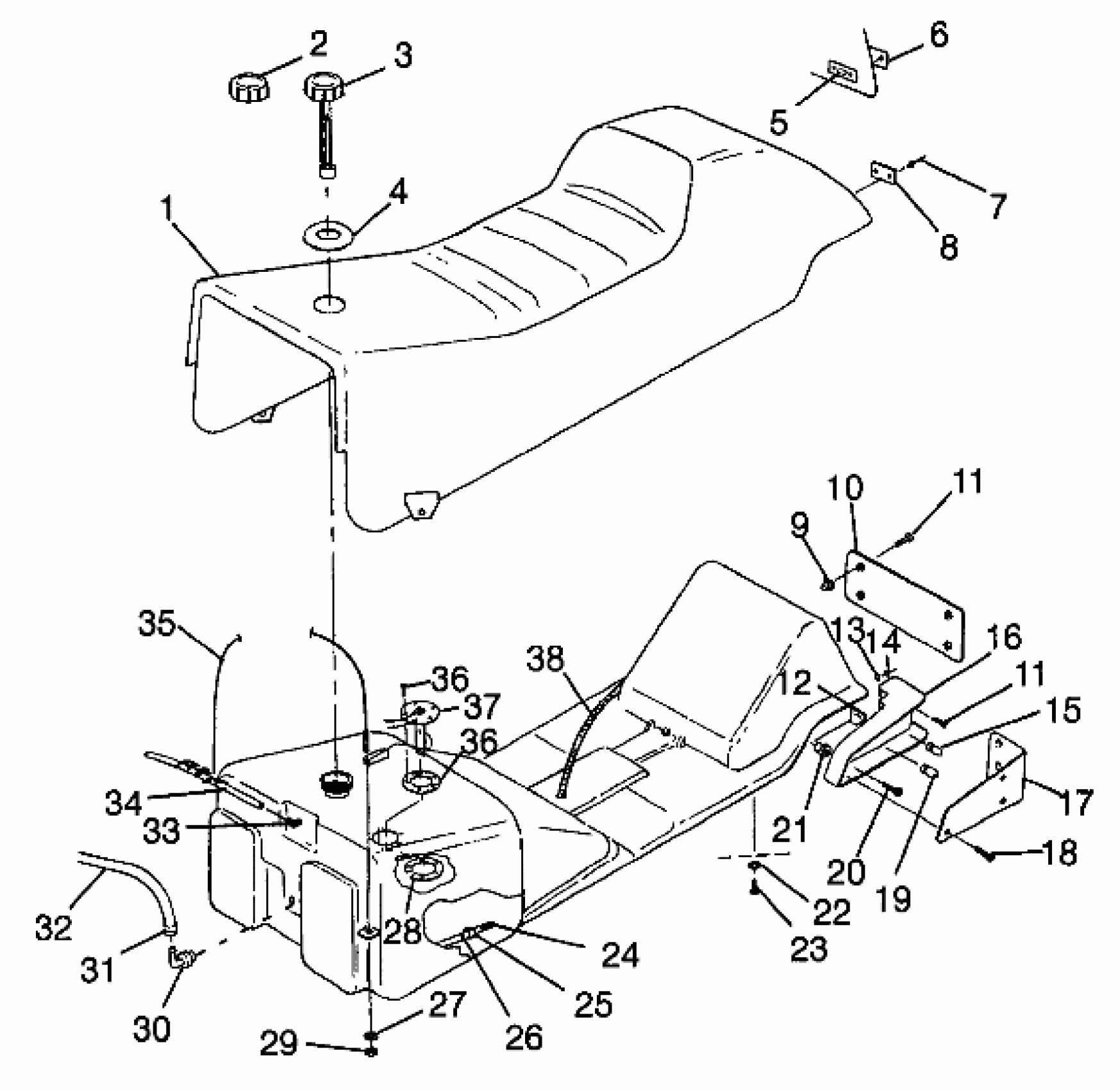

Polaris STORM - 0975782 SEAT and GAS TANK Storm 0975782, Storm S.E. H975782, European Storm S.E. E9 (4937823782A007) Diagram
#
-
SEAT ASM,STD. (RMK) (Incl. 5-21, 30-38, 33, 35, 37)
2681997
Unavailable
-
COVER,SEAT,SCULPT 121 (Storm/SE)
2682122
Unavailable
-
COVER,SEAT (RMK)
2682123
Unavailable
1
SEAT ASM. (Storm) (Incl. 5-21, 30-38, 33, 35)
2681996
$440.99
1
SEAT ASM,121,W/SENDER (SE) (Incl. 5-21, 30-38, 33, 35, 37)
2682174
$419.99
2
GASKET, GAS CAP
5810513
$8.89
2
CAP,FUELTANK,W/GASKET (SE)
2511226
Unavailable
3
CAP,GAS,W/GAUGE
2511248
$44.51
4
GROMMET,FUELTANK
5410815
Unavailable
5
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
6
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
7
RIVET(50)
7621337
$1.49
8
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
9
NUT(10)
7546908
$2.63
10
REFLECTOR,CTR,SEAT
5432008
Unavailable
11
SCREW,SELF-TAP(10)
7522004
Unavailable
11
SCREW,SELF-TAP(10)
7522004
Unavailable
12
BRKT,SEAT MT,BLK. Substituted by 1012643-067
1012391-067
Unavailable
13
BURR,RIVET(50)
7555904
$1.49
14
RIVET(50)
7621433
$1.49
14
RIVET(50)
7621433
$1.49
15
Bulb, Brakelight
4030045
Unavailable
16
HOUSING,LH,LENS
5432002
Unavailable
16
HOUSING,RH,LENS
5432003
Unavailable
17
LENS,RH
5432032
$44.51
17
LENS,LH
5432031
Unavailable
18
SCREW(10)
7512054
$2.39
19
BULB, T/L.
4032084
Unavailable
20
SCREW(10)
7511954
$1.19
21
NUT, WELL(10)
7541901
$6.39
22
WASHER(10)
7558301
$1.49
23
SCREW(10)
7512242
$2.39
24
FUELPICKUP,W/STRAINER
7052037
$12.94
25
RING, COMPRESSION(10)
7080402
$1.60
26
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
27
NUT(10)
7541925
$1.49
28
MTG.FLANGE,FUELTANK Substituted by 5244067 (SE)
5211308
Unavailable
29
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
30
FITTING,OUT,90 DEG,,DOUBLE
7052143
Unavailable
31
HOSE CLAMP, RED
7080003
$1.49
32
FUEL LINE, 5 FT.
8450045-153
Unavailable
33
FITTING,90 DEG,1/8,(10)
7052095
$4.79
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
$40.46
34
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
34
TUBING,CONVOLUTED
8360052-305
$28.32
35
CABLE,TANK,RETENTION
7080559
Unavailable
36
HDWE.PKG,SEND.UNIT (SE)
2410012
Unavailable
36
HDWE.PKG,SEND.UNIT (SE)
2410012
Unavailable
37
SENDER,FUEL-LEVEL,W/GASKET (SE)
3280227
Unavailable
38
HARNESS,T/L,121,(SCULPT)
2460541
Unavailable
