RAIL MOUNTING (SUSPENSION) Storm 0975782, Storm S.E. H975782, European Stor (4937823782C001)

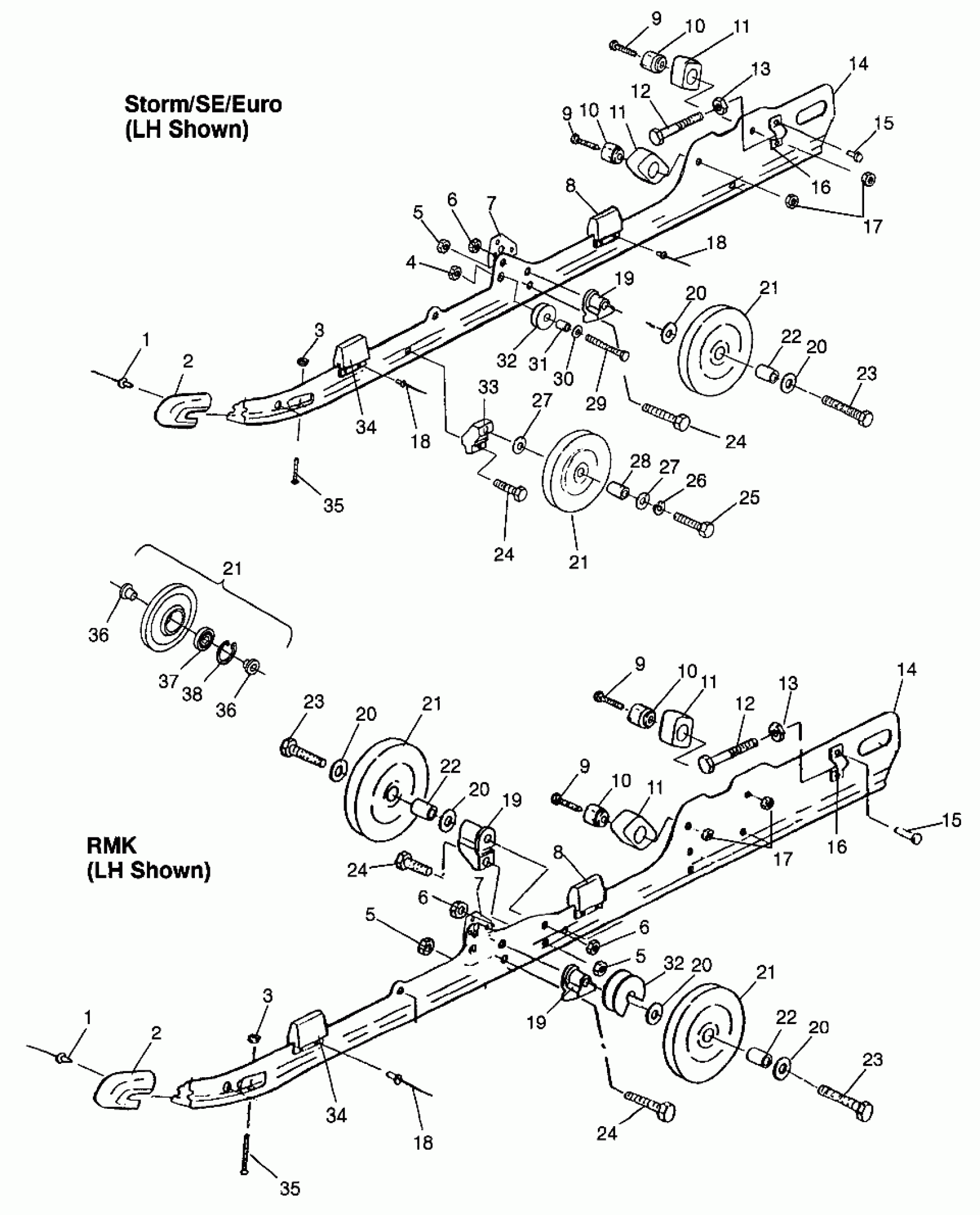

Polaris STORM - 0975782 RAIL MOUNTING (SUSPENSION) Storm 0975782, Storm S.E. H975782, European Stor (4937823782C001) Diagram
#
1
RIVET(50)
7621435
$1.49
1
RIVET(50)
7621435
$1.49
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
3
NUT-LOCK(10)
7542122
$1.49
4
NUT LOCK(10) (Storm/SE)
7542411
$3.19
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
6
NUT, NYLOCK(10) (RMK)
7542525
$4.79
6
NUT, NYLOCK(10) (Storm/SE)
7542525
$4.79
6
NUT, NYLOCK(10) (RMK)
7542525
$4.79
6
NUT, NYLOCK(10) (Storm/SE)
7542525
$4.79
6
NUT, NYLOCK(10) (RMK)
7542525
$4.79
6
NUT, NYLOCK(10) (Storm/SE)
7542525
$4.79
7
BRKT,RAIL,REINF (Storm/SE)
5211790
Unavailable
7
PLATE,RAIL SUPPORT (RMK)
5211798
$8.23
7
BRKT,RAIL,REINF (Storm/SE)
5211790
Unavailable
7
PLATE,RAIL SUPPORT (RMK)
5211798
$8.23
8
REINF., BUMPER
5222629
$13.75
8
BUMPER, RAIL
5810554
$7.27
8
REINF., BUMPER
5222629
$13.75
8
BUMPER, RAIL
5810554
$7.27
9
BOLT(10)
7515537
$10.99
9
BOLT(10)
7515537
$10.99
9
BOLT(10)
7515537
$10.99
9
BOLT(10)
7515537
$10.99
10
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
10
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
10
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
10
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
11
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BUMPER,F.PIVOT ARM
5410925
$12.94
12
BOLT, ADJUSTER(10)
7515455
$29.99
12
BOLT, ADJUSTER(10)
7515455
$29.99
13
NUT(10)
7542440
Unavailable
13
NUT(10)
7542440
Unavailable
14
RAIL ASM,RH,133" (RMK) (Incl. 1, 2, 8, 15, 16, 18, 34)
1540947
$339.99
14
RAIL ASM,LH,133" (RMK) (Incl. 1, 2, 8, 15, 16, 18, 34)
1540946
$269.55
14
RAIL,LH,121,XTRA 10 (Storm/SE) (Incl. 1, 2, 8, 15, 16, 18, 34)
1541146
$288.99
14
RAIL,RH,121,XTRA 10 (Storm/SE) (Incl. 1, 2, 8, 15, 16, 18, 34)
1541147
Unavailable
14
RAIL ASM,RH,133" (RMK) (Incl. 1, 2, 8, 15, 16, 18, 34)
1540947
$339.99
14
RAIL ASM,LH,133" (RMK) (Incl. 1, 2, 8, 15, 16, 18, 34)
1540946
$269.55
14
RAIL,LH,121,XTRA 10 (Storm/SE) (Incl. 1, 2, 8, 15, 16, 18, 34)
1541146
$288.99
14
RAIL,RH,121,XTRA 10 (Storm/SE) (Incl. 1, 2, 8, 15, 16, 18, 34)
1541147
Unavailable
15
RIVET,(50)
7621501
$2.39
15
RIVET,(50)
7621501
$2.39
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
18
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
18
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
19
SPACER (Storm/SE)
5630399
$11.99
19
SPACER (Storm/SE)
5630399
$11.99
19
SPACER (Storm/SE)
5630399
$11.99
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
21
WHEEL, IDLER (Incl. 36-37)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-37)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-37)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-37)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-37)
1543018
$56.65
22
SPACER, WHEEL (RMK)
5333116
$7.99
22
SPACER, WHEEL (RMK)
5333116
$7.99
22
SPACER, WHEEL (RMK)
5333116
$7.99
23
BOLT(10) (Storm/SE)
7512538
$6.39
23
BOLT(10) (Storm/SE)
7512538
$6.39
23
BOLT(10) (Storm/SE)
7512538
$6.39
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
BOLT(10) (Storm/SE)
7512659
$7.99
26
LOCK WASHER(10) (Storm/SE)
7553201
$3.99
27
WASHER(10) (Storm/SE)
7555804
$3.99
27
WASHER(10) (Storm/SE)
7555804
$3.99
28
SPACER
5332786
$7.99
29
BOLT Substituted by 7515491 (Storm/SE)
7515433
$1.59
30
WASHER(10) (Storm/SE)
7555743
Unavailable
31
SPACER (Storm/SE)
5332787
Unavailable
32
ROLLER, SPRING (RMK)
5431366
$10.51
32
ROLLER,SPRING (Storm/SE)
5432170
Unavailable
32
ROLLER, SPRING (RMK)
5431366
$10.51
32
ROLLER,SPRING (Storm/SE)
5432170
Unavailable
33
BRACKET,BOGIE WHEEL (Storm/SE)
5130570
$48.56
34
BUMPER,SUSPENSION
5811097
Unavailable
34
BUMPER,SUSPENSION
5811097
Unavailable
35
BOLT(10)
7515175
$3.99
35
BOLT(10)
7515175
$3.99
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
37
BEARING (1 per Wheel)
3514303
$11.99
38
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
