PISTON and CRANKSHAFT Storm 0975782, Storm S.E. H975782, European Storm S.E (4937823782D003)

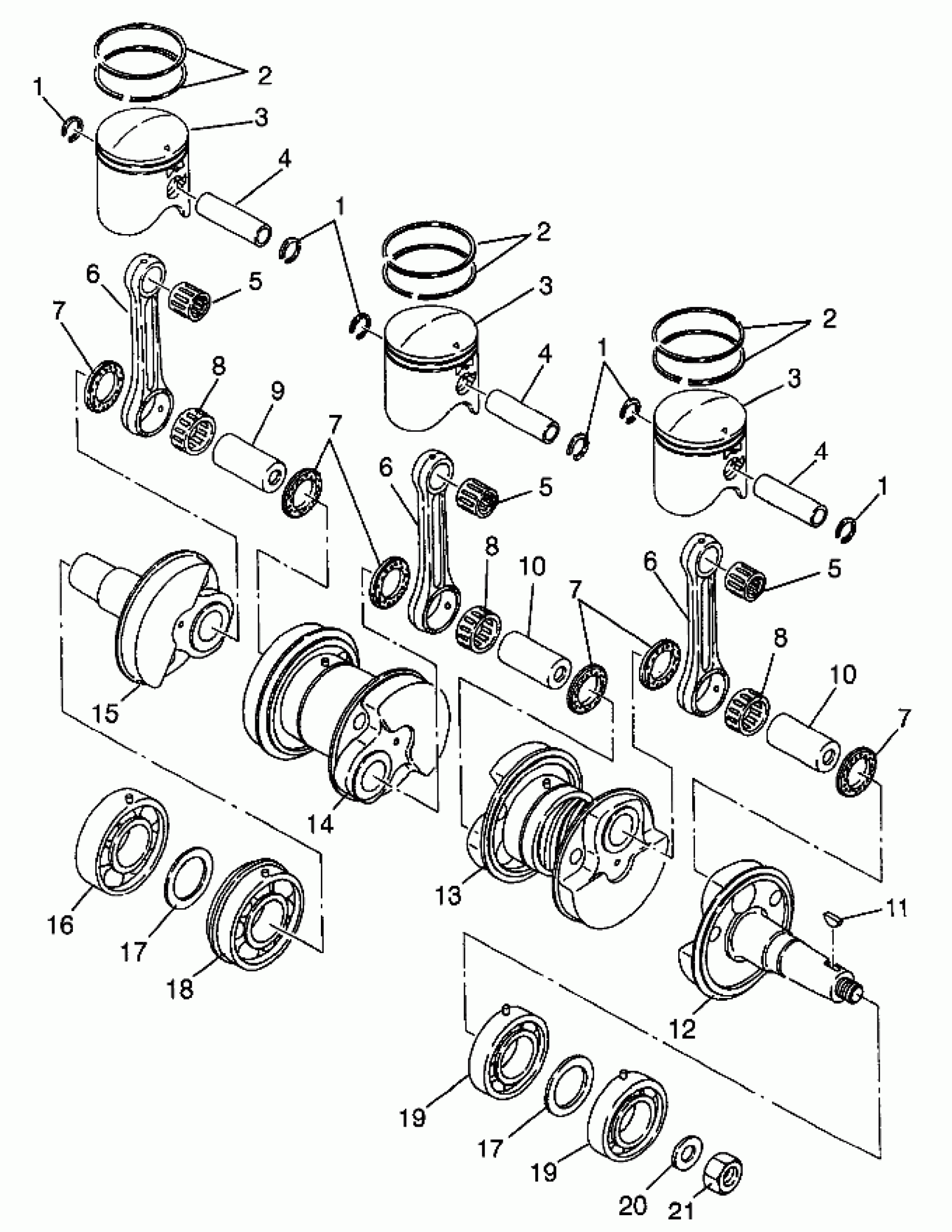

Polaris STORM - 0975782 PISTON and CRANKSHAFT Storm 0975782, Storm S.E. H975782, European Storm S.E (4937823782D003) Diagram
#
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
2
RING, PISTON
3085316
Unavailable
2
RING, PISTON
3085316
Unavailable
2
RING, PISTON
3085316
Unavailable
3
PISTON, STD.
3085313
Unavailable
3
PISTON, STD.
3085313
Unavailable
3
PISTON, STD.
3085313
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN, CRANK
3240085
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
11
KEY WOODRUFF
3081543
$12.94
12
CRANKSHAFT 1
3084538
Unavailable
12
CRANKSHAFT (Incl. 6-10, 12-19)
3085312
$999.99
13
CRANKSHAFT,MAG.SIDE (Mag) (Incl. 10)
3084540
$354.99
13
CRANKSHAFT,CTR. (Center) (Incl. 6-10, 14)
3085328
$226.99
14
CRANKSHAFT,PTO SIDE (PTO) (Incl. 9)
3084541
Unavailable
15
CRANKSHAFT 3
3084542
Unavailable
16
BEARING, BALL
3084546
Unavailable
17
SPACER
3240088
$10.39
17
SPACER
3240088
$10.39
18
BEARING, BALL
3084545
Unavailable
19
BEARING, BALL
3084544
Unavailable
19
BEARING, BALL
3084544
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
