FRONT TORQUE ARM Storm 0975782, Storm S.E. H975782, European Storm S.E. E97 (4937823782C003)

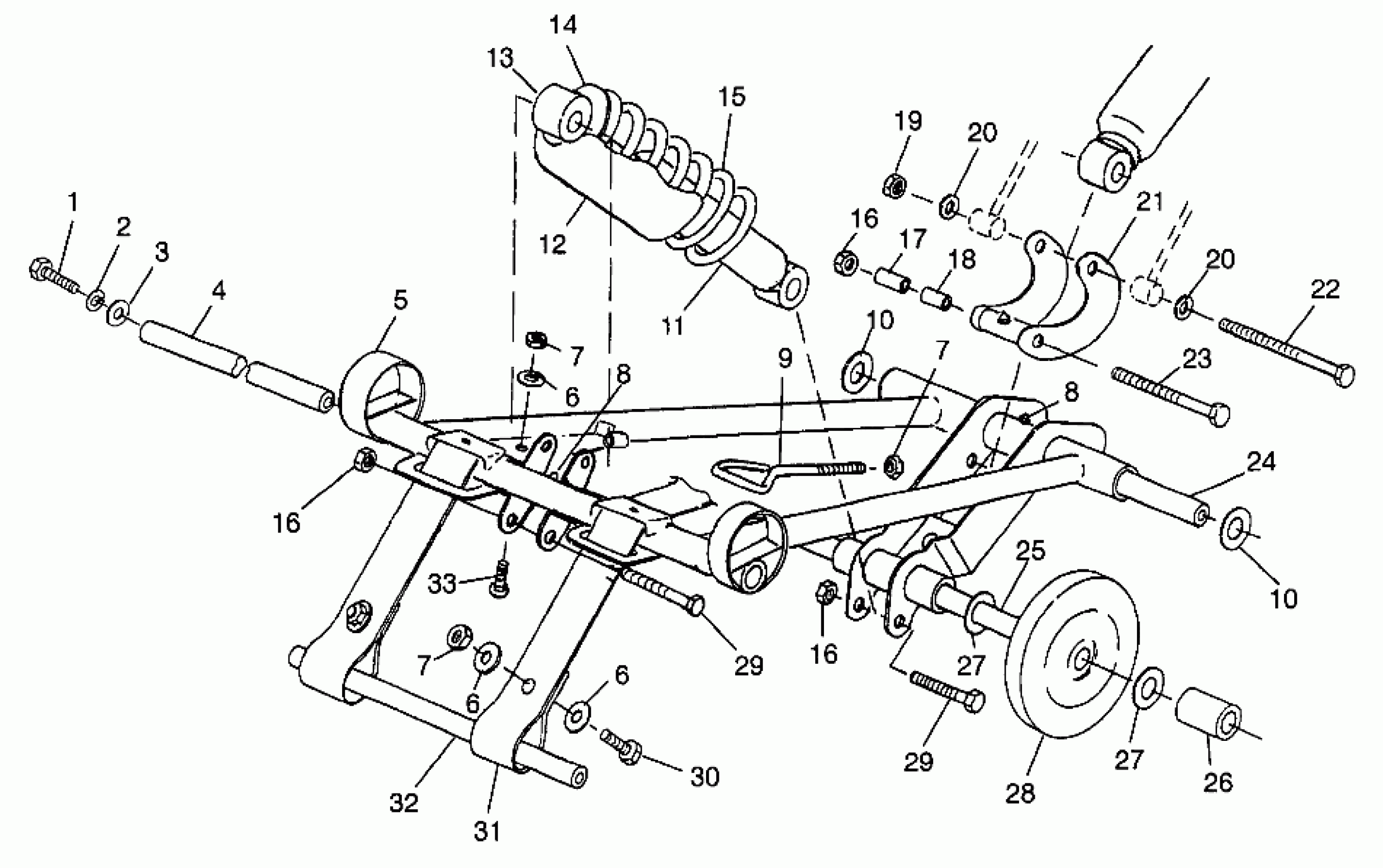

Polaris STORM - 0975782 FRONT TORQUE ARM Storm 0975782, Storm S.E. H975782, European Storm S.E. E97 (4937823782C003) Diagram
#
1
BOLT(10)
7515526
$1.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
Shaft
5131450
Unavailable
5
ARM,F.TORQUE,X-10 Substituted by 1541203-067
1541140-067
Unavailable
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
BOLT,EYE
7010050
Unavailable
10
WASHER(10)
7555893
$1.49
10
WASHER(10)
7555893
$1.49
11
RING, RETAINING(10)
7710424
$0.63
11
RETAINER, SPRING BODY
5020617
Unavailable
12
SHIELD-SPRING
5430671
$24.27
13
Shock, Front Track, Fox (See Pg. A39 For Details)
-------
Unavailable
14
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
15
SPRING,BLACK,COMP.
7041253-067
$95.22
16
NUT LOCK(10) (Storm/SE)
7542403
$3.99
16
NUT LOCK(10) (Storm/SE)
7542403
$3.99
16
NUT LOCK(10) (Storm/SE)
7542403
$3.99
17
SPACER (Storm/SE)
5333028
$1.59
18
BUSHING,PIVOT TUBE (Storm/SE)
5020561
$1.59
19
NUT LOCK(10) (Storm/SE)
7542411
$3.19
20
WASHER-.390X.750X.020-WAVE-Y (Storm/SE)
7555795
$1.49
20
WASHER-.390X.750X.020-WAVE-Y (Storm/SE)
7555795
$1.49
21
ARM,SHOCK (Storm/SE)
1540942-067
Unavailable
22
BOLT(10) (Storm/SE)
7515472
$2.39
23
BOLT(10) (Storm/SE)
7515438
$4.79
24
Shaft (See Pg. A28, Ref. 19)
-------
Unavailable
25
Shaft (See Pg. A28, Ref. 18)
-------
Unavailable
26
SPACER, OUTER
5332784
Unavailable
27
MACHINERY BUSHING(10)
7556301
$3.19
27
MACHINERY BUSHING(10)
7556301
$3.19
28
Asm., Bogie Wheel (See Pg. A29, Ref. 21)
-------
Unavailable
29
BOLT(10)
7515415
$1.49
29
BOLT(10)
7515415
$1.49
30
BOLT(10)
7515307
$3.99
31
STRAP,LIMITER,FRONT
5411045
Unavailable
32
Shaft, Pivot Arm (See Pg. A28, Ref. 17)
-------
Unavailable
33
BOLT(10)
7512377
$4.79
