FRONT SUSPENSION and SKI Storm 0975782, Storm SE H975782, European Storm SE (4937823782B003)

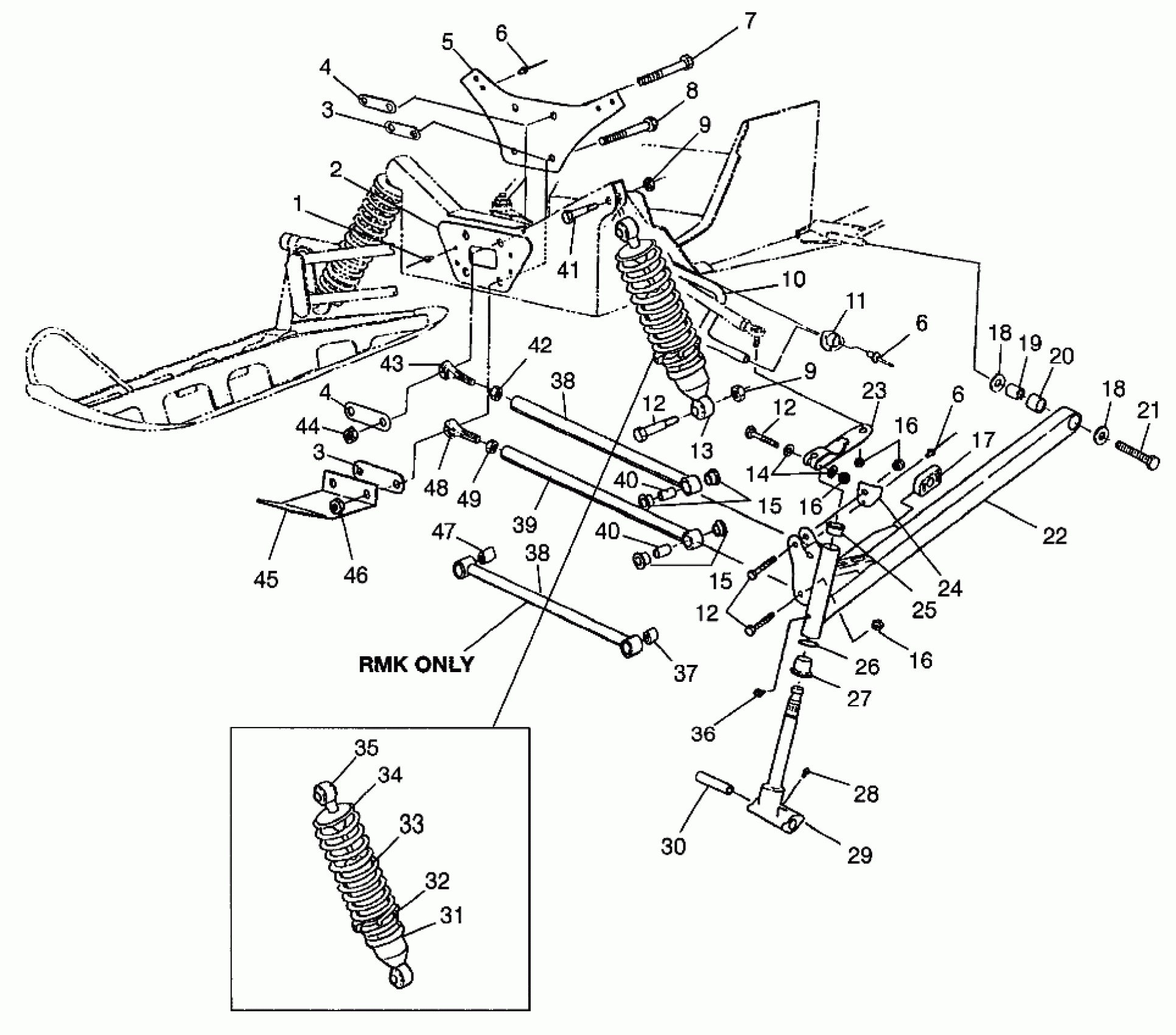

Polaris STORM - 0975782 FRONT SUSPENSION and SKI Storm 0975782, Storm SE H975782, European Storm SE (4937823782B003) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER BOTTOM (Storm/SE)
5211345
$12.99
3
STRAP,SPACER BOTTOM (Storm/SE)
5211345
$12.99
4
STRAP,SPACER TOP (Storm/SE)
5211344
$7.27
4
STRAP,SPACER TOP (Storm/SE)
5211344
$7.27
5
REINF,R.SHOCK MT.PLATE (RMK)
5241395-067
$3.46
6
RIVET(50) Substituted by 7661130
7661643
Unavailable
6
RIVET(50) Substituted by 7661130
7661643
Unavailable
6
RIVET(50) Substituted by 7661130
7661643
Unavailable
7
BOLT(10)
7512551
Unavailable
8
BOLT(10)
7512678
$19.99
9
NUT, NYLOC(10)
7542453
Unavailable
9
NUT, NYLOC(10)
7542453
Unavailable
10
BAR,SWAY,BLK, (Storm/SE)
5224742-067
Unavailable
10
BAR,SWAY (RMK)
5224757-067
Unavailable
11
BUSHING,SWAY BAR (RMK)
5432412
$15.99
11
DESC NOT_AVAILABLE (Storm/SE)
5222038
Unavailable
12
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
BOLT(10) Substituted by 7517583
7515491
Unavailable
13
SHOCK,GAS,IFP,IFS
7041540
Unavailable
14
WASHER(10) Substituted by 7555832
7555851
Unavailable
15
BUSH,RAD.ROD PIVOT,OUT. (Storm/SE)
5431486
$3.19
15
BUSH,RAD.ROD PIVOT,OUT. (Storm/SE)
5431486
$3.19
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
SLIDE,SWAYBAR,9/16
5432332
$32.37
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
21
BOLT(10)
7512557
$7.60
22
ARM,TRLG,LH Substituted by 2201319 (Incl. 19, 20)
1822366
$344.99
22
ARM,TRLG,RH Substituted by 2201320 (Incl. 19, 20)
1822367
Unavailable
23
ARM,STRG,BLK
5241560-067
Unavailable
24
STOP,LH,STRG,BLK.
5241569-067
$7.27
24
STOP,RH,STRG,BLK.
5241570-067
$7.27
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
29
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
30
BUSHING,PIVOT,(10)
5010158
$19.99
31
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
32
RING,SPRING PRELOAD ADJ. (Adjustable)
5431734
$52.60
33
SPRING,COMPRESSION (Storm/SE)
7041575-067
$52.60
33
SPRING,COMP,IFS (RMK)
7041574-067
Unavailable
34
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
35
Shock, Fox IFS (See Pg. for Details)
-------
Unavailable
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
BUSHING,RAD.ROD PIVOT,3/8 (RMK)
5411099
$11.99
38
ROD,RAD,UP.,FIXED (RMK)
1822420
$119.99
38
ROD,RAD,UPPER,BLK (Storm/SE)
1822412-067
Unavailable
38
ROD,RAD,UP.,FIXED (RMK)
1822420
$119.99
38
ROD,RAD,UPPER,BLK (Storm/SE)
1822412-067
Unavailable
39
ROD,RAD,LOWER,BLK (RMK)
1822444-067
$60.70
39
ROD,RAD,LOWER,BLK (Storm/SE)
1822410-067
Unavailable
40
BUSHING-RADIUS ROD,(10) (Storm/SE)
5010127
$7.99
40
BUSHING-RADIUS ROD,(10) (Storm/SE)
5010127
$7.99
41
BOLT(10) Substituted by 7515415
7515515
Unavailable
42
NUT JAM(10)
7542520
$2.39
43
ROD END
7060163
Unavailable
44
NUT, LOCK,(10)
7542503
$10.39
45
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
46
NUT FLEX,(10)
7542703
Unavailable
47
BUSHING,PIVOT,7/16 (RMK)
5411095
$15.99
48
ROD END,RH Substituted by 7061011
7060156
Unavailable
49
NUT-JAM(10)
7542711
$2.39
