ENGINE MOUNTING Storm 0975782, Storm S.E. H975782, European Storm S.E. E975 (4937823782C008)

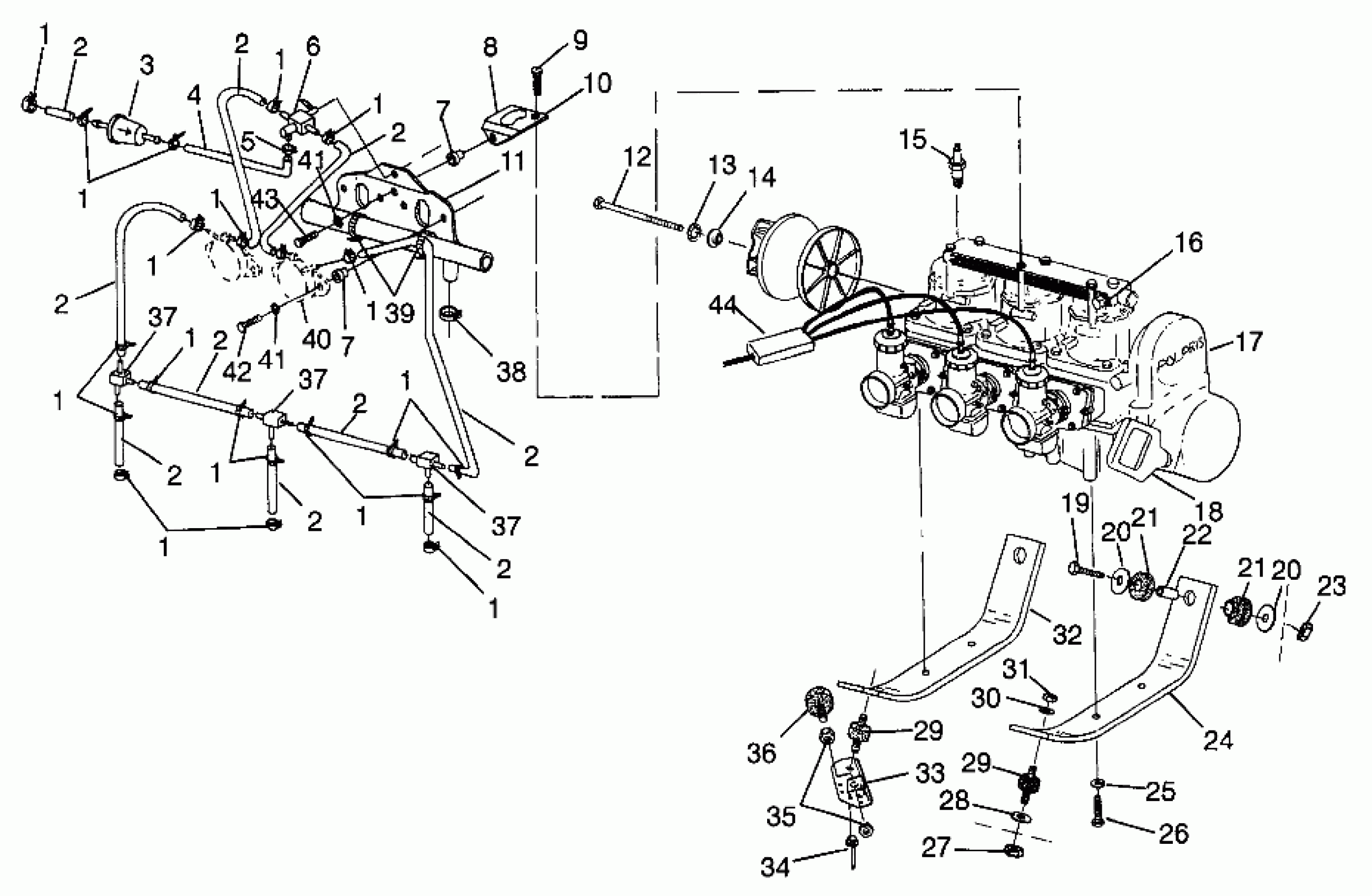

Polaris STORM - 0975782 ENGINE MOUNTING Storm 0975782, Storm S.E. H975782, European Storm S.E. E975 (4937823782C008) Diagram
#
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
3
FILTER FUEL,(10)
2530008
$4.84
4
FUEL LINE, 5 FT.
8450044-153
Unavailable
5
CLAMP,SPRING,(10)
7080534
$1.59
6
VALVE,FUEL SHUT-OFF
7051010
Unavailable
7
NUT-WELL(10)
7541923
$5.59
7
NUT-WELL(10)
7541923
$5.59
8
DECAL,FUEL SHUT-OFF
7073869
Unavailable
9
BOLT&WASHER
3083729
$3.49
10
BRKT,BOOST-TUBE,BLK.
5240343-067
Unavailable
11
TUBE,BOOST
5431678
$57.99
12
BOLT(10)
7512565
$19.99
13
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
14
WASHER,CLUTCH RETAINER
5010278
Unavailable
15
SPARKPLUG(8)
3070165
$3.99
16
Thermo Switch (93 A42, Ref. 12)
-------
Unavailable
17
ENG.(S.B.)EC80PL-04 [No Longer Available] (RMK) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorizati
3085229
Unavailable
17
ENG.(S.B.)EC80PL-04/05 Substituted by 3085230 (Storm, SKS)
3085477
Unavailable
18
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
19
SCREW(10)
7512530
$5.59
20
WASHER(10)
7555740
$1.59
20
WASHER(10)
7555740
$1.59
21
MOUNT, ENGINE
5410390
Unavailable
21
MOUNT, ENGINE
5410390
Unavailable
22
SPACER, (MTR.MT.)
5332778
Unavailable
23
NUT,FLANGE(10)
7542522
$5.59
24
PLATE,RH,ENGINE
5240731
Unavailable
25
WASHER LOCK(10)
7553101
$3.99
26
BOLT(10)
7512575
Unavailable
27
NUT FLEX LOC,(10)
7542402
$6.39
28
WASHER,FLAT(10)
7555915
$3.19
29
MOUNT,ENG.
3110061
$84.99
29
MOUNT,ENG.
3110061
$84.99
30
WASHER(10) Substituted by 7555806
7555720
$0.79
31
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
32
PLATE,LH,ENGINE
5240730
Unavailable
33
LIMITER,TORQUE
1012277-067
Unavailable
34
RIVET-3/16-.090-.290
7661637
$1.49
35
NUT,HEX(10)
7542414
$4.79
36
STOP,TORQUE,COARSE
3110056
Unavailable
37
FITTING, TEE ,(10)
7052089
$1.49
37
FITTING, TEE ,(10)
7052089
$1.49
37
FITTING, TEE ,(10)
7052089
$1.49
38
CLAMP(10)
7080533
$3.99
39
STRAP, BLK
7080272
Unavailable
40
Fuel Pump (See Pg. A47, Ref. 1)
-------
Unavailable
41
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
41
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
42
SCREW(10)
7512222
$2.39
43
SCREW(10)
7512279
$1.49
44
CABLE,THROTTLE,W/OIL
7080623
Unavailable
