CYLINDER and MANIFOLD Storm 0975782, Storm S.E. H975782, European Storm S.E (4937823782D001)

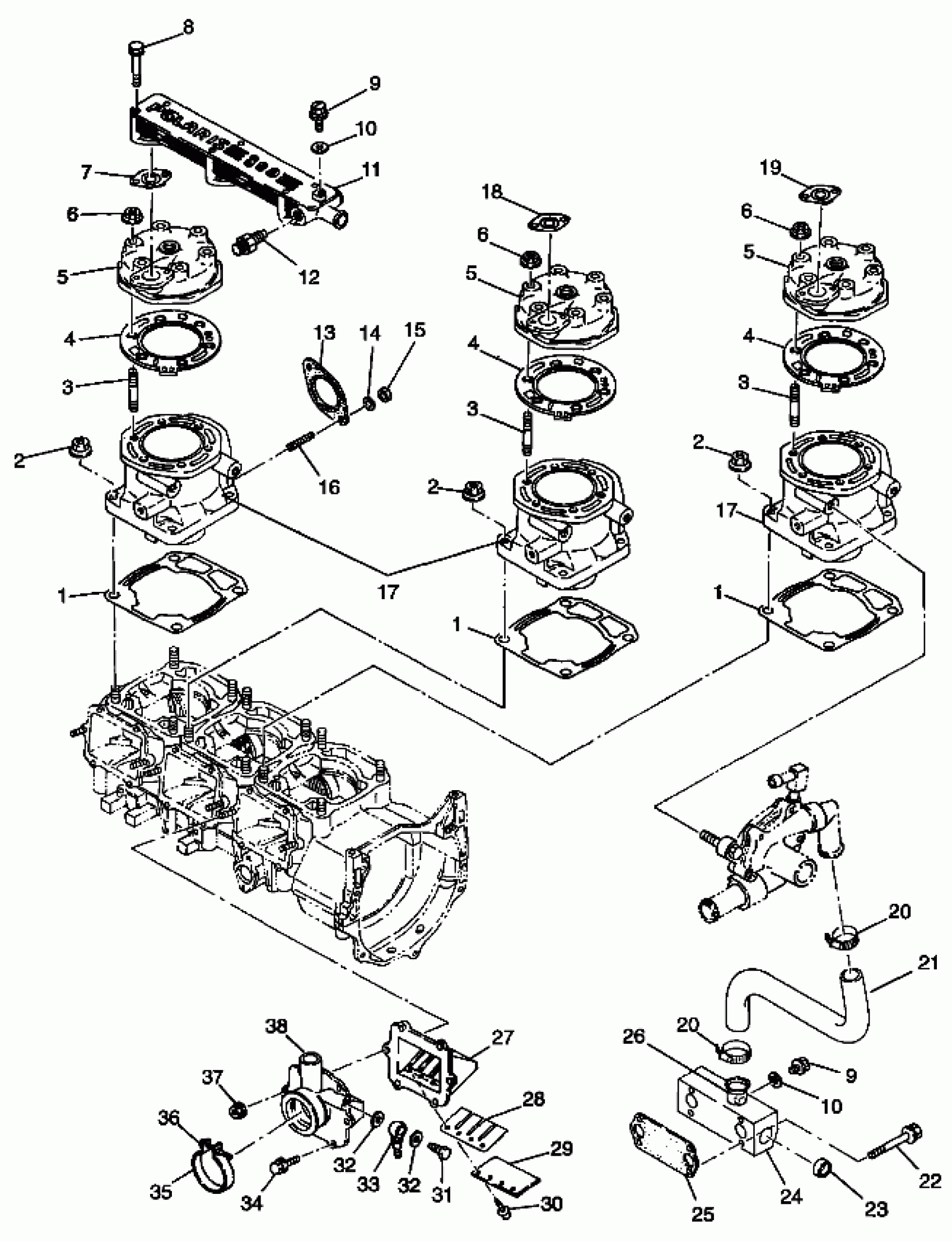

Polaris STORM - 0975782 CYLINDER and MANIFOLD Storm 0975782, Storm S.E. H975782, European Storm S.E (4937823782D001) Diagram
#
1
GASKET, CYLINDER
3084525
Unavailable
1
GASKET, CYLINDER
3084525
Unavailable
1
GASKET, CYLINDER
3084525
Unavailable
2
NUT-FLANGE(10)
3082911
$1.99
2
NUT-FLANGE(10)
3082911
$1.99
2
NUT-FLANGE(10)
3082911
$1.99
3
STUD
3084645
$6.63
3
STUD
3084645
$6.63
3
STUD
3084645
$6.63
4
GASKET,HEAD
3085310
$16.95
4
GASKET,HEAD
3085310
$16.95
4
GASKET,HEAD
3085310
$16.95
5
HEAD,CYL,RED,SINGLE (Unpainted) NOTE: Order Polaris "P" Number (P093 Fire Red) from Midwest Industrial Coatings (612-934-8252). Mix as directed.
3085502
$180.94
5
HEAD,CYL,RED,SINGLE (Unpainted) NOTE: Order Polaris "P" Number (P093 Fire Red) from Midwest Industrial Coatings (612-934-8252). Mix as directed.
3085502
$180.94
5
HEAD,CYL,RED,SINGLE (Unpainted) NOTE: Order Polaris "P" Number (P093 Fire Red) from Midwest Industrial Coatings (612-934-8252). Mix as directed.
3085502
$180.94
6
NUT-FLANGE(10)
3082910
$2.39
6
NUT-FLANGE(10)
3082910
$2.39
6
NUT-FLANGE(10)
3082910
$2.39
7
PLATE 3,(O.W.M.) (PTO Side)
3084655
Unavailable
8
BOLT&WASHER
3083729
$3.49
9
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
9
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
10
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
10
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
11
MANIFOLD,WTR.OUT,FIRE RED (Unpainted)
3085499
$149.99
12
SENSOR,TEMPERATURE (SE) (Euro SE)
4110179
Unavailable
12
SWITCH,THERMO. (RMK) (Storm)
3084651
Unavailable
13
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
14
WASHER LOCK ,(10)
3080530
$3.19
15
NUT(10)
3080285
Unavailable
16
STUD,(10)
3085326
Unavailable
17
CYLINDER (Incl. 3, 16)
3085325
$569.99
17
CYLINDER (Incl. 3, 16)
3085325
$569.99
18
PLATE 2,(O.W.M.) (Center)
3084654
Unavailable
19
PLATE 1 (Mag. Side)
3085311
Unavailable
20
CLAMP, HOSE
3083394
Unavailable
20
CLAMP, HOSE
3083394
Unavailable
21
HOSE, MAIN
3084665
Unavailable
22
BOLT(10)
3082030
$3.97
23
PLUG,CYL.HEAD
3084529
Unavailable
24
MANI.,INLET WATER (Incl. 23, 26)
3084528
Unavailable
25
GASKET,WATER MANI.INLET
3084531
$0.75
26
PIPE 3,WATER
3084530
Unavailable
27
VALVE ASM,REED (Incl. 28-30)
3084536
$95.19
28
VALVE, REED
3084563
$19.83
29
Stopper
3084564
$19.03
30
SCREW, REED
3084565
$3.29
31
BOLT-BANJO
3083137
Unavailable
32
WASHER(10) Substituted by 7555998
3083138
Unavailable
32
WASHER(10) Substituted by 7555998
3083138
Unavailable
33
VALVE, CHECK
3083894
Unavailable
34
Bolt, Flange
3084126
Unavailable
35
BAND ASM. (Incl. 36)
3083166
$19.84
36
SCREW,(10)
3081497
$2.39
37
NUT, FLANGE(10)
3083856
$2.39
38
ADAPTER, COMPL.
3084652
Unavailable
