CARBURETOR Storm 0975782, Storm S.E. H975782, European Storm S.E. E975782, (4937823782D005)

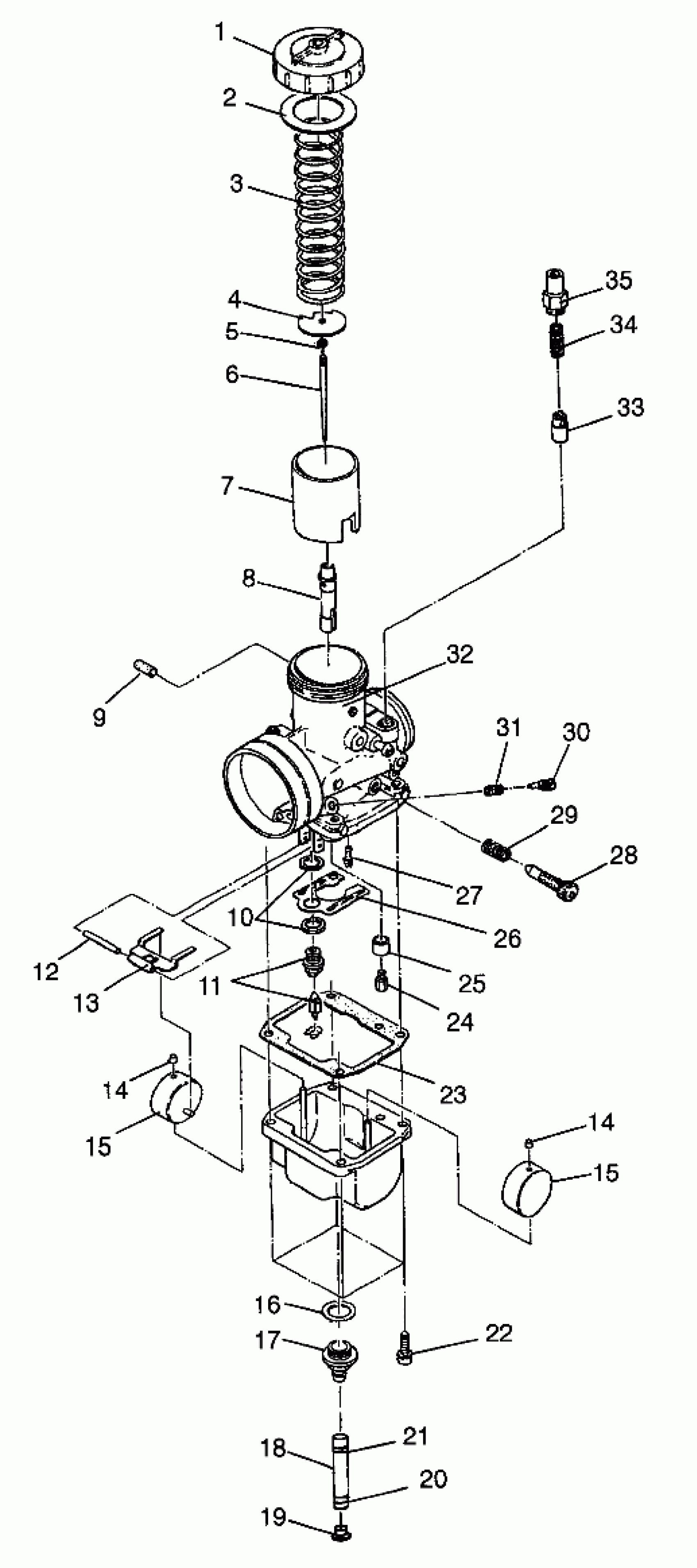

Polaris STORM - 0975782 CARBURETOR Storm 0975782, Storm S.E. H975782, European Storm S.E. E975782, (4937823782D005) Diagram
#
1
TOP (Incl. 2)
3130061
Unavailable
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
JET NEEDLE,(6CGY6-3) (6CGY6-3)
3130652
Unavailable
7
VALVE, THROTTLE,2.5 (2.5) (RMK)
3130454
Unavailable
7
VALVE,THROTTLE,(3.0) (3.0) (Storm/SE)
3130352
Unavailable
8
JET,NEEDLE,(Q-0) (Q-0) 247 (Storm/SE)
3130414
Unavailable
8
NEEDLE JET,(P-6)247 (P-6) 247 (RMK)
3130655
Unavailable
9
CAP
3130479
$14.56
10
WASHER(10)
3130047
$4.84
11
NEEDLE VALVE ASM. (1.5)
3130598
Unavailable
12
PIN, FLOAT
3130361
$8.89
13
ARM,FLOAT
3130048
Unavailable
14
CAP,(10)
3130237
$4.03
14
CAP,(10)
3130237
$4.03
15
FLOAT ASM
3130021
$40.46
15
FLOAT ASM
3130021
$40.46
16
O RING
3130239
Unavailable
17
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
18
FUEL LINE, 5 FT.
8450045-153
Unavailable
19
PLUG,TRAP
5431893
$12.94
20
CLAMP,HOSE(10)
7080544
Unavailable
21
CLAMP,SPRING,(10)
7080534
$1.59
22
SCREW
3130056
$3.19
23
GASKET,FLOAT CHAMBER
3130236
$12.13
24
JET,MAIN HX.HD#300(10) (#300) (1) (RMK) (PTO Side)
3130133
$7.27
24
JET,MAIN HX.HD#290(10) (#290) (2) (RMK) (Center)
3130132
$7.27
24
JET,MAIN,HX.HD#420(10) (#420) (1) (Storm/SE) (MAG Side)
3130142
$7.27
24
JET,MAIN,#410(10) (#410) (1) (Storm/SE) (PTO Side)
3130599
$7.27
24
JET,MAIN,HX.HD#400(10) (#400) (2) (Storm/SE) (Center)
3130141
$7.27
24
JET,MAIN,HX.HD#310(10) (#310) (1) (RMK) (MAG Side)
3130134
$7.27
25
RING,CARB
3130232
Unavailable
26
PLATE
3130243
Unavailable
27
JET,PILOT,#50(10) (#50) (Storm, SE)
3130629
$7.27
27
JET,PILOT,#55(10) (#55) (RMK)
3130070
$8.89
28
SCREW,THROTTLE STOP
3130009
$19.99
29
SPRING,THROTTLE ADJ.
3130010
$8.89
30
SCREW,AIR
3130011
$19.99
31
SPRING,AIR ADJUST
3130012
$8.89
32
CARBURETOR #3 (Incl. 1-17, 22, -35) (PTO Side) (Storm/SE)
3130714
Unavailable
32
CARBURETOR #3 (PTO Side) (RMK) (Incl. 1-17, 22-35)
3130717
Unavailable
32
CARBURETOR #1 (MAG Side) (RMK) (Incl. 1-17, 22-35)
3130715
Unavailable
32
CARBURETOR #1 (MAG Side) ( Storm/SE) (Incl. 1-17, 22-35)
3130712
Unavailable
32
CARBURETOR #2 (Center Side) (RMK) (Incl. 1-17, 22-35)
3130716
Unavailable
32
CARBURETOR #2 (Center Side) (Storm/SE) (Incl. 1-17, 22-35)
3130713
Unavailable
33
PLUNGER ASM, STARTER
3130328
$32.37
34
SPRING,PLUNGER
3130006
$8.89
35
HOLDER,GUIDE Note: All qty's. are per Carb.
3130199
$28.32
