TUNNEL ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro (4929012901A006)

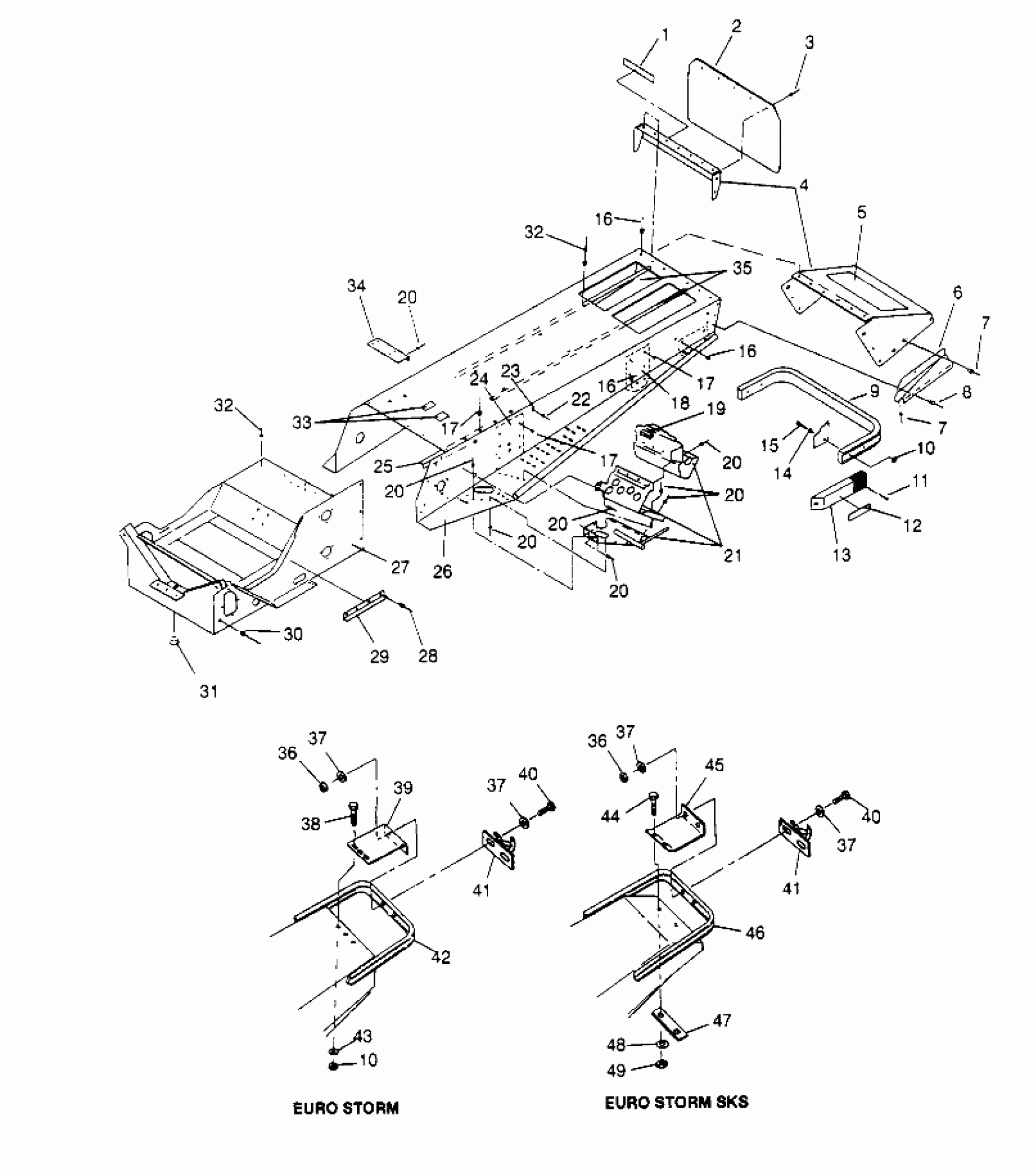

Polaris STORM - 0950782 TUNNEL ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro (4929012901A006) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
FLAP,SNOW,15D Substituted by 5432149
5431844
Unavailable
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL-BACK,BLK. (Storm)
5240599-067
Unavailable
4
CLOSE-OFF ASM,REAR,BLK. Substituted by 1012232-067 (SKS
1011694-067
Unavailable
4
PANEL,CLOSE-OFF,REAR (SKS PT)
1012299-067
$69.84
5
DECAL,"STORM SKS"CLOSE-OFF (SKS)
7074497
Unavailable
6
SKIRT,LH,SNOW,BLK. (SKS)
5431627-070
$26.98
6
SKIRT,RH,SNOW,BLK. (SKS)
5431645-070
$31.35
7
RIVET(50) (SKS Only)
7621472
$1.49
7
RIVET(50) (SKS Only)
7621472
$1.49
8
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
9
BUMPER,REAR,BLK. (Storm)
5224334-067
Unavailable
9
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
10
NUT-LOCK(10)
7542122
$1.49
10
NUT-LOCK(10)
7542122
$1.49
11
SCREW(10)
7511863
$1.99
12
REFLECTOR RED
2670070
$9.91
13
CAP, BUMPER, BLK.
5430930-070
Unavailable
14
WASHER(10)
7558301
$1.49
15
BOLT(10)
7512240
$3.99
16
RIVET ,(50)
7661829
Unavailable
16
RIVET ,(50)
7661829
Unavailable
16
RIVET ,(50)
7661829
Unavailable
17
RIVET,(50)
7661825
$1.49
17
RIVET,(50)
7661825
$1.49
17
RIVET,(50)
7661825
$1.49
18
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
18
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
18
BRKT,RH,R.SUSP. (Storm)
1011858-067
Unavailable
18
BRKT,LH,R.SUSP (Storm)
1011857-067
Unavailable
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
FOOTREST ASM, LH
1011861
Unavailable
21
FOOTREST ASM,RH,BLK.
1011892
Unavailable
22
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
23
SNAP-MALE(10)
7080227
Unavailable
24
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
25
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
26
TUNNEL, BLK. Substituted by 1012296 (Storm) (Incl. 4, 18, 24, 25)
1012297
Unavailable
26
TUNNEL ASM. (PT) (Incl. 4, 18, 24, 25)
1012303
$366.65
26
TUNNEL,SKS,BLK. (SKS) (Incl. 4, 18, 24, 25)
1012296
Unavailable
27
BULKHEAD, BLK.
1012260-067
$396.83
28
RIVET(50)
7621452
$1.49
29
GUARD,ADAPTER GUIDE
5222857
$12.94
30
PLUG, HOLE(10)
7080512
$2.63
31
PLUG-HOLE
7080398
$4.84
32
RIVET-3/16-.090-.290
7661637
$1.49
32
RIVET-3/16-.090-.290
7661637
$1.49
33
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
34
BRKT, TOOL BOX
5220973
Unavailable
35
MOUNT,WEAR STRIP (Storm, SKS)
5131009
Unavailable
36
NUT-HEX-3/8-16 A ZTB NYL (Euro)
7542451
$1.49
36
NUT-HEX-3/8-16 A ZTB NYL (Euro)
7542451
$1.49
37
WASHER(10) (Euro)
7555806
$1.49
37
WASHER(10) (Euro)
7555806
$1.49
37
WASHER(10) (Euro)
7555806
$1.49
37
WASHER(10) (Euro)
7555806
$1.49
38
BOLT(10) (Euro)
7512193
$2.39
39
PLATE,HITCH MT,BLK. (Euro)
5220942-067
$9.11
40
BOLT(10) (Euro)
7515521
$3.99
40
BOLT(10) (Euro)
7515521
$3.99
41
Asm., Hitch (Euro)
-------
Unavailable
41
Asm., Hitch (Euro)
-------
Unavailable
42
BUMPER,REAR,BLK. (Euro)
5224347-067
Unavailable
43
WASHER,WROUGHT(10) (Euro)
7558302
$1.59
44
BOLT(10) (Euro)
7512377
$4.79
45
BRKT, HITCH (Euro)
5222605-067
$11.51
46
BUMPER,REAR,SCAND.,BLK. (EURO)
5224421-067
$21.43
47
PLATE, BACKING (Euro)
5211122-067
Unavailable
48
WASHER-.344X.688X.063 FL-Y (Euro)
7558402
$1.49
49
NUT-5/16-18 NYLOK-Y (Euro)
7542324
$1.49
